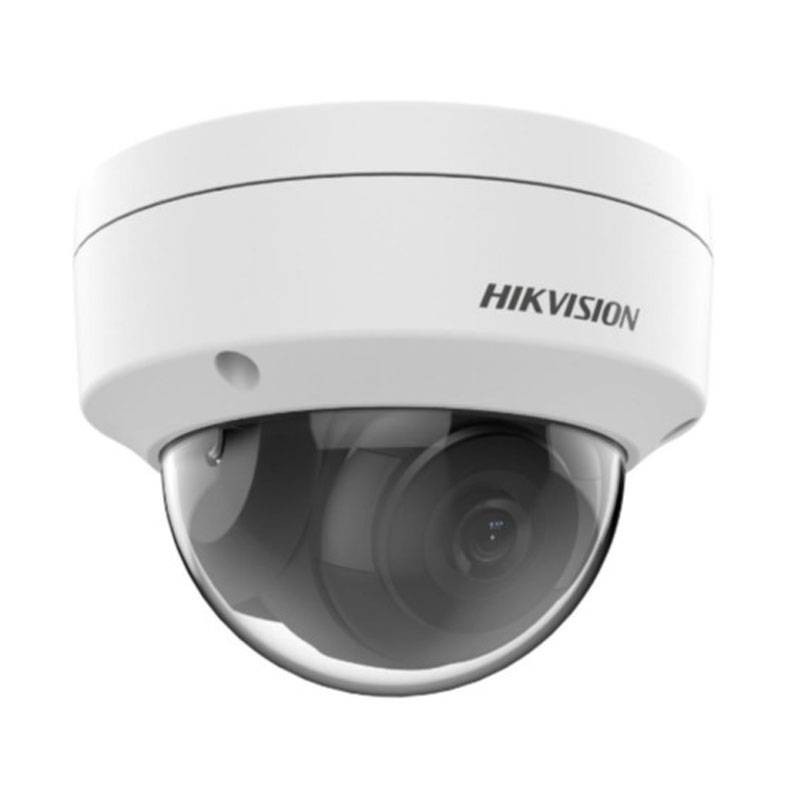

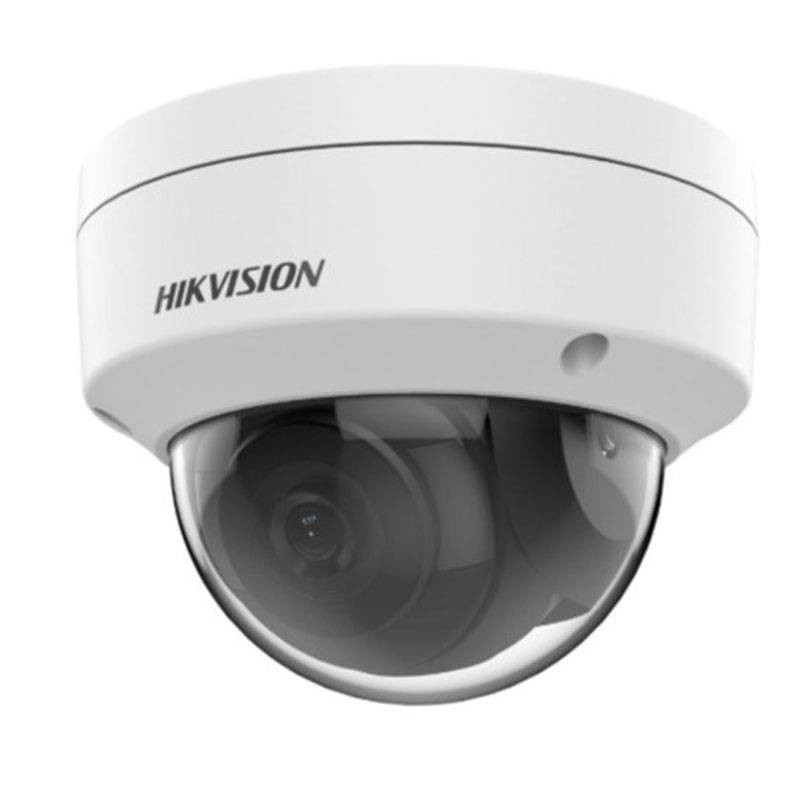

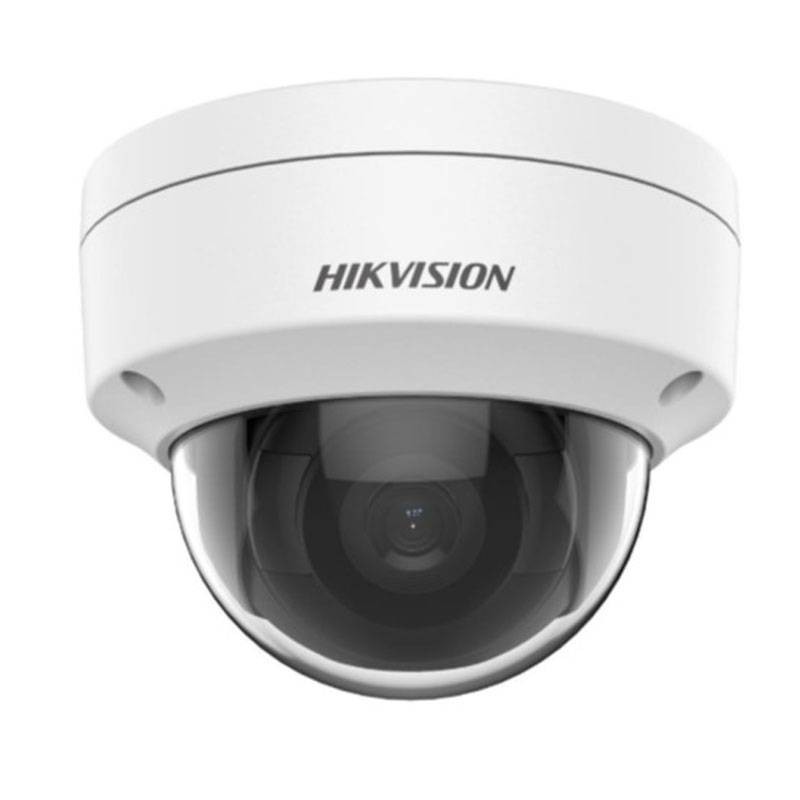

Hikvision DS-2CD1183G0-I 4K IR 30m IP67 IP Dome IP Camera 311317857
HIK 311317857
6931847140359
Hikvision DS-2CD1183G0-I IP dome camera with fixed lens and IR up to 30 m. Vandal-proof, H.265+ compression, WDR 120 dB, ideal for indoor and outdoor environments, with the following features:
-
Resolution: 4K Ultra HD 8MP (3840×2160)
-
Video compression: H.265+ for bandwidth saving and storage
-
Infrared: EXIR 2.0 up to 30 meters
-
WDR 120 dB: For sharp backlit images
-
Fixed lens: 2.8 mm, wide view
-
Degree of protection: IP67
€118.74
Items Available: 43
: 18
Frequently bought together
Hikvision ultra-high resolution 4K surveillance camera
The Hikvision DS-2CD1183G0-I network camera offers detailed images thanks to its 8-megapixel 4K resolution. It is ideal for environments that require high recording quality, such as entrances, commercial areas, parking lots and public spaces. The 1/2.8 CMOS sensor with EXIR 2.0 technology ensures visibility even in the dark up to 30 meters.
Efficiency and savings with H.265+
With advanced H.265+ compression, this camera greatly reduces bandwidth and storage space occupancy while maintaining excellent video quality. It also supports H.264+ and MJPEG for maximum compatibility.
Full protection and ruggedness
Made of metal and high-strength plastic materials, the DS-2CD1183G0-I is certified IK10 (vandal-proof) and IP67 (dust and water resistance), making it suitable for harsh outdoor environments.
Clear vision in all conditions
With 120 dB WDR, the camera handles backlit areas or areas with high brightness contrasts best. BLC, HLC and 3D DNR technologies improve video quality in critical lighting conditions.
Easy management and advanced security
Supports ONVIF protocol and can be integrated into existing video surveillance systems. Includes security features such as encrypted password access, IP filtering, HTTPS, and advanced authentications. It is compatible with software such as iVMS-4200 and Hik-Connect app for remote management.
Recommended Applications.
Outdoor and indoor video surveillance
Security for stores, offices, parking lots, apartment buildings
Integration into existing IP and ONVIF installations
Security and reliability
-
Advanced user authentication (digest, HTTPS, WSSE)
-
Password protection, TLS 1.2, security logs
-
Privacy masking and data encryption
Technical Specifications Hikvision 4K Camera
Camera
| Image sensor | 1/2.8-inch progressive scan CMOS |
|---|---|
| Maximum resolution | 3840 × 2160 |
| Minimum illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter speed | 1/3 s 1/100,000 s |
| Day and night | IR cut filter |
| Angle adjustment | Pan: 0°355°, Tilt: 0°75° |
Lens
| Lens type | Fixed focal length: 2.8 mm or 4 mm |
|---|---|
| Focal length / Field of view | 2.8 mm: H 108°, V 60°, D 127° 4 mm: H 86°, V 46°, D 102° |
| Lens mount | M12 |
| Iris | Fixed |
| Aperture | F2.0 |
Illuminator
| Supplementary light type | IR |
|---|---|
| Illumination distance | Up to 30 meters |
| Intelligent light | Yes |
| IR Probe Length | 850 nm |
Video
| Main stream (50 Hz) | 12.5 fps (3840 × 2160), 20 fps (2592 × 1944), 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|---|
| Main stream (60 Hz) | 15 fps (3840 × 2160), 20 fps (2592 × 1944), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream (50 Hz) | 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub-stream (60 Hz) | 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video compression | Main: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
| Video bit rate | 32 Kbps to 16 Mbps |
| H.264 type | Basic/main/high profile |
| Type H.265 | Main profile |
| Bit rate control | CBR / VBR |
| Region of interest (ROI) | 1 fixed region (main stream only) |
Network
| Security | Password protection, complex password, HTTPS encryption, watermarking, IP address filtering, basic authentication and digest for HTTP/HTTPS, WSSE authentication and digest for ONVIF, RTP/RTSP over HTTPS, security audit log, TLS 1.2, host authentication (MAC address) |
|---|---|
| Simultaneous live display | Up to 6 channels |
| API | ONVIF (S profile), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, SMTP |
| User/Host | Up to 32 users (Administrator, Operator, User) |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Live with plug-ins: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
| Wide Dynamic Range (WDR) | 120 dB |
|---|---|
| Signal-to-noise ratio | ≥ 52 dB |
| Day/Night switch | Day, Night, Auto, Program |
| Image enhancement | BLC, HLC, 3D DNR |
| Image settings | Rotation, saturation, brightness, contrast, sharpness, gain, white balance modes adjustable via client software or web browser |
| Privacy Mask | 4 regions of privacy mask |
Interface
| Ethernet port | RJ45 10/100M self-adaptive |
|---|
Events
| Events supported | Motion, video tampering, exceptions |
|---|
General
| Energy | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm plug PoE: 802.3af, Class 3, 3657 V, 0.20,15 A, max. 6.5 W |
|---|---|
| Material | Metal and plastic |

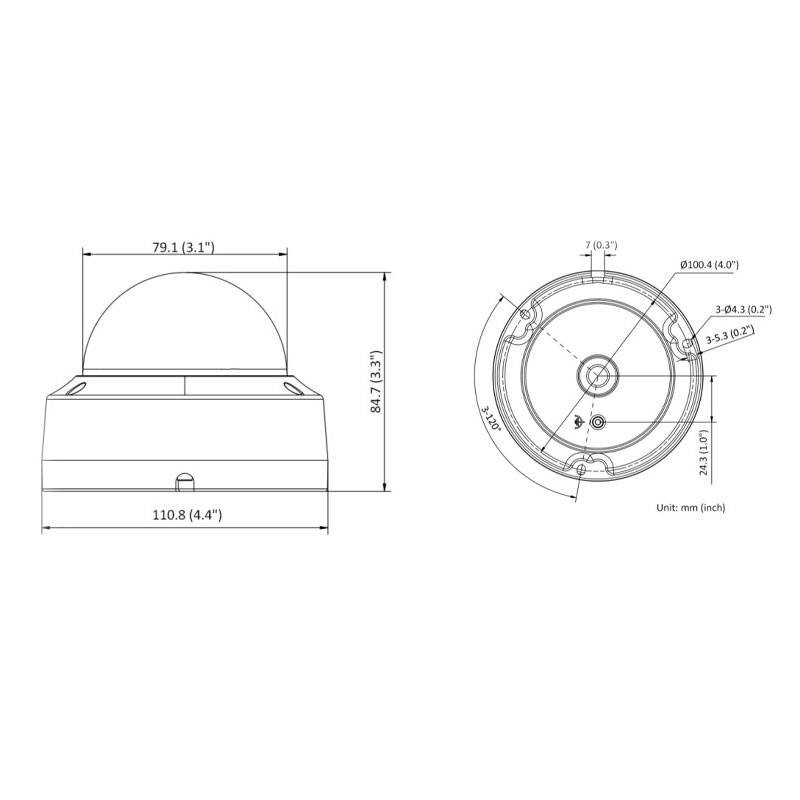

| Size | Ø110.8 mm × 84.7 mm (Ø4.4" × 3.3") |
| Package size | 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3") |
| Weight | About 520 g (1.1 lb) |
| With package weight | Approx. 720 g (1.6 lb) |
| Storage conditions | -30 °C to 60 °C, humidity ? 95% (no condensation) |
| Operating conditions | -30 °C to 60 °C, humidity ? 95% (no condensation) |
| Language | English, Ukrainian |
| General function | Anti-flicker, heartbeat, mirror, password protection, password reset by e-mail |
Approval
| Electromagnetic compatibility | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032:2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014) RCM (AS/NZS CISPR 32:2015) IC (ICES-003: Number 7) KC (KN32:2015, KN35:2015) |
|---|---|
| Safety | UL (UL 62368-1) CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) BIS (IS 13252 (Part 1):2010 / IEC 60950-1:2005) |
| Environment | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) REACH (Regulation (EC) No. 1907/2006) |
| Protection | IP67 (IEC 60529:2013) IK10 (IEC 62262:2002) |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 8MP (4K)
3840×2160
