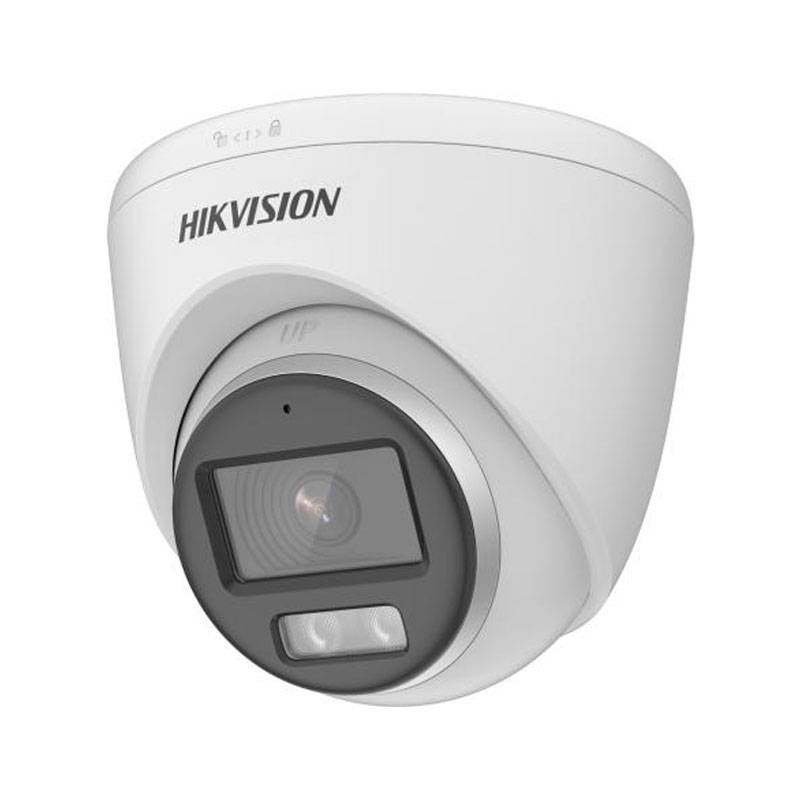

Hikvision Turret Camera DS-2CE72KF0T-FS IP 3K 2.8mm 300614820
HIK 300614820
6941264080466
Turret Hikvision ColorVu 3K DS-2CE72KF0T-FS color vision H24, TVI camera with color night vision and built-in microphone. Very high quality images even in the dark.
-
3K resolution (2960 × 1665) for ultra-sharp images
-
2.8 mm fixed focal length lens
-
ColorVu 24/7 color night vision with F1.0 aperture
-
Built-in microphone with coaxial audio transmission
-
White light up to 40 meters for advanced nighttime illumination
-
Multiple compatibility: TVI, AHD, CVI, CVBS
-
IP67 degree of protection ideal for outdoor use
Mounting accessories to be purchased separately:
-
Hikvision DS-1272ZJ-110-TRS wall mounting bracket 302700373
-
Hikvision DS-1275ZJ-S-SUS pole mounting bracket for cameras 302702337
-
Hikvision Junction Box bracket for bullet cameras White 302700579
€103.18
Items Available: 1
Frequently bought together
Hikvision ColorVu 3K Turret Camera DS-2CE72KF0T-FS
Color night vision with ColorVu technology
With ColorVu technology and F1.0 aperture, the DS-2CE72KF0T-FS camera captures color images even in complete darkness. The built-in white light illuminates up to 40 meters, providing crisp and continuous 24/7 surveillance without the need for traditional IR LEDs.
Optical and video technical details
Equipped with a 2.8 mm fixed focal length lens, it offers a wide viewing angle perfect for entrances, courtyards and sensitive areas. The 3K resolution (2960 × 1665) offers higher definition than conventional Full HD models, greatly improving visual detail and recording quality.
Flexible installation and universal compatibility
The camera supports four switchable video signals (TVI/AHD/CVI/CVBS), making it compatible with most analog video recorders. Audio via coaxial cable simplifies integration with audio-ready DVRs, with no need for additional cables.
Built to last outdoors
Rated IP67, it is fully water and dust resistant, making it ideal for outdoor installations even in extreme weather conditions. The turret design minimizes nighttime reflections and offers easy framing adjustment.
Technical Specifications Turret Hikvision ColorVu
Camera
| Image sensor | 3K CMOS sensor |
|---|---|
| Signaling system | PAL/NTSC |
| Maximum resolution | 2960 (O) × 1665 (Vertical) |
| Minimum Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter speed | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day and night | 24/7 color images |
| Angle adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
Lens
| Lens type | 2.8 mm fixed focal length lens |
|---|---|
| Focal length and field of view | 2.8 mm: horizontal 102°, vertical 56°, diagonal 122° |
| Lens mount | M12 |
Illuminator
| Type of supplementary light | White light |
|---|---|
| Supplementary Light Range | Up to 40 meters |
| Frame Rate. | TVI: 3K at 20 fps, 4 MP at 25/30 fps, 1080p at 25/30 fps AHD: 5 MP at 20 fps, 4 MP at 25/30 fps CVI: 4 MP at 25/30 fps CVBS: PAL/NTSC |
|---|---|
| Wide Dynamic Range (WDR) | Digital WDR |
| Change image parameters | STD / HIGH-SAT / HIGHLIGHTED |
| Day/night mode | Color |
| White Balance | Auto, Outdoor, Global, Manual |
| Image enhancement | DWDR, BLC, HLC, Global, HLS |
| Noise Reduction | DNR 2D |
| Image settings | Brightness, Contrast, Mirror, Defective pixel correction, Sharpness, Anti-banding, Smart Light, AGC |
Interface
| Video Output | TVI / AHD / CVI / CVBS switchable |
|---|---|
| Alarm | Steady light alarm (white light) |
| Audio | Built-in microphone |
General
| Language | |
|---|---|
| Operating Conditions | -40°C ~ 60°C, humidity ≤ 90% (non-condensing) |
| Material | Metal body, plastic housing |
| Protection | IP67 |
| Communication | HIKVISION-C |
| Size | Φ 109.98 mm × 98.27 mm |
| Weight | Approx. 318 g |
| Energy | 12 VDC ± 25%, Max. 3.5 W *Dedicated power supply is recommended |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8 mm
- Resolution: 3K
