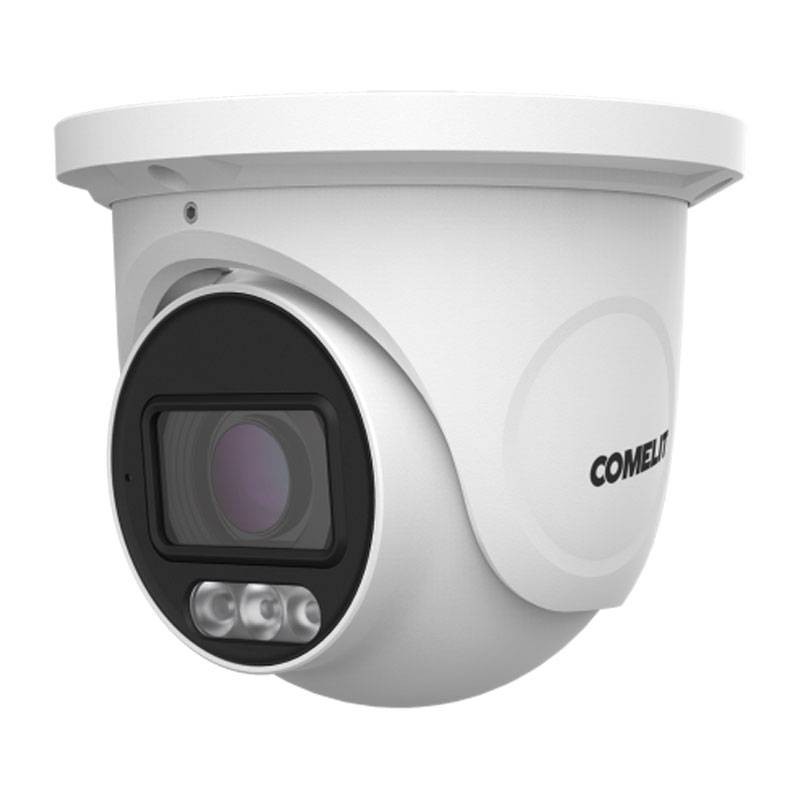

Comelit Turret IP Camera 2.8-12mm 4MP ColorUp IT04N2Z01A
COE IT04N2Z01A
8023903466065
The Comelit IT04N2Z01A 4MP IP turret camera, belonging to the Next series, provides ultra-high definition images, color night vision and advanced video analysis functions. Equipped with 2,812mm motorized optics, ColorUp technology and Dual Light system (IR LED + White LED), it is perfect for professional video surveillance systems even in outdoor environments, thanks to its IP67 die-cast aluminum body.
-
4MP resolution at 30 fps
-
Motorized lens with zoom from 2.8 to 12 mm
-
IR Smart LEDs up to 30 meters + white LEDs up to 20 meters
-
ColorUp technology for color night vision
-
Dual Light system: IR LEDs + white LEDs
-
Smart functions: line-crossing and area intrusion detection
-
H.265+, H.265, H.264+, H.264, MJPEG video compression
-
Built-in microphone for ambient audio recording
-
IP67 waterproof aluminum housing
-
12VDC / PoE (IEEE802.3af) power supply
-
ONVIF compatibility
-
Browser access: Chrome, Edge, Firefox, Safari
-
Compatible accessories: JBA-TVA, CMA-TVA, WMA-TVA, PMA-A, AMA-A, WMA-02A.
€134.40
Items Available: 48
: 1
Frequently bought together
Comelit Turret IP Camera: Intelligent Night Vision with ColorUp
With 4MP resolution and motorized optics, the camera allows remote zoom and focus adjustment. Built-in white LEDs provide color night vision (ColorUp technology), while IR Smart LEDs offer an invisible alternative with coverage up to 30 meters.
Built-in video analysis functions
Comelit IT04N2Z01A features intelligent video analytics functions, such as line-crossing and intrusion detection in the area, ideal for residential, commercial and industrial applications where maximum security is required.
Audio, compatibility and installation
A built-in microphone enables ambient audio recording. Support for popular video compression standards and ONVIF compatibility make it easy to integrate into any IP video surveillance system. Power can be supplied via 12VDC or PoE for maximum installation flexibility.
Technical specifications of the Turret Next Comelit IP camera
Main features
| Item | Value |
|---|---|
| Camera Sensor | 1/3" CMOS Ultra Starlight |
| Lens Type | Motorized |
| Varifocal lens size | 2.8 ÷ 12 mm |
| Effective pixels (H x V) | 2560 x 1440 |
| Horizontal field of view | 92.5 ÷ 34° |
| Vertical field of view | 54 ÷ 18° |
| Diagonal field of view | 112 ÷ 39° |
| Electronic shutter | 1/3 ÷ 1/100000 s |
| Sensitivity | 0.005 (color), 0 (B/W, IR ON) |
| Video transmission | Dual streaming |
| Management software | Comelit CCTV Manager |
| Video resolution | 4 MP |
| DORI - Detection | 56 ÷ 181 m |
| DORI - Observation | 22 ÷ 72 m |
| DORI - Recognition | 11 ÷ 36 m |
| DORI - Identification | 5 ÷ 18 m |
Software/firmware features
| Item | Value |
|---|---|
| Video compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Frame rate | 30 fps |
| Supported protocols | DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, PPPoE, RTSP, SMTP, UDP, ONVIF |
| Firmware upgrade via network | Yes |
| Simultaneously connected users | 3 (live) |
| Remote viewing by browser | Edge, Firefox, Chrome, Safari |
| Remote control from mobile | Comelit CCTV APP |
| Latest firmware version | 5.1.2.0(58017)(2024-06-27) |
Features
| Item | Value |
|---|---|
| Main Functions | 3D-DNR, BLC |
| Motion detection | 396 zones |
| Video analysis | Line crossing, area input |
| Privacy zones | 4 |
| Compensation against light (BLC) | BLC |
| Wide Dynamic Range (WDR) | D-WDR |
| DNR Control | 3D-DNR |
| White Balance | Automatic, Indoor, Manual, Outdoor |
| Exposure control | Manual, Automatic |
| Brightness adjustment | Yes |
| Camera titration | Yes |
Hardware features
| Item | Value |
|---|---|
| IR LED illumination distance | 30 m |
| White LED illumination distance | 20 m |
| Vandal-proof degree of protection IK | IK10 (metal case) |
| IP rating | IP67 |
| Audio inputs/outputs | 1 (microphone) / - |
| LAN output type | Ethernet 10/100 Mbit/s (RJ45) |
General data
| Item | Value |
|---|---|
| Supply voltage | 12 VDC |
| Maximum power consumption | 8,5 W |
| PoE Power Supply | IEEE 802.3af standard |
| Power supply type | PoE, External power supply |
| Diameter | 130 mm |
| Height | 110 mm |
| Weight | 484 g |
| Casing material | Die-cast aluminum |
| Case type | Turret |
| Color | White |
| Operating temperature range | -30 ÷ 60 °C |
| Operating humidity | 25 ÷ 95 % |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2.8-12mm
- Resolution: 4MP (2K)
