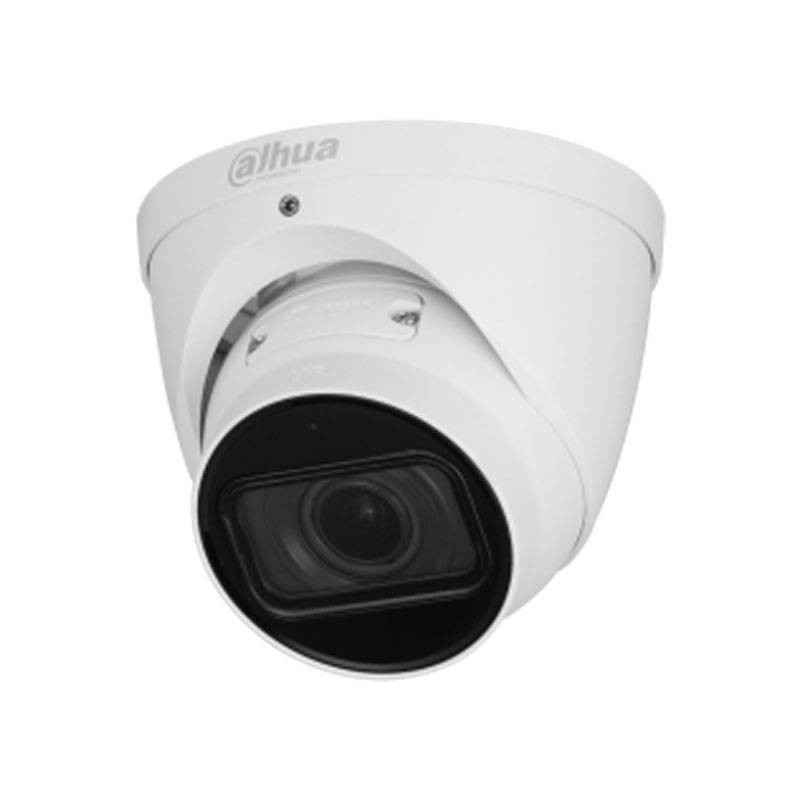

Dahua IPC-HDW2441T-ZS IP 4MP 2.7-13.5mm Dome Camera M-0029498
DAH M-0029498
6923172545145
Dahua IPC-HDW2441T-ZS Eyeball WizSense Vari-focal IR Dome Camera:
- IP System
- Max. resolution 4 MP (2688× 1520) at 20 fps and supports 2560 × 1440 (2560× 1440) at 25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, maximum illumination distance 40 m
- Supports 256 G max Micro SD cards; built-in microphone
- 12 VDC/PoE power supply, easy to install
Compatible accessories, to be purchased separately codes: M-0002469 - M-0002490.
€157.88
Items Available: 3
: 2
Frequently bought together
Camera:
- 1/2.9" CMOS image sensor
- Maximum resolution 2688 (height) × 1520 (verso)
- rom 128 MB
- RAM memory 128 MB
- Scanning system Progressive
- Electronic Shutter Speed Automatic/Manual 1/3 s1/100,000 s
- Minimum illumination 0.006 lux@F1.5 (Color, 30IRE) - 0.0006 lux@F1.5(B/W,30IRE) - 0 lux (Illuminator on)
- Signal-to-noise ratio > 56 dB
- Illumination distance 40 m (131.23 ft) (IR LED)
- Illuminator on/off control Automatic; Manual
- Number of illuminator 2 (IR LED)
- Rotation/tilt/panning range Overview: 0°360° - Tilt: 0°78° - Rotation: 0°360°
Lens:
- Vari-focal motorized lens type
- Lens mount f14
- Focal length From 2.7 mm to 13.5 mm
- Maximum Aperture F1.5
- Field of view Horizontal: 104°29°; Vertical: 54°16°; Deep: 125°34°
- Iris control Fixed
- Close focusing distance 0.8 m (2.62 ft.)
Intelligence:
- IVS (Perimeter Protection) Intrusion, tripwire (the two functions support accurate classification and detection of vehicles and people)
- Intelligent Search Collaborates with Smart NVR to perform refined intelligent search, event extraction and event video merging
Video:
- H.265; H.264; H.264H; H.264B; MJPEG video compression (supported by secondary stream only)
- H.265+ intelligent H.264+ intelligent codec
- Video frame rate Main stream: 2688 × 1520@(120 fps)/2560 × 1440@(125/30 fps) - Secondary stream: 704 × 576@(125 fps)/704 × 480@(130 fps) *The above values are the maximum frame rates of each stream; for multiple streams, the values will be subject to the total encoding capacity
- Stream capacity 2 streams
- Maximum resolution: 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3 M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- CBR/VBR bit rate control
- Video bit rate H.264: 32 kbps6144 kbps - H.265: 12 kbps6144 kbps
- Day Night Auto(ICR)/Color/B&W
- BLC YES
- HLC YES
- WDR 120 dB
- White balance Auto; natural; streetlight; outdoor; manual; regional custom
- Get control Manual;Automatic
- 3D Noise Reduction N
- Motion detection OFF/ON (4 areas, rectangular)
- Region of Interest (RoI) Yes (4 areas)
- Intelligent illumination YES
- Image rotation 0°/90°/180°/270° (supports 90°/270° with resolution 2688 × 1520 and below)
- Mirror YES
- Privacy masking 4 areas
Audio:
- Built-in microphone YES
- Audio compression G.711a; G.711Mu; G.726; PCM
Alarm event:
- No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception
Network:
- RJ-45 network port (Base-T 10/100)
- SDK and API YES
- Network protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- ONVIF interoperability (S Profile/G Profile/T Profile); CGI
- User/Host 6 (total bandwidth: 36 M)
- FTP storage; SFTP; Micro SD card (max. support 256 GB)
- Internet Explorer Chrome Firefox browser
- Intelligent PSS management software; DSS; DMSS
- Mobile client iOS; Android
- Cybersecurity Video encryption; Configuration encryption; Digest; WSSE; Account locking; Security logs; IP/MAC filtering; X.509 certification generation and import; syslog; HTTPS; 802.1x; Trusted startup; Trusted execution; Trusted update
Certifications:
- CE-LVD: EN62368-1;
- CE-EMC: Electromagnetic Compatibility Directive.
- 2014/30/EU;
- FCC: 47 CFR FCC Part 15, Subpart B;
- UL/CUL: UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
General:
- 12 VDC/PoE (802.3af) power supply.
- Power Consumption Base: 1.9 W (12 VDC); 2.8 W (PoE) Max. (H.265+active intelligence +WDR +IR active): 6.1 W (12 VDC); 7.3 W (PoE)
- Operating temperature 30 °C to +60 °C (22 °F to +140 °F)
- Operating humidity ?95%
- Storage temperature 40 °C to +60 °C (40 °F to +140 °F)
- Protection IP67
- Enclosure Material Metal
- Product dimensions 108.3 mm × ?122 mm (4.26" × ?.4.80")
- Net weight 0.69 kg (1.52 lb)
- Gross weight 0.86 kg (1.90 lb)
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- System: IP
- Optical: 2,7-13,5 mm
- Resolution: 4MP (2K)
