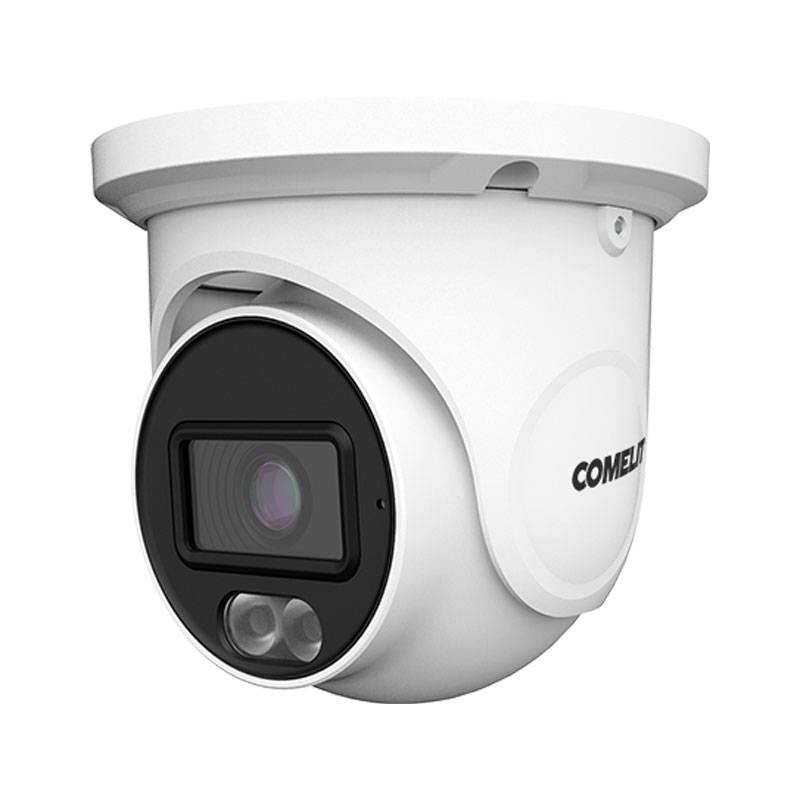

Comelit 3.6mm 4MP ColorUp AHD Turret Camera AT04N0FA
COE AT04N0FA
8023903465068
Comelit AT04N0FA turret camera with 3.6mm fixed lens offers color images through ColorUp technology, 4MP resolution, 20m white LEDs and IP67 aluminum housing.
-
4MP video resolution for high-definition images
-
ColorUp technology: color vision even at night (without IR)
-
3.6mm fixed lens for balanced field of view
-
Integrated white LEDs with range up to 20 meters
-
AHD/TVI/CVI/CVBS compatibility
-
12Vdc power supply
-
Die-cast aluminum housing with IP67 protection rating
-
Compatible with JBA-TBBA, CMA-KTBBA, WMA-KTBBA, PMA-A, AMA-A, WMA-01A accessories
€46.48
Items Available: 55
: 10
Frequently bought together
Comelit Color Up camera: High-definition surveillance, even in the dark
The Comelit AT04N0FA turret camera is the ideal choice for those who want reliable, detailed, color video surveillance even in total darkness. Thanks to ColorUp technology, it replaces traditional black-and-white vision with IR LEDs, ensuring images are always sharp and realistic even at night.
3.6mm fixed optics and 20m white LEDs
Equipped with 3.6 mm fixed optics, this camera offers an optimal viewing angle for residential and commercial areas, such as entrances, hallways or perimeters. Built-in white LEDs automatically activate in low light, illuminating up to 20 meters to maintain consistent image quality.
Multi-standard compatibility and flexibility of use
The Comelit AT04N0FA is compatible with the main analog video standards: AHD, TVI, CVI and CVBS, offering maximum flexibility for integration even in existing installations. It can be powered with 12Vdc, making it perfect for both new and retrofit installations.
Rugged and weatherproof
Constructed of die-cast aluminum and rated IP67, the camera is resistant to rain, dust and weather, making it suitable for outdoor use to monitor exposed areas year-round.
Technical specifications of the Comelit AHD Turret camera
Main features
| Item | Value |
|---|---|
| Camera sensor | 1/2.5" CMOS |
| Lens size fixed lens | 3.6 mm |
| Effective Pixels (H x V) | 2560 x 1936 |
| Electronic shutter | 1/50 ÷ 1/100000 s |
| Signal-to-noise ratio | >52 dB |
| Video output | AHD / TVI / CVI / CVBS |
| Video resolution | 4 MP |
Functions
| Voice | Value |
|---|---|
| Wide Dynamic Range (WDR) | D-WDR |
Hardware features
| Voice | Value |
|---|---|
| IR LED illumination distance | No IR |
| White LED illumination distance | 20 m |
| Vandal-proof degree of protection IK | IK10 (metal case) |
| IP rating | IP67 |
| Camera control by dip-switch | Yes |
General data
| Item | Value |
|---|---|
| Supply voltage | 12 VDC |
| Maximum power consumption | 3 W |
| Power supply type | External power supply |
| Diameter | 94.6 mm |
| Height | 82.8 mm |
| Product weight | 390 g |
| Coating material | Die-cast aluminum |
| Case type | Turret |
| Color | Black and white |
| Operating temperature range | -30 ÷ 60 °C |
There are no reviews
Data sheet
- Type: Dome cameras
- Degree of protection: IP67
- Optical: 3.6 mm
- Resolution: 4MP (2K)
