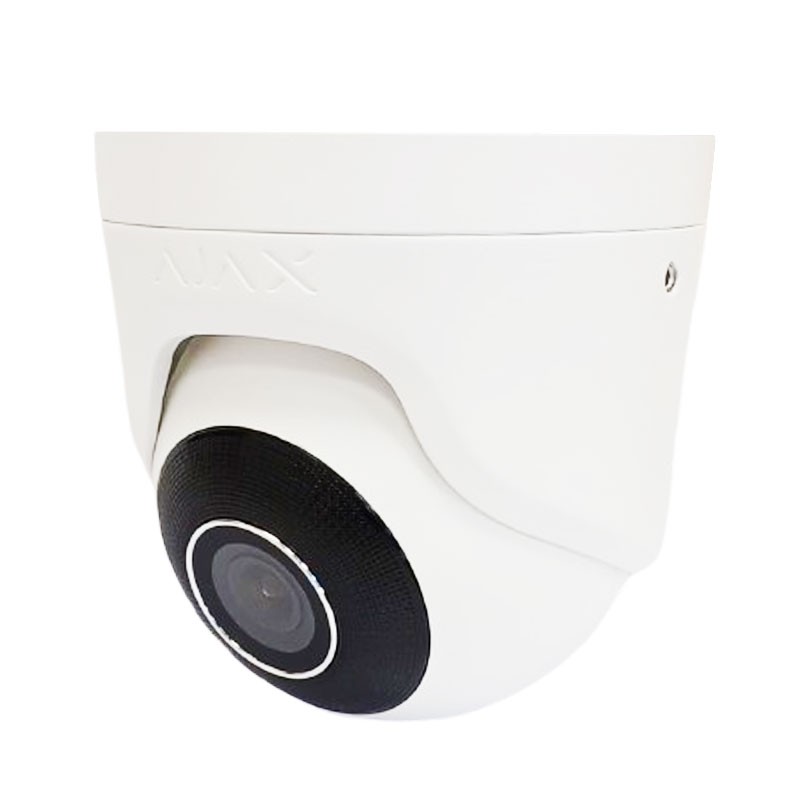

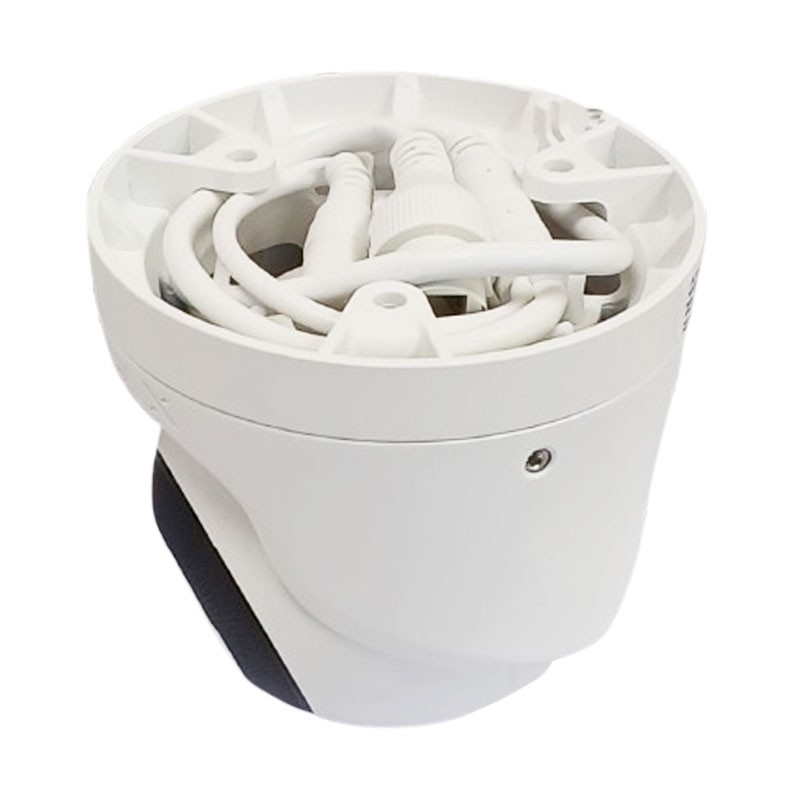

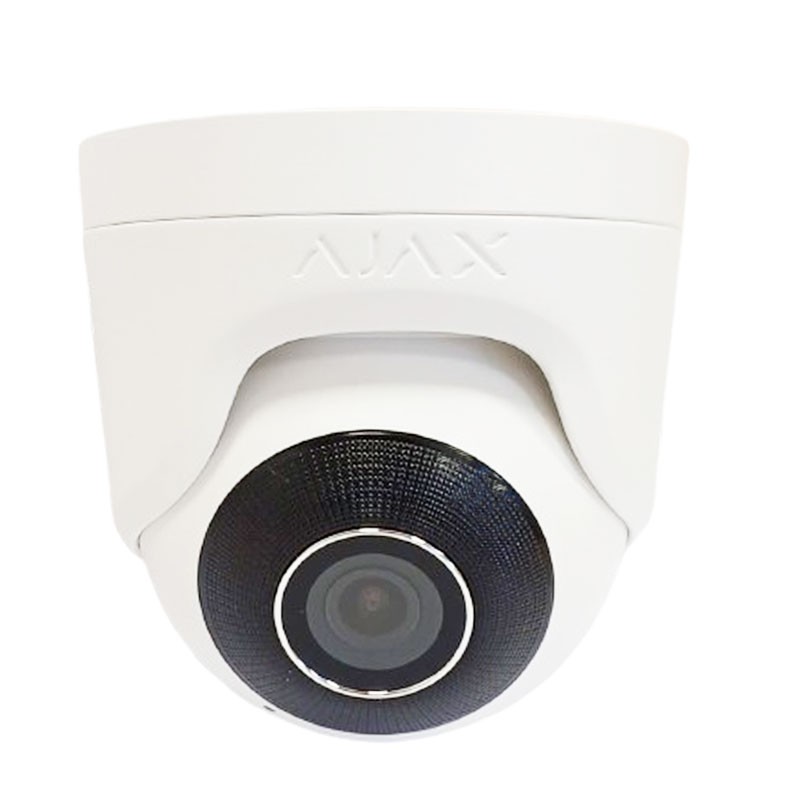

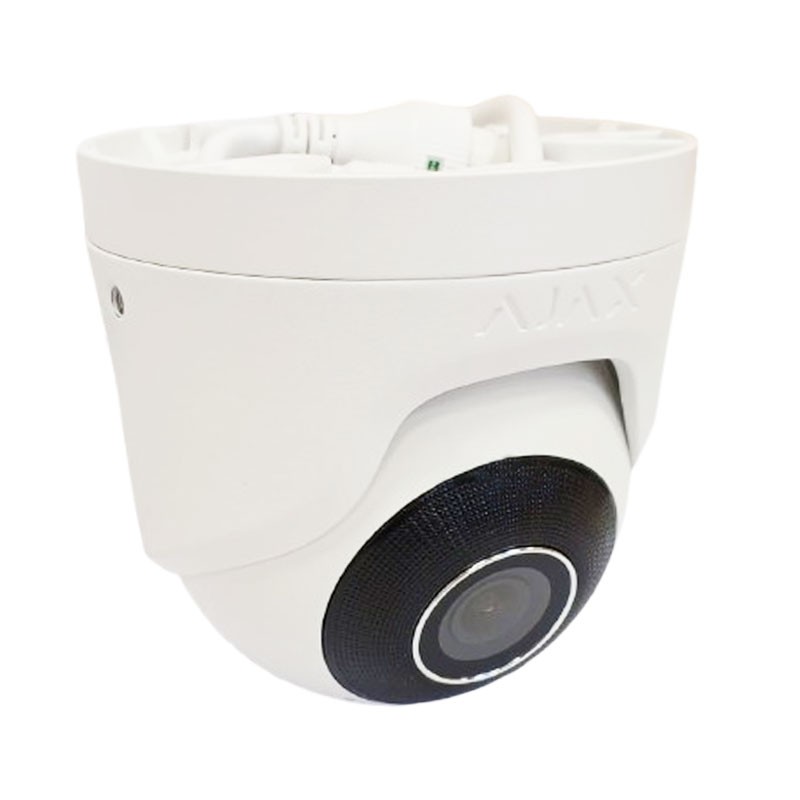

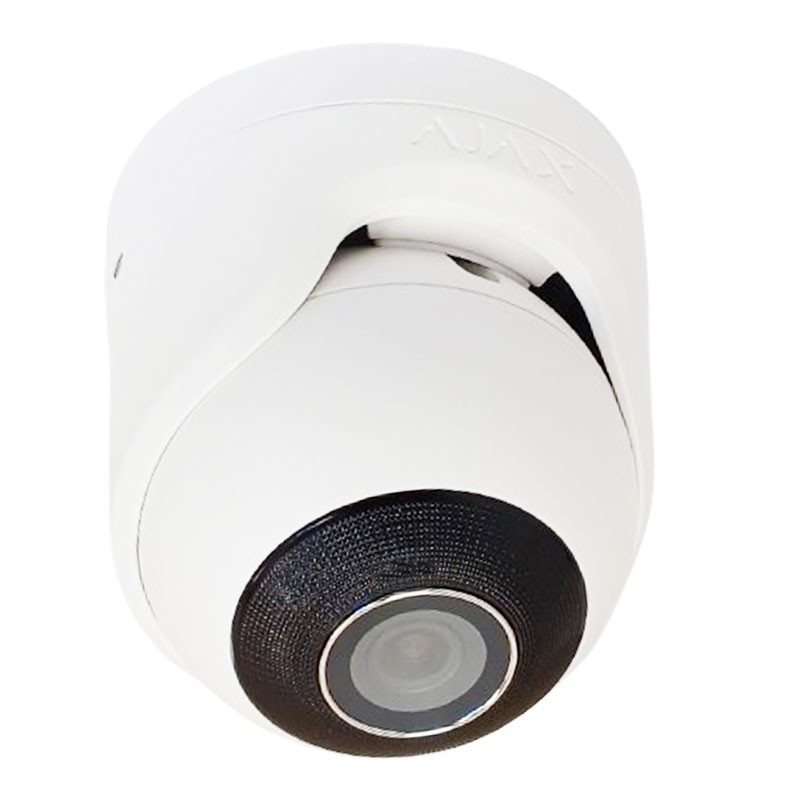

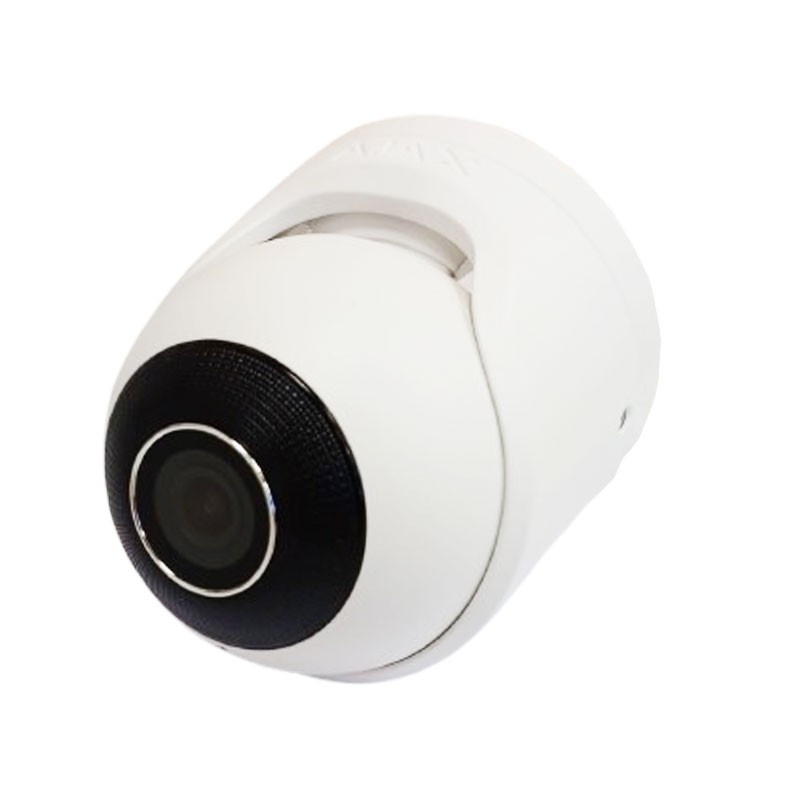

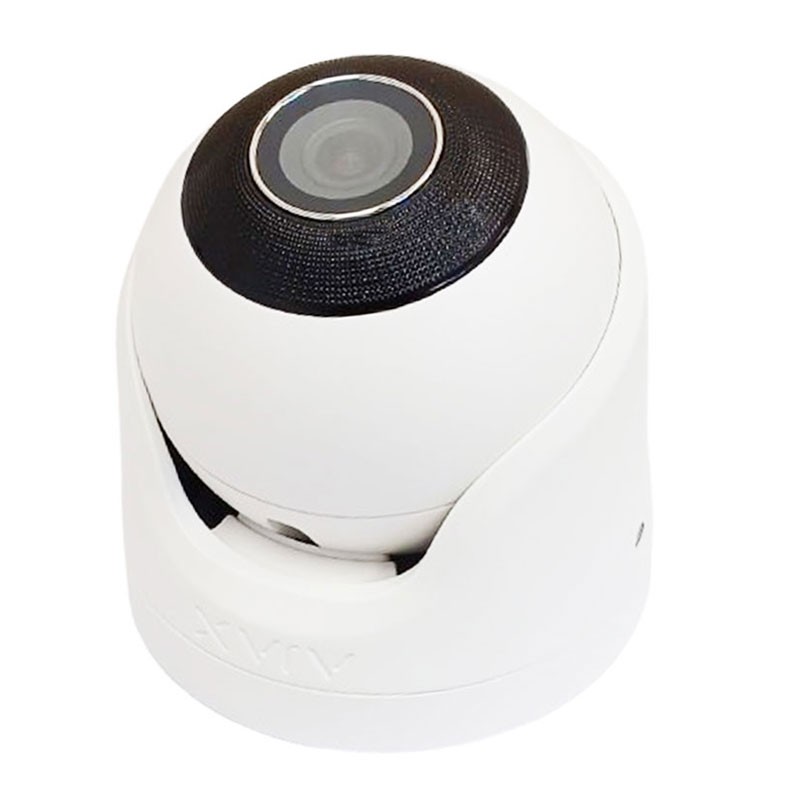

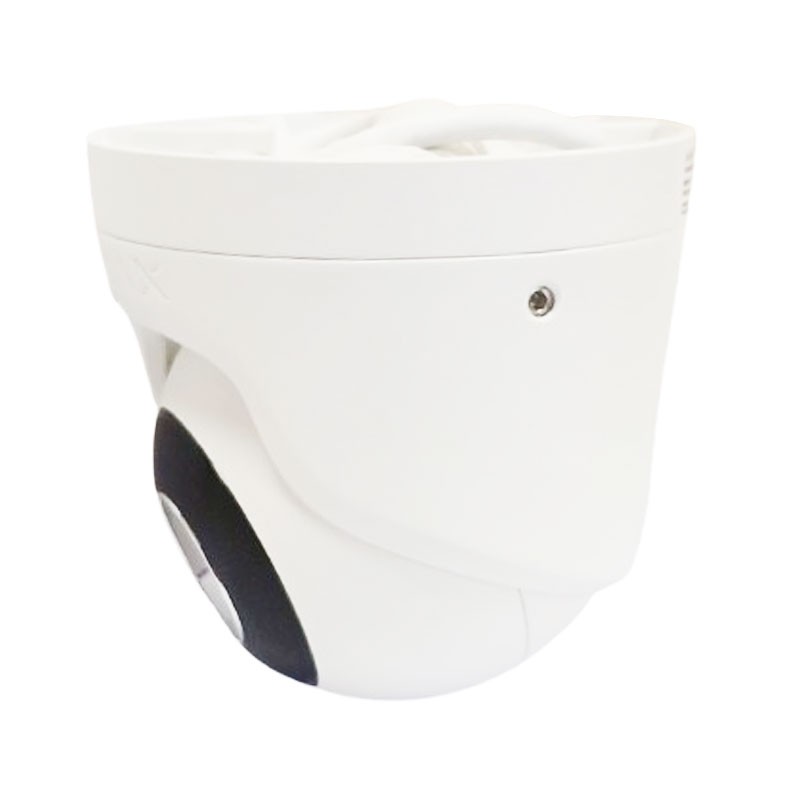

TurretCam Ajax IP camera 5Mp optical 2.8mm white 64923
08T 64923
4823114046285
The Ajax TurretCam IP camera is an advanced video surveillance solution with 5 MP resolution, 2.8 mm wide-angle lens and built-in artificial intelligence for accurate detection of motion, people, animals and vehicles. Designed for indoor and outdoor use, it offers detailed images in real time and supports integration with Ajax security systems for visual verification of alarms.
-
Resolution up to 2880 × 1620 px (5 MP)
-
Fixed 2.8 mm lens, 100° to 110° viewing angle
-
Video frequency up to 25 fps
-
Intelligent IR up to 50 meters with dynamic adjustment
-
TrueWDR technology for sharp backlit images
-
Built-in microphone for audio recording
-
PoE or 12V DC power supply compatible
-
Communication via Ethernet up to 100 Mbps
-
AI for object detection: people, vehicles, animals
-
Supports visual verification of Ajax alarms
TurretCam can also work without NVR, saving the archive to the SD card (if installed).
€192.30
Items Available: 2
: 1
TurretCam Ajax Camera with Artificial Intelligence.
TurretCam runs smoothly using Ajax Cloud for transmission of system events, while proprietary JetSparrow technology ensures fast peer-to-peer transmission of video data. With AI analysis capabilities, TurretCam can detect and recognize types of objects, such as humans, vehicles and animals. This allows the surveillance system to record only relevant events and use less memory. To make surveillance precisely selective, cameras can be activated only when the system is engaged.
Intelligent night vision up to 50 meters
The Ajax TurretCam is equipped with smart IR illumination that automatically adjusts the intensity of infrared LEDs to avoid overexposure. This technology enables it to distinguish details on both near and far objects even in low light or complete darkness, providing effective vision up to 50 meters.
Integration with Ajax system and visual verification
One of the strengths of the TurretCam is its seamless integration with the Ajax security system. Scenarios can be configured in which, upon the occurrence of an alarm (such as from a motion or opening sensor), the camera automatically starts recording the scene. The footage is then sent in real time to the Ajax mobile or desktop app, allowing immediate verification of the event.
Ambient audio with built-in microphone
The presence of a built-in microphone enables the recording of ambient audio, enhancing surveillance and providing additional elements for analysis of recorded situations.
Smooth navigation through the archive
-
JetSparrow: peer-to-peer transmission
-
Instant live viewing
-
Fast navigation in the archive with filters and calendar
-
Dual streaming for instant video preview
-
Exporting movies in just a few clicks.
Clear and detailed images in 4K
The TurretCam Ajax camera delivers exceptional video quality through 4K Ultra HD resolution with up to 110° viewing angle. Perfect for monitoring large areas with crisp detail.
Intelligent detection with AI
Using AI technology, the camera accurately distinguishes between humans, vehicles and pets, reducing false alarms and optimizing security monitoring.
Advanced night vision
The IR Smart illuminator ensures clear images up to 35 meters even in total darkness, while HDR and WDR technologies improve visibility in environments with strong light contrasts.
Protection and installation
With its IP65 certification, the Ajax TurretCam is dust and water resistant, making it ideal for outdoor and indoor installations.
Compatibility and integration with Ajax systems
The camera is fully integrable with Ajax alarm systems:
-
Ajax HUB, HUB Plus
-
Hub 2 (2G/4G), Hub 2 Plus
-
Hub Hybrid (2G/4G)
Designed for outdoor and indoor environments
IP65 protection provides dust and water resistance, making the camera ideal for outdoor and indoor installation. The compact body (103 × 98 × 98 mm) with white finish is stylish and fits into any setting.
Advanced storage and features
-
H.265 compression: Reduces space occupancy while maintaining high video quality
-
MicroSD slot: Allows local storage of recordings
-
Cloud support: For remote data management
-
Built-in microphone: Allows audio capture for comprehensive monitoring.
Technical specifications of the TurretCam Ajax IP 5MP
Model
| Item | Value |
|---|---|
| Model | 5 Mp / 2.8 mm |
| Resolution | Up to 2880 × 1620 px |
| Frame Rate | Up to 25 FPS |
| Viewing angle | 100° to 110° |
Video Streaming
| Voice | Value |
|---|---|
| Video protocol | JetSparrow (fast and encrypted peer-to-peer, developed by Ajax Systems) |
| NVR Storage | Up to 16 TB hard drive (SATA, 3.5"). Not included. |
| MicroSD storage | Up to 256 GB, Class 30 or higher. Not included. |
| Video codecs | H.265 / H.264 |
| Dynamic range | True WDR |
Communication channels
| Voice | Value |
|---|---|
| Ethernet | Up to 100 Mbps |
Key features
| Voice | Value |
|---|---|
| Motion Detection | Built-in software for motion detection |
| AI Object Detection | Humans, Pets, Vehicles |
| Intelligent IR illumination | Up to 50 m, automatic real-time adjustment |
| Ajax visual alarm verification | Trigger recording from detector scenarios, send instant notification |
| Microphone | Sound recording if enabled |
| Audio codec | G711-ULAW, G711-ALAW, G726, G722 |
Power supply
| Voice | Value |
|---|---|
| Power supply | 12 V⎓ ± 20%, 1 A (up to 15 W) |
| Ethernet Port | 802.3at/af PoE standard |
Anti-sabotage protection
| Item | Value |
|---|---|
| mTLS | Encrypted connection for data protection |
| Authentication | Via Cloud (without local access rights) |
| Secure Boot | Protection against firmware forgery |
| OTA signature verification | Secure automatic firmware update |
| Privacy | Distribution of access rights for users in mobile apps and for CRA operators in PRO Desktop |
Case
| Item | Value |
|---|---|
| Dimensions | 103 × 98 × 98 mm |
| Weight | 496 g |
| Operating temperatures | -30°C to +60°C |
| Maximum allowable humidity | up to 90% |
| Protection class | IP65, IK08 |
Package contents
| Element |
|---|
| TurretCam (5 Mp/2.8 mm) |
| Installation diagram |

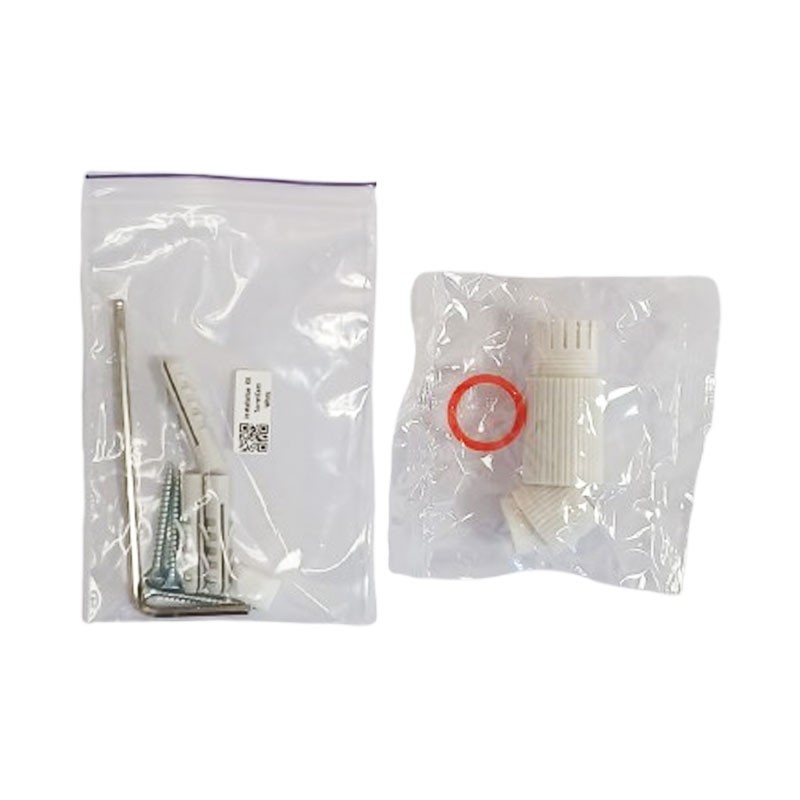

| Installation kit |
| Quick Start Guide |
There are no reviews
Data sheet
- Colour: White
- Type: Dome cameras
- Degree of protection: IP65
- System: IP
- Optical: 2.8 mm
- Resolution: 5MP
