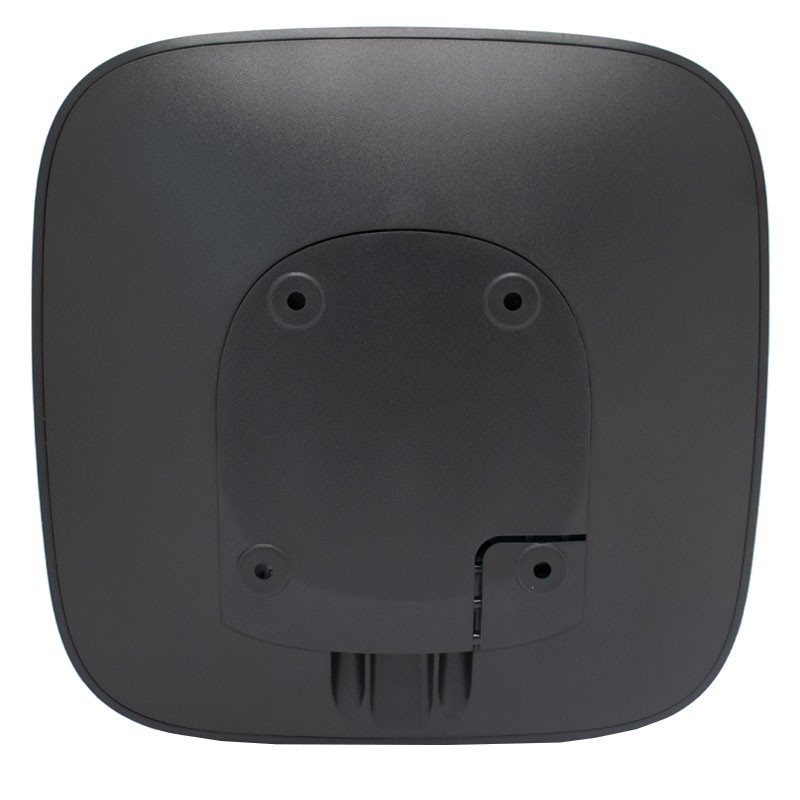

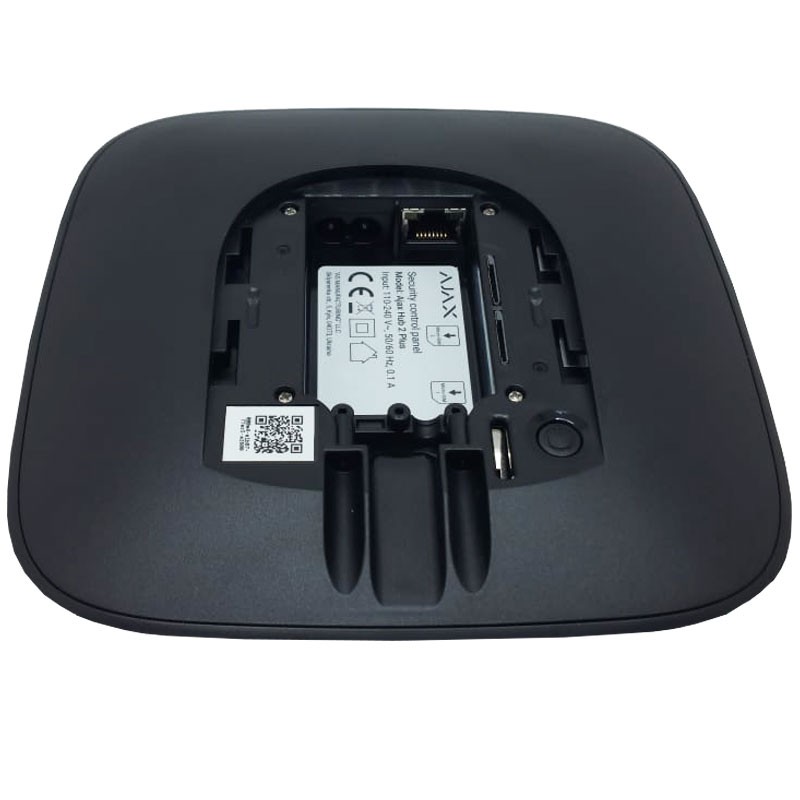

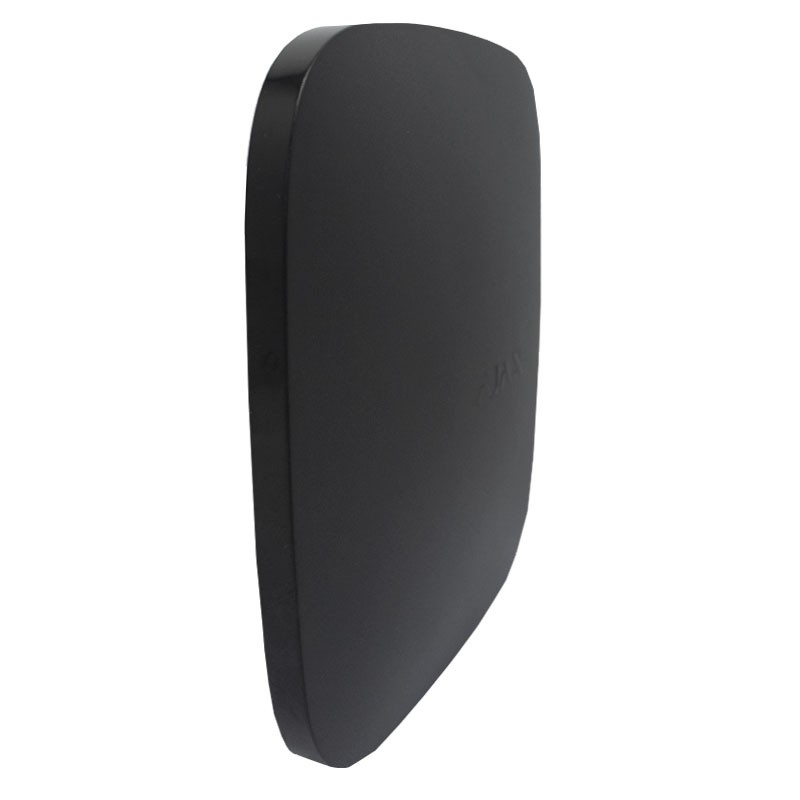

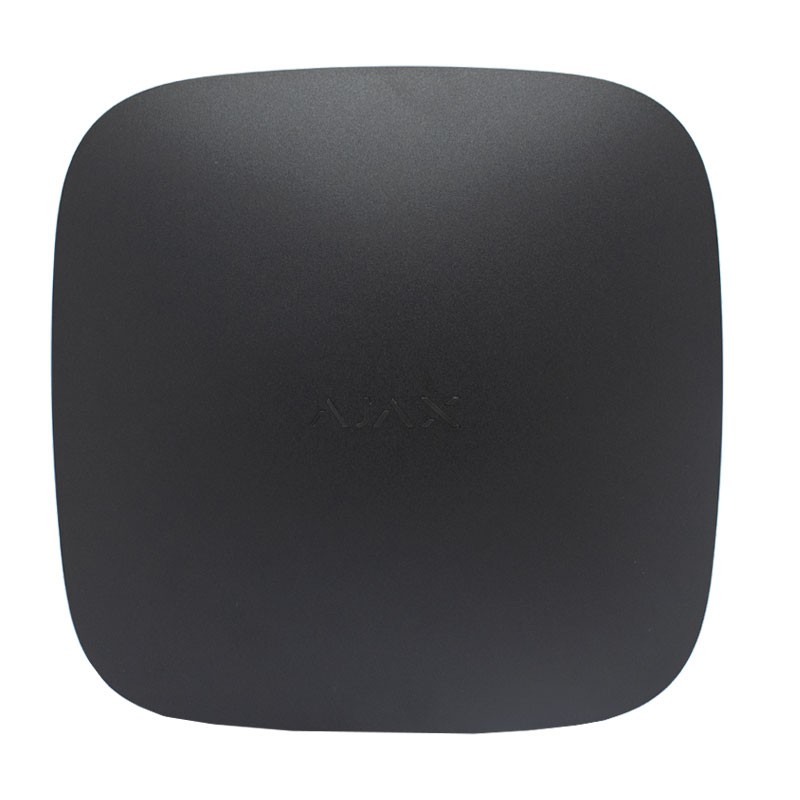

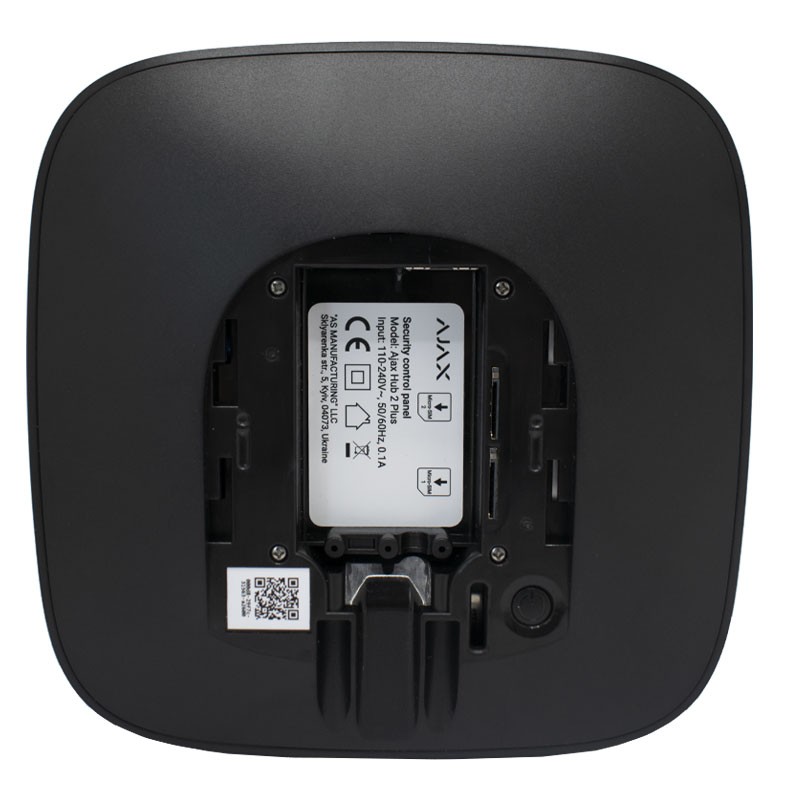

Ajax Hub 2 Jeweller 2G Control Unit 2 Sim with photo-verification black
08T 38238
4823114015199
The Ajax Hub 2 Jeweller 2G Control unit is an advanced wireless central unit with photo-verification support, black in color, designed to provide maximum security and immediate reaction to events. With dual 2G SIM cards, Ethernet connection, and compatibility with up to 100 Ajax devices, this central unit is perfect for residential and professional installations.
When an intrusion is detected, the Hub 2 transmits images from the MotionCam and MotionCam Outdoor sensors in less than 9 seconds, allowing users or security institutions to assess the situation without the need for a continuous active video surveillance system.
- Ethernet + dual SIM (2G) connection for maximum business continuity
- Support for photo-verification with MotionCam and MotionCam Outdoor detectors
- Up to 100 Ajax devices connected simultaneously
- Up to 10 sirens or keypads with built-in siren and 5 repeaters supported
- Support for up to 32 automation scenarios (up to 50 recordable)
- Management of up to 9 security zones and 50 rooms
- Event log of up to 1,000 entries
- Sending images in less than 9 seconds via Jeweller and Wings protocols
€311.29
Items Available: 2
Frequently bought together
Ajax Hub 2 Jeweller Control unit with photo-verification
Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of photos and allow a situation on the facility to be assessed. Visual verification saves users from worries and security institutions from unnecessary patrol mobilization.
To ensure reliable communications, we equipped Hub 2 with four antennas and support for two proprietary radio protocols-Jeweler and Wings. Jeweler handles the transmission of commands, events and alarms, while Wings provides batch transmission of images. Ajax two-way radio communication uses framing to synchronize device communication, authentication to eliminate forgery, and encryption to protect against data leakage.
- Motion detected
- Alarm triggered
- Evidence sent
Connection via cable and cellular networks
Communication with the outside world is critical for the security system control panel. Its reliability and stability ensures that the alarm is sent to the security institution and users in a timely manner.
Hub 2 can be simultaneously connected to three Internet service providers: via Ethernet cable and 2G cellular networks. Automatic switching between channels takes place within seconds.
Automated security
Hub 2 makes it possible to create 32 scenarios and minimize the impact of the human factor on security. The hub can engage or disengage a system or group on programming. Immediately activate a smoke machine if someone enters the building. Shut off the power in the building and turn on emergency lights in case of fire. Or turn off the water in case of flooding. Check lights, electric locks, shutters, and garage doors for on/off by pressing a button or when it detects an alarm.
Resistant to sabotage attempts
Whatever happens to Hub 2, the security institution and users will be informed. No one can disconnect the hub unnoticed, even when the system is disarmed. If an intruder attempts to disassemble the device, it will immediately trigger the tamper. The Ajax Cloud server can send notifications about loss of connection to the hub within 60 seconds due to frequent polling. Even if the building runs out of power, the hub will protect the system for up to 16 hours thanks to the included backup battery (Up to 16 hours of battery life from the Li-ion 2 A⋅h battery for Hub 2 (2G) Jeweller when the Ethernet connection is turned off.)
Technical specifications of the Ajax Hub 2 2G Control unit
Capacity
| Feature | Description |
|---|---|
| Ajax devices | up to 100 Specifically, up to 10 sirens or keypads with built-in siren and 5 repeaters. |
| Ajax network video recorders | up to 14 |
| Ajax Cameras | up to 224 via Ajax NVR and up to 200 standalone |
| Third-party IP cameras | - up to 25 via RTSP (SDK) - up to 224 via ONVIF (Ajax NVR) |
| Users | up to 50 Unlimited number of users with administrator rights within the hub limit. PRO account for installers. PRO account for installation companies and security institutions. Access management for users. |
| Automation scenarios | up to 32 - Responses to alarms. - Scheduled actions. - Responses to change in security mode. - Responses to change in temperature. - Responses to change in humidity. - Responses to changes in CO₂ concentration. - Responses to Button pressure. |
| Safety Areas | up to 9 |
| Rooms | up to 50 |
| Event log | up to 1000 events Events are saved in the built-in nonvolatile flash memory. |
Jeweller Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology for transmission of commands, alarms and events. |
| Key Features | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Instant notifications. - Remote control and configuration in Ajax apps. |
| Operating frequencies | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Radio signal modulation | GFSK |
| Automatic power control | Reduces power consumption and radio interference. |
| Radio communication range | Up to 2,000 m (between the hub and connected devices in the open field). Maximum range depends on connected devices. |
| Ping interval | 12 to 300 s (set by a PRO or administrator in Ajax apps). |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | To avoid radio interference and signal inhibition. |
Wings Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology to transmit photo-verifications. |
| Key Features. | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Data packet reloading in case of transmission errors. - Photo delivery control. |
| Operating frequencies | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | up to 20 mW |
| Automatic power control | Reduces power consumption and radio interference. |
| Radio communication range | up to 1,700 m (between the hub and connected devices in the open field). Maximum range depends on connected devices. |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | To avoid radio interference and signal inhibition. |
Installation and Communication Channels
| Feature | Description |
|---|---|
| Operating voltage | 110-240 V~ |
| Installation | Hub is designed for indoor use only. |
| Ethernet | 1 8P8C connector Up to 100 Mbps. |
| Cellular network | 2 micro SIM slots |
| Cellular frequencies | 2G GSM900/DCS1800 (B3/B8) |
| Automatic switching between communication channels | Switching from Ethernet to SIMs: instantaneous. Switching from one SIM to another: up to 4 minutes. |
| Priority between communication channels | 1. Ethernet 2. Cellular connection |
| Parallel operation. | Communication channels operate in parallel to increase system reliability. Most data is transmitted via Ethernet. |
| Categories of alarm transmission systems | SP2, SP5, DP3 |
| Operation method of the control unit | Pass-through |
| Security of signaling | S2 (Protection against counterfeiting) |
| Information Security | I2 |
Notifications
| Feature | Description |
|---|---|
| Types of notifications | - Push notifications - SMS - Calls |
| Event types. | - Alarms - Malfunctions - Security mode change - System events Notification types are set individually for each user. Notifications can be customized for schemes A-D according to the requirements of EN 50131. |
Photo-verification
| Feature | Description |
|---|---|
| Photo-verification types | - Photos per alarm - Photos per scenario - Photos per request - Photos per programming The Photos per programming feature is available for hubs with OS Malevich firmware 2.19 or later. |
| Photo delivery time | up to 9 s (by default) |
| Photo resolution | Up to 640 × 480 pixels (depends on the detector) |
| Number of photos in a series | 1 to 5 pictures |
Monitoring
| Feature | Description |
|---|---|
| Supported protocols | - SIA (DC-09) - SurGard (Contact ID) - ADEMCO 685 - Other proprietary protocols |
| Event Types. | - Alarms and system events - Panic button coordinates - Photo-verification |
Power supply
| Feature | Description |
|---|---|
| Main power supply type | Type A |
| AC voltage range of device operation | 110-240 V~, 50/60 Hz Up to 10 W of mains power supply. |
| DC voltage range of device operation | 3.55-4.2 V⎓ Built-in rechargeable battery: Li-ion 2 Аh. Hub manufactured after October 7, 2022 is equipped with a 3-pin battery. If produced before, the battery may be 2-pin or 3-pin. Contact Ajax technical support or check manually to find out the type. |
| Stand-alone operation | up to 15 hours when Ethernet is turned off. The Battery Power Saving function allows you to extend the life of the backup battery. |
| Alternative Power Supply | - 6 V⎓ via alternative power supply 6V PSU (type A), sold separately. - 12-24 V⎓ via alternative power supply 12-24V PSU (type A), sold separately. |
Anti-Sabotage Protection
| Feature | Description |
|---|---|
| Tamper alarm | Notifications if an attempt is made to detach the device from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication |
| Frequency hopping | The hub sends notifications to all users and the security institution in case of inhibition or loss of connection to devices. |
Case
| Feature | Description |
|---|---|
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Operating temperatures | -10 °C to +40 °C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP20 |
Material Contained in the Package
| Element | Description |
|---|---|
| Main device | Hub 2 (2G) Jeweller |
| Mounting panel | SmartBracket |
| Cables included | - Power cable - Ethernet cable |
| Installation accessories | Installation kit |
| Documentation | Quick Start Guide |
There are no reviews
Data sheet
- Colour: Black
- Type: Wireless control panel
- System: Wireless
