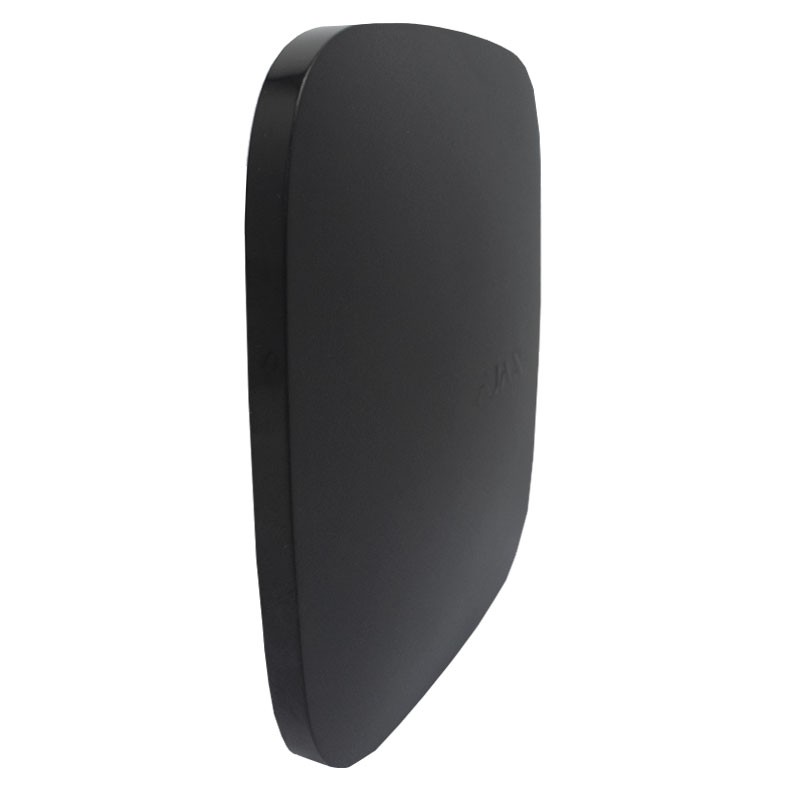

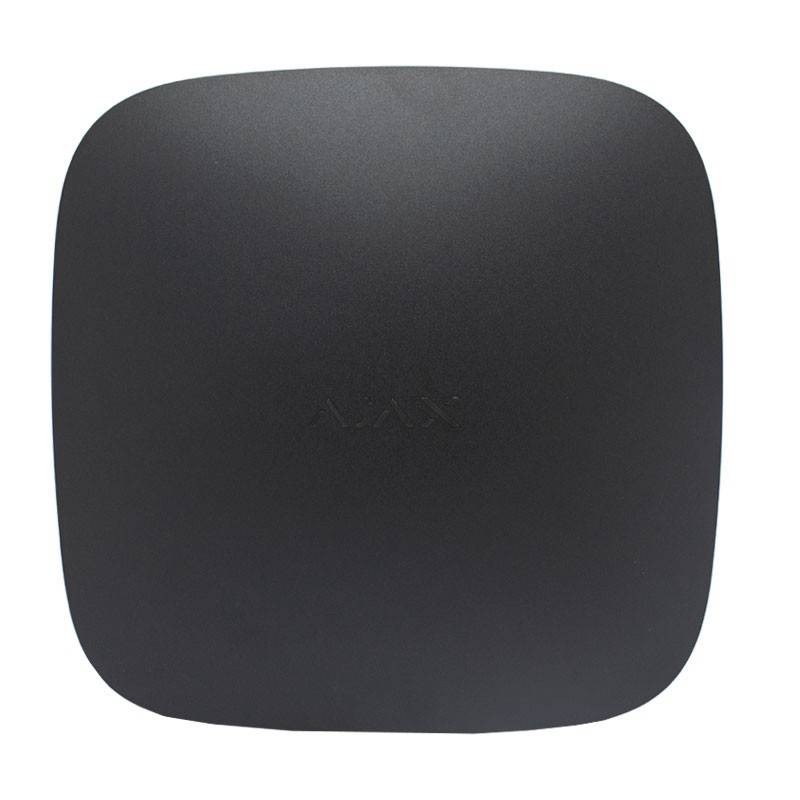

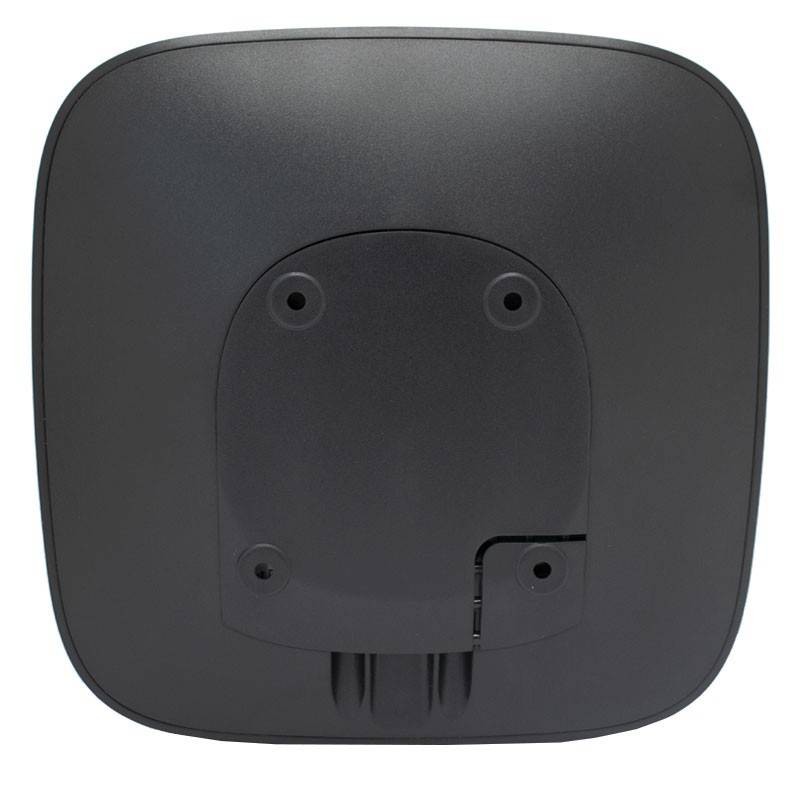

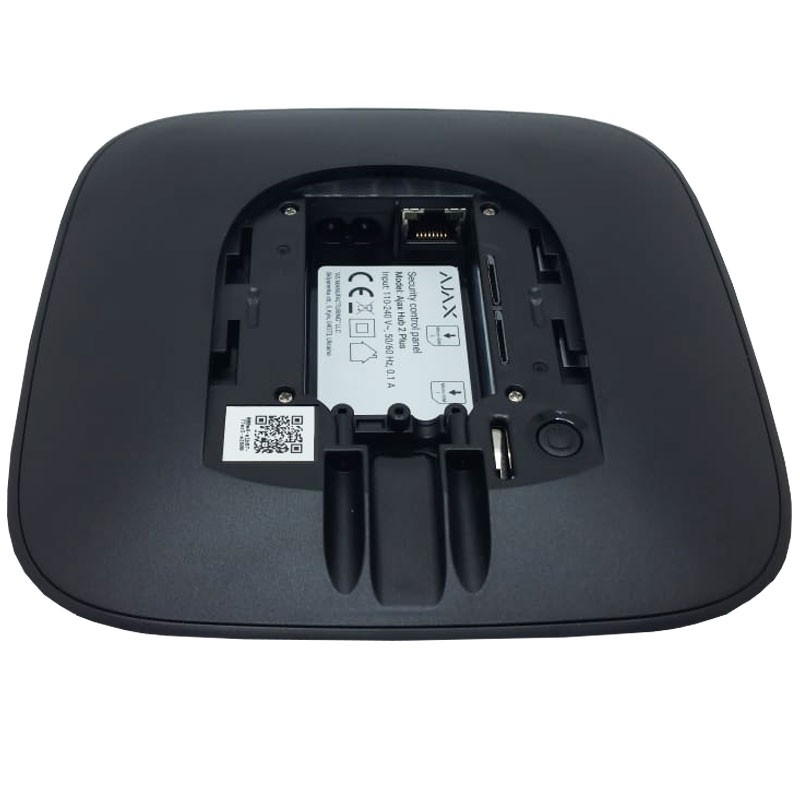

Ajax Hub 2 Jeweller 4G Control Unit 2 Sim with photo-verification black
08T 38240
4823114015090
The Ajax Hub 2 Jeweller 4G Control unit in black is the heart of the Ajax security system, designed to offer intelligent and highly reliable protection with photo-verification alarm features, 4G communication, and multiple connections.
It supports up to 100 wireless devices, integrates Ethernet + dual SIM (2G/3G/LTE) for continuous connectivity, and provides advanced event and automation management.
- Triple connection: Ethernet + 2 4G SIMs (with automatic fallback)
- Photo-verification support: Photo per alarm / Photo per scenario / Photo on demand / Photo per schedule (with Malevich 2.19+ OS firmware)
- Up to 100 compatible wireless Ajax devices
- Support for 10 sirens or keypads with built-in siren
- Up to 5 radio repeaters
- Up to 25 IP cameras or DVRs, with direct integration for Dahua, Hikvision, Safire, EZVIZ and Uniview
- RTSP protocol support
- Up to 50 total users (including PROs and administrators)
- Up to 32 automation scenarios
- Up to 9 security zones and 50 configurable rooms
€428.56
Items Available: 19
Frequently bought together
Ajax Hub 2 Control unit with support for photo-verification of alarms
Hub 2 monitors the operation of all Ajax devices to alert users of open doors, broken windows, fire threats, and flooding. If burglars break into the house, Hub 2 transmits images from MotionCam detectors and alerts Security 1 of the danger. You will not have to live under the constant supervision of security cameras to know what is going on.
Alarm with photo-verification in 9 seconds
Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When triggered, they take a series of photos and allow you to assess a situation on the facility. Visual verification saves users from worries and security institutions from unnecessary patrol mobilization.
- Motion detected
- Alarm triggered
- Evidence sent
Connection and control via App
Communication with the outside world is crucial for the security system control panel. Its reliability and stability ensures that the alarm is sent to the security institution and users in a timely manner.
Hub 2 can be simultaneously connected to three Internet service providers: via Ethernet cable and 2G, 3G, and LTE 3 cellular networks. Automatic switching between channels occurs in seconds.
Apps allow admin users to manage facility security, change settings of the hub and devices connected to it, create scenarios, and monitor events. From smartphones or PCs. On-site or remotely.
Automated security
Hub 2 allows 32 scenarios to be created and minimize the impact of the human factor on security. The hub can engage or disengage a system or group on programming. Immediately activate a smoke machine if someone enters the building. Shut off the power in the building and turn on emergency lights in case of fire. Or turn off the water in case of flooding. Check lights, electric locks, shutters, and garage doors for on/off by pressing a button or when detecting an alarm.
- Flood prevention system
- Automatic doors and shutters
- Site lighting activated by alarm
Hub 2 Ajax central unit anti-sabotage
Whatever happens to Hub 2, the security institution and users will be informed. No one can disconnect the hub by going unnoticed, even when the system is disarmed. If an intruder attempts to disassemble the device, it will immediately trigger the tamper. The Ajax Cloud server can send notifications about loss of connection to the hub within 60 seconds due to frequent polling. Even if the building runs out of power, the hub protects the facility for up to 16 hours thanks to the included battery backup.
- 12 s device polling
- Detection of loss of connection with the hub in 60 s
- 16 hours of autonomy with backup batteries
Technical specifications of the Ajax Hub 2 Control unit
Ajax System Capabilities
| Feature | Value |
|---|---|
| Ajax wireless devices |
|
| IP cameras or DVRs |
|
| Users |
|
| Automation scenarios |
|
| Safety Areas. | Up to 9 |
| Rooms | Up to 50 |
Jeweller Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology for transmitting alarms and events. |
| Key Features. | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Instant notifications. - Remote configuration via Ajax apps. |
| Operating frequencies. | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Radio signal modulation | GFSK |
| Automatic power control | Reduces power consumption and noise interference. |
| Communication range | Up to 2,000 m (between the hub and connected devices in the open field). Maximum range depends on connected devices. |
| Ping interval | 12 to 300 seconds, configurable via Ajax app by a PRO or administrator. |
| Encrypted communication. | All saved and transmitted data is protected by block encryption with a moving key. |
| Frequency hopping | Prevents radio interference and radio signal interception. |
Wings Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary radio communication technology to transmit photo-verification of alarms. |
| Key Features. | - Two-way communication. - Block encryption with a moving key. - Advanced anti-sabotage system. - Data packet reloading in case of transmission errors. - Photo delivery control. |
| Frequency bands. | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz Based on sales region. |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and noise interference. |
| Communication range | Up to 1,700 m (between the hub and connected devices in the open field). Maximum range depends on connected devices. |
| Encrypted communication. | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping. | Prevents radio interference and radio signal interception. |
Installation and Communication Channels
| Feature | Description |
|---|---|
| Operating voltage | 110-240 V~ |
| Installation | The hub is designed for indoor installation. |
| Ethernet | - 1 8P8C connector - Speed up to 100 Mbps |
| Mobile | 2 micro SIM slots |
| Cellular frequencies | 2G: GSM900/DCS1800 (B3/B8) 3G: WCDMA 850/900/2100 (B1/B5/B8) 4G(LTE): FDD B1/B3/B5/B7/B8/B20 |
| Automatic Switching | - Switching from Ethernet to SIMs - instant. - Switching between 4G (LTE), 3G and 2G networks of the same SIM - instant. - Switching between different SIMs - up to 4 minutes. |
| Channel Priority. | 1. Ethernet 2. Cellular connection |
| Parallel operation. | Communication channels operate in parallel to increase reliability. Most data is transmitted via Ethernet. |
Notifications
| Feature | Description |
|---|---|
| Types of notifications supported | - Push notifications - SMS - Calls |
| Event types. | - Alarms - Malfunctions - Security mode change - System events - Non-security alerts - Automation device events Notification types are set individually for each user. |
Photo-verification
| Feature | Description |
|---|---|
| Photo-verification types | - Photos per alarm - Photos per scenario - Photos per request - Photos per programming The Photos per programming feature is available for hubs with OS Malevich firmware 2.19 or later. |
| Photo delivery time | up to 9 s (default setting) |
| Photo resolution | up to 640 × 480 pixels (depends on the detector) |
| Number of photos in a series | 1 to 5 pictures |
Monitoring
| Feature | Description |
|---|---|
| Supported protocols | - SIA (DC-09) - SurGard (Contact ID) - ADEMCO 685 - Other proprietary protocols |
| Event Types. | - Alarms and system events - Panic button coordinates - Photo-verification |
Power supply
| Feature | Description |
|---|---|
| Main | 110-240 V~, 50/60 Hz Up to 10 W mains power supply. |
| Back-up | Built-in rechargeable battery: Li-ion 3 Аh Runs up to 15 hours in offline mode when Ethernet is not active. The Battery Power Saving function allows you to extend the life of the backup battery. Thehub has a 3-pin battery. To replace the hub's battery, use it. |
| Alternative power supply | - 6 V⎓ via alternative power supply 6V PSU (type A), sold separately. - 12-24 V⎓ via alternative power supply 12-24V PSU (type A), sold separately. |
Antisabotage
| Feature | Description |
|---|---|
| Anti-sabotage tamper | Warning if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication |
| Frequency hopping | The hub sends notifications to all users and the security institution in case of inhibition or loss of connection with devices. |
Housing
| Feature | Description |
|---|---|
| Dimensions | 163 × 163 × 36 mm |
| Weight | 362 g |
| Operating temperatures | -10°C to +40°C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP20 |
Material contained in the package
| Element | Description |
|---|---|
| Main device | Hub 2 (4G) Jeweller |
| Mounting panel | SmartBracket |
| Cables included | - Power cable - Ethernet cable |
| Installation accessories | Installation kit |
| Documentation | Quick Start Guide |
There are no reviews
Data sheet
- Colour: Black
- Type: Wireless control panel
- System: Wireless
