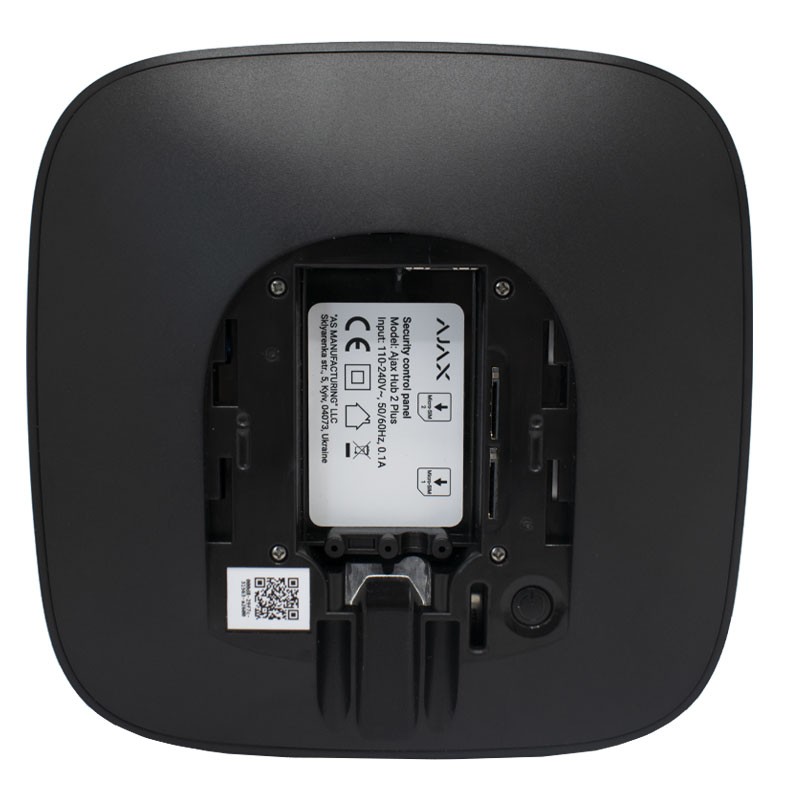

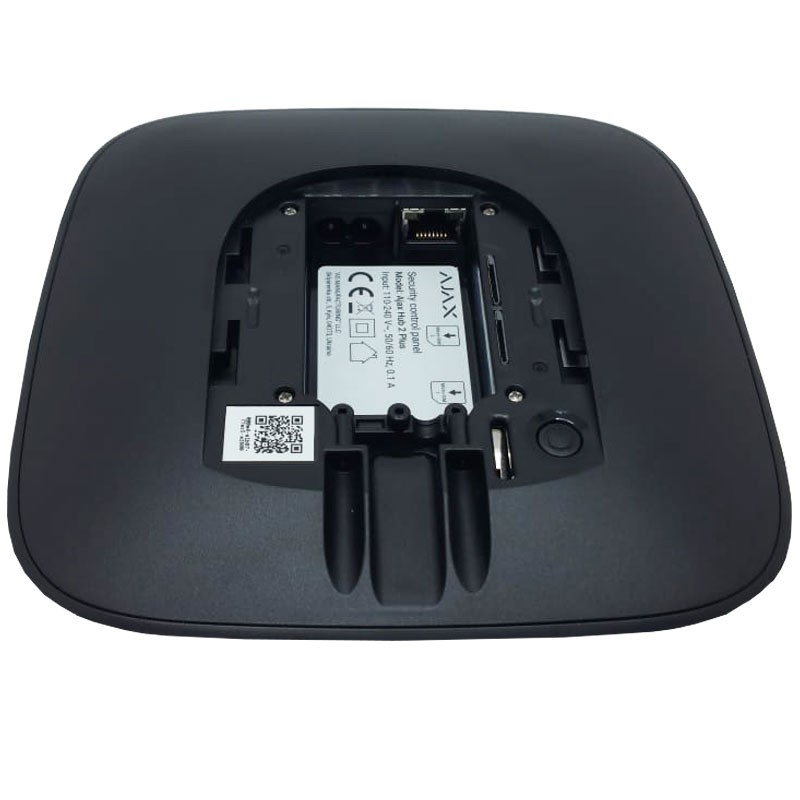

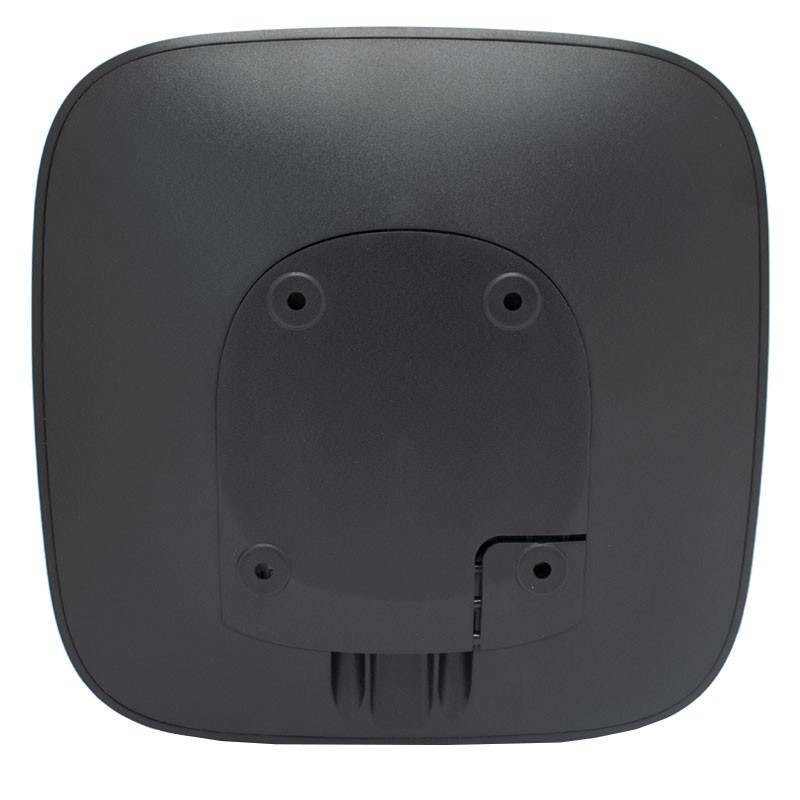

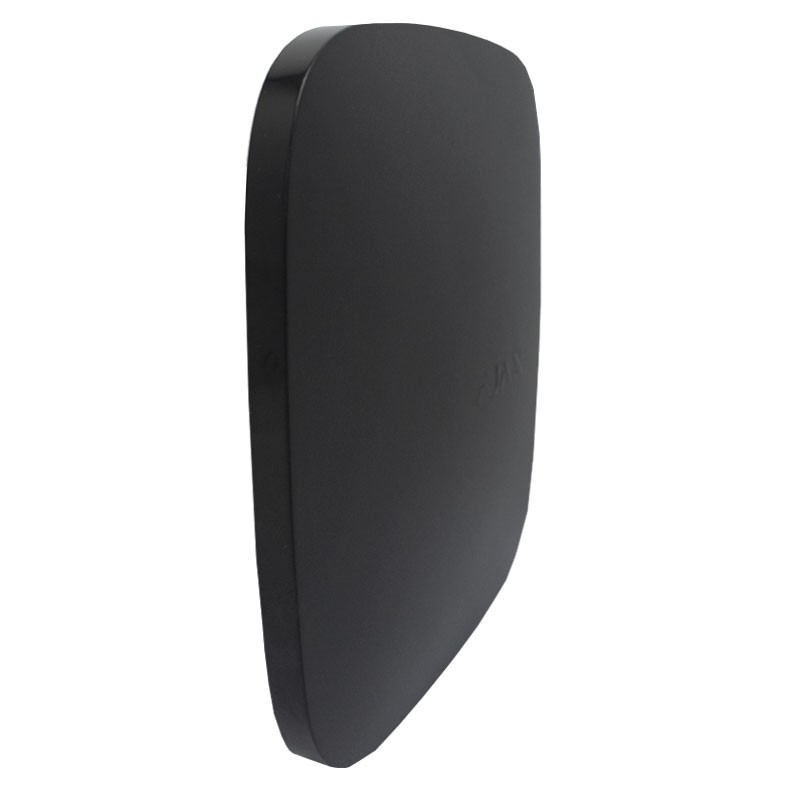

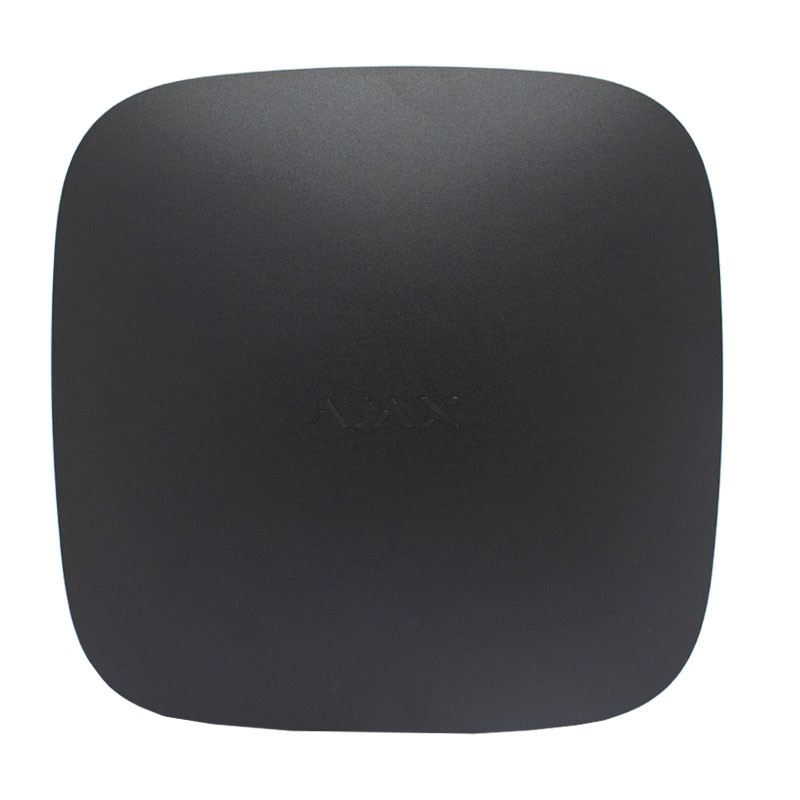

Ajax Hub 2 Plus Jeweller 4G Control Unit 2 Sim with photo-verification black
08T 38244
4823114015151
The Ajax HUB 2 PLUS Jeweller wireless control unit in black is the heart of the Ajax security system, designed to offer maximum protection and reliability with support for photo-verification of alarms. This device ensures stable connection and fast communication, supporting Wi-Fi, Ethernet and two SIM cards (2G/3G/LTE) for secure data transmission.
Compatible with up to 200 wireless Ajax devices, it enables integration of IP cameras and DVRs (up to 100 devices), as well as supporting advanced automation scenarios and managing up to 200 users.
✔ Support for photo-verification, to receive images in case of alarm.
✔ Multiple connection: Wi-Fi, Ethernet and dual SIM (2G/3G/LTE).
✔ Management of up to 200 Ajax devices, including detectors, sirens, keypads and repeaters.
✔ Integration with IP cameras and DVRs (up to 100), compatible with Dahua, Hikvision, Safire, EZVIZ and Uniview.
✔ Support for RTSP protocol for seamless compatibility with video surveillance systems.
✔ Advanced security management: up to 25 areas, 50 rooms and 64 automation scenarios.
✔ Multi-user management: up to 200 registered users.
✔ Intelligent scenarios, to trigger automations based on scheduled events or alarms.
This configuration allows the device to be connected to two separate Internet providers via Ethernet and Wi-Fi, while having two cellular services ready to back up. Switching from one channel to the other is done easily and in seconds.
€532.04
Items Available: 11
: 1
Frequently bought together
Ajax Hub 2 Plus Jeweller Control Unit: Multi Communication and Photo Verification
Continuous communication via Ethernet cable, Wi-Fi, LTE
Hub 2 Plus makes the best connection ever, it has 4 communication channels including high-speed LTE network. This configuration allows the device to connect to two separate Internet providers via Ethernet and Wi-Fi while having two cellular services ready to back up. Switching from one channel to the other is done easily and in seconds.
Photo-verification of alarm in 9 seconds
Photo-verification is the future of the security industry. This technology is the optimal solution for both commercial and residential premises; it is affordable and built with privacy in mind. MotionCam detectors' animated series of photos allow users and CRA operators to assess the situation on the spot. But the cameras are activated only in response to alarms, never on demand.
Hub 2 Plus can handle up to 200 MotionCam detectors and provide photo confirmations of alarms to users and alarm monitoring companies in as little as 9 seconds, even when using SIM cards for communication. Thanks to LTE support.
- Motion detected
- Alarm triggered
- Situation photographed
Jeweller and Wings radio protocol
- Jeweller: We developed the Jeweller radio protocol to ensure uninterrupted operation of all devices within the security system. Jeweller provides two-way communication between the hub and detectors up to 2,000 meters away. It also allows Ajax devices to be remotely controlled and alarm signals to be communicated in less than 0.15 seconds. Jeweller uses time intervals to synchronize communication with connected devices, authentication to eliminate forgery, and encryption to protect against data leakage. It is also an energy-efficient radio protocol, allowing detectors to operate for years with pre-installed batteries;
- Wings: Wings is an innovative radio protocol developed for rapid transmission of visual data over long distances. It uses a dedicated Hub 2 Plus antenna to improve channel reliability. Built-in packet control and re-upload algorithms enable Wings to deliver photos up to 1,700 meters away, even if the signal level is unstable. With Wings, operators and CRA users can see the first snapshot of the situation in as little as 9 seconds after a motion alert.
Safety and security of the Control unit Hub 2
Automated security
Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically turn on and off the entire security system or certain areas as set. In addition, it can instantly activate an intrusion smoke-producing machine, disconnect the power supply and turn on emergency lights in case of fire, or shut off the water in case of a leak. Using automation devices, Hub 2 Plus can control lights, electric locks and shutters. Scenarios can be triggered in response to security mode changes, alarm activation, or button commands.
Protection of large rooms with complex internal organization
Shopping centers, factories, and multi-story villas with outbuildings - Hub 2 Plus is ready to secure even the most complex properties. The new hub controls up to 200 devices. Its radio signal range can reach up to 2,000 meters, while the maximum radio network coverage can reach 35 km2. Hub 2 Plus can manage 25 security areas with a total number of 200 users. This enables security personnel to divide large premises into zones and clearly organize personnel access.
Resistant to sabotage attempts
Whatever happens to Hub 2 Plus, the alarm monitoring company and users will be notified about it. A tamper alarm is triggered when intruders attempt to disassemble the device. If the Ajax Cloud server loses connection to a hub, it will send a notification in as little as 60 seconds, thanks to short ping intervals. Even during a power outage, Hub 2 Plus will continue to protect the premises for up to 15 hours, powered by a built-in battery backup.
- 12-second device polling period
- Detection of loss of connection to a hub in 60 seconds
- Backup battery operation for up to 15 hours
Technical specifications of the Ajax Hub 2 Plus Control unit
Capacity
| Feature | Description |
|---|---|
| Ajax wireless devices | Up to 200 Up to 10 sirens or keypads with a built-in siren and 5 repeaters. |
| IP cameras or DVRs | Up to 100 Seamless integration with Dahua, Hikvision, Safire, EZVIZ and Uniview IP cameras and DVRs. RTSP protocol support. |
| Users | Up to 200 - Any number of administrator users, within the hub limit. - PRO account for installers. - PRO account for installation and monitoring companies. - Access management for users. |
| Automation scenarios | Up to 64 - Responses to alarms. - Scheduled actions. - Responses to security mode change. - Responses to temperature change. - Responses to humidity change. - Responses to CO2 concentration. - Responses to Button pressure. |
| Safety Areas. | Up to 25 |
| Rooms | Up to 50 |
Jeweller Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary wireless communication technology for alarm and event transmission. |
| Key Features | - Two-way communication. - Advanced anti-sabotage system. - Block encryption with mobile key. - Instant notifications. - Remote configuration via Ajax apps. |
| Frequency bands | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz *Based on sales region.* |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and noise interference. |
| Radio signal modulation | GFSK |
| Communication range | Up to 2,000 m (between the hub and connected devices in open field). Maximum range depends on connected devices. |
| Ping interval | 12 to 300 sec (set by a PRO or a user with administrator rights in the Ajax app). |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | Prevents radio interference and radio signal interception. |
Wings Communication Technology
| Feature | Description |
|---|---|
| Description | Proprietary radio communication technology to transmit photo-verification of alarms. |
| Key Features. | - Two-way communication. - Block encryption with a moving key. - Advanced anti-sabotage system. - Data packet reloading in case of transmission errors. - Photo delivery control. |
| Frequency bands | - 866.0-866.5 MHz - 868.0-868.6 MHz - 868.7-869.2 MHz - 905.0-926.5 MHz - 915.85-926.5 MHz - 921.0-922.0 MHz *Based on sales region.* |
| Maximum effective radiated power (ERP) | Up to 20 mW |
| Automatic power control | Reduces power consumption and noise interference. |
| Communication range | Up to 1,700 m (between the hub and connected devices in the open field). The maximum radius depends on the connected devices. |
| Encrypted communication | All saved and transmitted data are protected by block encryption with a moving key. |
| Frequency hopping | Prevents radio interference and radio signal interception. |
Installation and Communication Channels
| Feature | Description |
|---|---|
| Operating voltage | 110-240 V~ |
| Installation | Designed for indoor installation. |
| Ethernet | 1 8P8C connector, up to 100 Mbps. |
| Cellular | 2 micro SIM slots. |
| Cellular frequencies | - 2G: GSM900/DCS1800 (B3/B8) - 3G: WCDMA 850/900/2100 (B1/B5/B8) - 4G (LTE): FDD B1/B3/B5/B7/B8/B20 |
| Wi-Fi | 802.11 b/g/n module, up to 600 Mbps. |
| Automatic switching between communication channels | - Instant switching between Ethernet, Wi-Fi and SIM. - Instant switching between 4G (LTE), 3G and 2G networks with a single SIM. - Switching between SIMs takes up to 4 minutes. |
| Priority between communication channels | 1. Ethernet 2. Wi-Fi 3. Cellular connection |
| System reliability | Communication channels run in parallel to increase system reliability. Most data is transmitted via Ethernet. |
Notifications
| Feature | Description |
|---|---|
| Types of notifications supported | - Push notifications - SMS - Calls |
| Types of events notified | - Alarms - Malfunctions - Security mode changes - System events - Non-security alerts - Automation device events |
| Customization | Notification types are set individually for each user. |
Photo-verification
| Feature | Description |
|---|---|
| Photo-verification types | - Photos per alarm - Photos per scenario - Photos per request - Photos per programming The "Photos per programming" feature is available for hubs with OS Malevich firmware version 2.19 or later. |
| Photo delivery time | Up to 9 s |
| Photo resolution | Up to 640 × 480 pixels (Depends on the detector) |
| Number of photos in a series | From 1 to 5 pictures (default setting) |
Monitoring
| Feature | Description |
|---|---|
| Supported protocols | - SIA (DC-09) - SurGard (Contact ID) - ADEMCO 685 - Other proprietary protocols |
| Event Types | - Alarms and system events - Panic button coordinates - Photo-verification |
Power supply
| Feature | Description |
|---|---|
| Main | 110-240 V~, 50/60 Hz Up to 10 W of mains power. |
| Back-up | - Built-in rechargeable backup battery: Li-ion 3 А-h - Works up to 15 hours in offline mode when Ethernet is not active - The hub comes with a 3-pin battery. To replace it, use the same model. |
| Alternative power supply | - 6 V⎓ (connected via a 6V PSU sold separately) - 12-24 V⎓ (connected via a 12-24V PSU sold separately) |
Antisabotage
| Feature | Description |
|---|---|
| Anti-sabotage tamper | Warning if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Protection against counterfeiting | Device authentication. Proprietary authentication algorithms make it impossible to counterfeit the hub or connected devices. |
| Frequency hopping | Users and the security institution receive notifications when inhibited or when the hub loses connection to devices. |
Case
| Feature | Description |
|---|---|
| Dimensions | 163 × 163 × 36 mm |
| Weight | 351 g |
| Operating temperatures | -10°C to +40°C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP20 |
Package contents
| Element | Description |
|---|---|
| Hub 2 Plus Jeweller | Main device included in the package |
| SmartBracket mounting panel | Mounting bracket for wall installation |
| Power cord | For connection to the power supply |
| Ethernet cable | For wired network connection |
| Installation kit | Set of mounting accessories |
| Quick Start Guide | Instruction manual for installation and operation |
Data sheet
- Colour: Black
- Type: Wireless control panel
- System: Wireless
