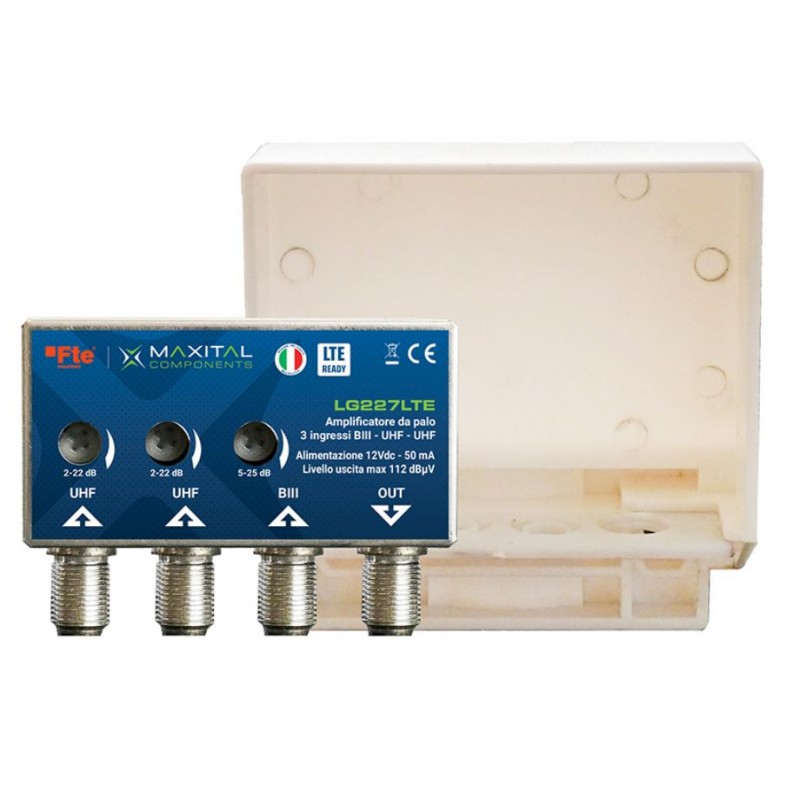

Mast amplifier FTE 3 inputs VHF/UHF with LTE filter LG227LTE
FTE LG227LTE
8436545300305
FTE mast amplifier with integrated LTE filter, high gain and professional shielding, with the following features:
-
Inputs: 3 (1 VHF BIII + 2 UHF)
-
Supported bands: BIII: 174 ÷ 230 MHz - UHF: 470 ÷ 790 MHz (x2)
-
Outputs: 1
-
Power supply: 12 VDC (via coaxial cable)
-
Consumption: 80 mA
-
Frame type: Shielded zamak
-
Enclosure: Plastic, rainproof
-
Mounting: On mast (max diameter 60 mm)
Connection from remote power supply via coaxial cable through 12V power supply codes: LPS200 / LPS202 (to be purchased separately).
€28.76
Items Available: 47
Frequently bought together
Professional mast amplifier for separate VHF and UHF signals
The FTE mast amplifier is the ideal solution for separate band amplification of DTT VHF and UHF signals in small to medium-sized installations. Equipped with 3 distinct inputs (1 BIII + 2 UHF), this device ensures excellent signal quality thanks to gain adjustment and complete shielding against interference.
High performance with integrated LTE filter
The LG227LTE model integrates an LTE/4G filter, essential for protecting reception from disturbances generated by mobile networks. This feature ensures stable signal distribution, free from interference, improving viewing quality on digital terrestrial channels.
The gain is 16 dB for the VHF band and 26 dB for each UHF input, adjustable up to 20 dB to adapt to different reception conditions.
Shielded structure and weather-resistant installation
Made with a zamak frame and fully shielded metal covers, the amplifier provides protection from external electromagnetic disturbances. It is equipped with a rainproof plastic enclosure and a strap for pole mounting (maximum diameter 60 mm), making it suitable for outdoor installation and variable weather conditions.
Easy power supply via remote power supply
The device can be powered via coaxial cable using a 12 V power supply (not included – compatible with models LPS200 / LPS202), with a maximum consumption of 80 mA. This method simplifies installation and system management, avoiding additional wiring.
Recommended applications
The FTE amplifier is designed for:
-
DTT digital terrestrial TV systems
-
Reception from logarithmic or combined BIII+UHF antennas
-
Domestic installations or small centralized distributions
-
Areas with LTE / 4G disturbances
-
Systems where differentiated amplification between bands is required
Technical Features FTE Mast Amplifier
| Inputs | 3 (1 VHF BIII + 2 UHF) |
| Supported bands | BIII: 174 ÷ 230 MHz | UHF: 470 ÷ 790 MHz (×2) |
| Outputs | 1 |
| Gain | VHF: 16 dB | UHF: 26 dB (each) |
| Gain adjustment | VHF: up to 16 dB | UHF: up to 20 dB |
| Maximum output level | 112 dBµV |
| Noise figure | ≤ 4 dB |
| Power supply | 12 V DC (via coaxial cable) |
| Consumption | 80 mA |
| LTE / 4G filter | Integrated |
| Frame type | Shielded zamak |
| Enclosure | Rainproof plastic |
| Mounting | On pole (max Ø 60 mm) |
| Operating temperature | -10°C ÷ +55°C |
| Dimensions (W × H × D) | 83 × 78 × 18 mm |
| External power supply | From remote power supply (not included) |
Materiale ok
Non mi hanno dato mai problemi di funzionamento
Amplificatore molto compatto. Funziona alla perfezione.
Prodotto eccellente soddisfatto del acquisto
Prodotto come da descrizione. Ottimo il montaggio con la fascetta inclusa e le connessioni a F.
Data sheet
- Type: Amplifiers
- Version: 3IN/2OUT
- Model: Pole
