Fracarro Pole Mounted Amplifier 2 Input Bands III+DAB + UHF, UHF 28/28db 223756
FRA 223756
8016978104192
Fracarro 2-Input Pole Amplifier is ideal for optimizing the reception of TV signals in bands III+DAB and UHF, thanks to a high gain of 28 dB for each input and independent adjustment up to 15 dB. Designed with a built-in 5G filter, it ensures an interference-free signal and maximum reliability, with the following features:
-
Number of inputs: 2 III+DAB+UHF, UHF
-
Frequencies: III+DAB: 174-240 MHz, - UHF: 470-694 MHz
-
Filter: 5G integrated
-
Connectors: F female
-
Supply voltage: 12V
-
Power consumption: 60 mA
-
Degree of protection: IP43
-
Dimensions: 120x50x105 mm
€26.71
Items Available: 271
: 32
Fracarro Pole Mounted Amplifier 2 Input Bands III+DAB + UHF, UHF
Rugged construction and advanced protection

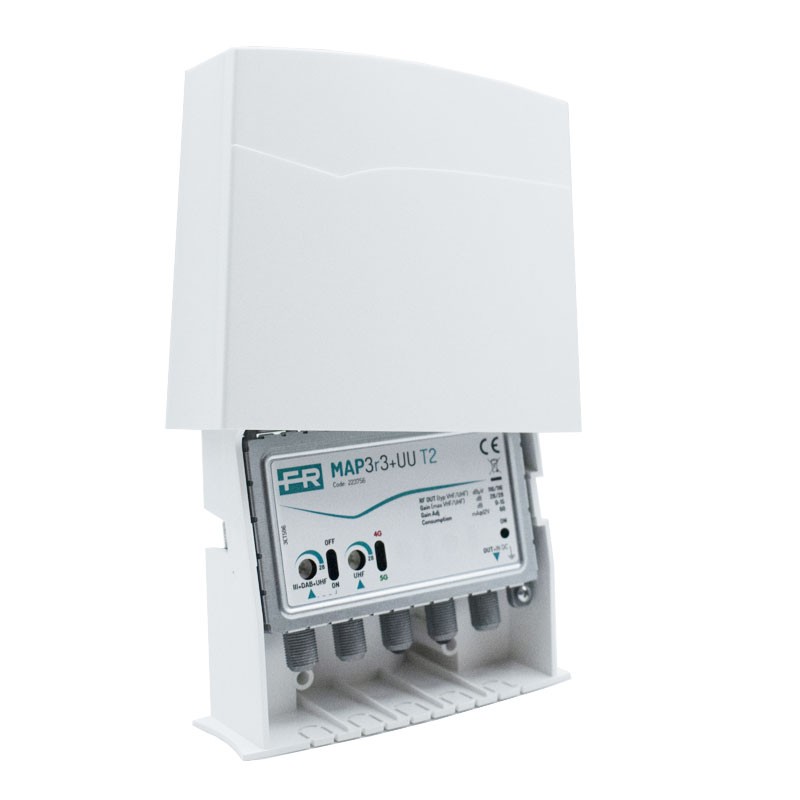

The amplifier is constructed with a die-cast ZAMA chassis with metal covers for total shielding against electromagnetic interference (LTE Free). The protective ABS bell is designed for outdoor use and includes:
- Slide opening for easy maintenance
- Tilting system for convenient access to the amplifier section
IP43 rating provides dust and water splash resistance.
Optimized performance and precise adjustments
With independent gain adjustments, each input can be customized by up to 15 dB, ensuring optimal signal quality according to specific needs. The built-in 5G filter eliminates interference from LTE signals, maintaining stable and clean reception.
Ideal applications:
- Home TV systems: Improving TV signal quality in residential environments
- Critical area deployments: Systems where LTE interference can compromise the signal
- Outdoor installations: Designed to withstand weather conditions
Technical Specifications.
| Supply voltage | 12V |
|---|---|
| Power consumption | 60 mA |
| Impedance | 75 ohms |
| Connectors | F female |
| Filter | 5G |
| Number of inputs | 2 |
| Inputs | III+DAB + UHF, UHF |
| Frequency III, DAB | 174 - 240 MHz |
| UHF frequency | 470 - 694 MHz |
| Gain III+DAB+UHF | 28 dB |
| UHF Gain | 28 dB |
| Gain adjustment III+DAB+UHF | 15 dB |
| UHF gain adjustment | 15 dB |
| Typical noise figure III+DAB | 7 dB |
| Typical UHF noise figure | 7 dB |
| Number of outputs | 1 |
| Output level III+DAB | 112 dBµV |
| UHF output level | 116 dBµV |
| Working temperature | -10 to +55 degrees |
| Degree of protection | IP43 |
| Product dimensions | 120x50x105 mm |
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 2IN/1OUT
- Model: Pole
