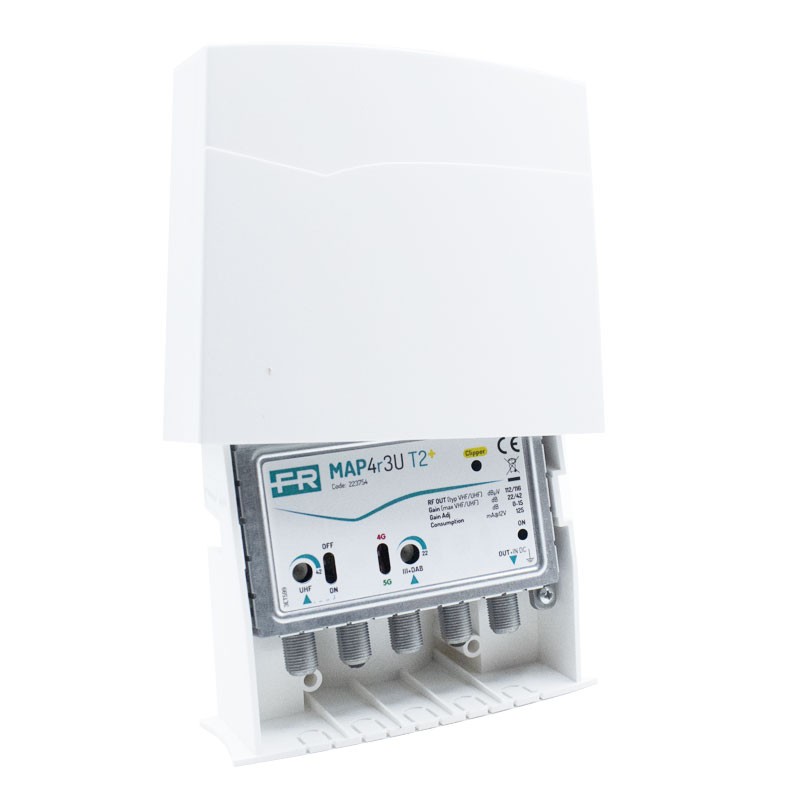

Fracarro Pole Mounted Amplifier 2 Input Bands III+DAB,UHF 22/42db 223754
FRA 223754
8016978104178
Fracarro 2-Input Pole Amplifier is ideal for optimizing the reception of TV signals in bands III+DAB and UHF, thanks to a high gain of 42 dB for each input and independent adjustment up to 15 dB. Designed with a built-in 5G filter, it ensures an interference-free signal and maximum reliability, with the following features:
-
Number of inputs: 2 III+DAB, UHF
-
Frequencies: III+DAB: 174-240 MHz, - UHF: 470-694 MHz
-
Filter: 5G integrated
-
Connectors: F female
-
Supply voltage: 12V
-
Power consumption: 125 mA
-
Degree of protection: IP43
-
Dimensions: 120x50x105 mm
€30.14
Items Available: 360
: 117
Fracarro Pole Mounted Amplifier 2 Input Bands III+DAB, UHF
Rugged construction and advanced protection
The amplifier is constructed with a die-cast ZAMA chassis with metal covers for total shielding against electromagnetic interference (LTE Free). The protective ABS bell is designed for outdoor use and includes:
- Slide opening for easy maintenance
- Tilting system for convenient access to the amplifier section
IP43 rating provides dust and water splash resistance.
Optimized performance and precise adjustments
With independent gain adjustments, each input can be customized by up to 15 dB, ensuring optimal signal quality according to specific needs. The built-in 5G filter eliminates interference from LTE signals, maintaining stable and clean reception.
Ideal applications:
- Home TV systems: Improving TV signal quality in residential environments
- Critical area deployments: Systems where LTE interference can compromise the signal
- Outdoor installations: Designed to withstand weather conditions
Technical Specifications
| Supply voltage | 12V |
|---|---|
| Power consumption | 125 mA |
| Impedance | 75 ohms |
| Connectors | F female |
| Filter | 5G |
| Number of inputs | 2 |
| Inputs | III+DAB, UHF |
| Frequency III, DAB | 174 - 240 MHz |
| Frequency UHF | 470 - 694 MHz |
| Gain III+DAB | 22 dB |
| UHF Gain | 42 dB |
| Gain adjustment III+DAB | 15 dB |
| UHF gain adjustment | 15 dB |
| Typical noise figure III+DAB | 3 dB |
| Typical UHF noise figure | 5 dB |
| Number of outputs | 1 |
| Output level III+DAB | 112 dBµV |
| UHF output level | 116 dBµV |
| Working temperature | -10 to +55 degrees |
| Degree of protection | IP43 |
| Product dimensions | 120x50x105 mm |
Excellent facteur signal bruit bon rapport qualité prix
Perfetto, risolto tutti i problemi di ricezione
je n'ai jamais reçu le colis commandé le 26 septembre,il est perdu en France par le transporteur "colis privé" qui ont mis en status livré ! une enquête est en cours depuis le 10 octobre nous sommes le 17 octobre aucunes nouvelles de personnes
colis N90 001 763 649
ottimo ampli da palo fracarro una garanzia
Data sheet
- Type: Amplifiers
- Version: 2IN/1OUT
- Model: Pole
