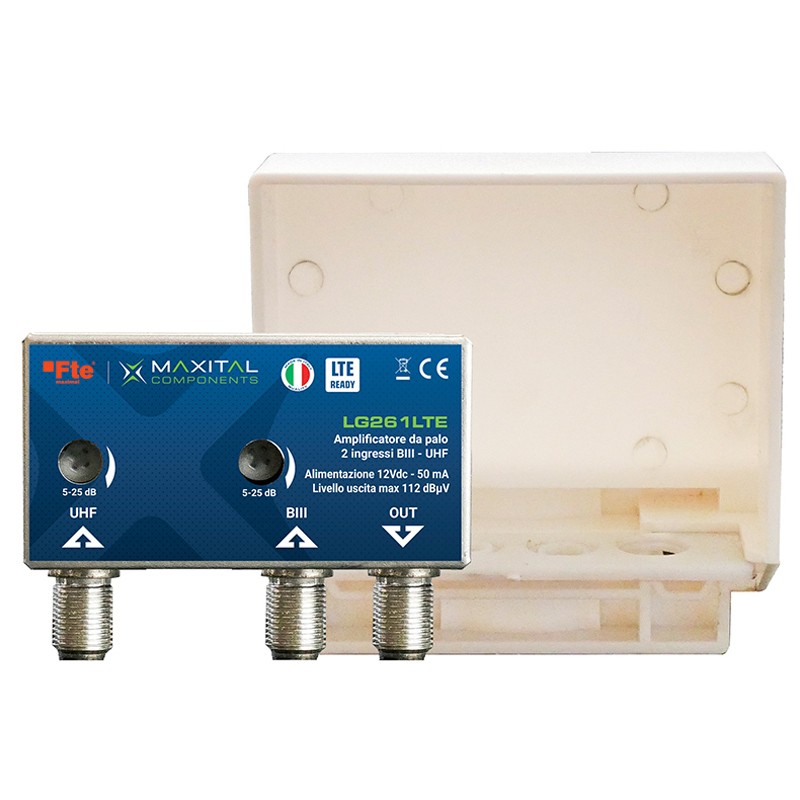

FTE Pole Mount Amplifier 2 Input VHF/UHF LTE LG261LTE
FTE LG261LTE
8436545300312
FTE pole mounted amplifier with 2 inputs BIII + UHF, 12V power supply, 25/25 dB gain, 112 dBµV output level, fully shielded, equipped with internal LTE filter and rainproof plastic case.
€25.69
Items Available: 5
: 1
Frequently bought together
Strength Tip:
- Separate VHF / UHF band amplification
- Gain 25 / 25 dB and output levels 112 dBµV
- Gain adjustment 20 dB
- Integrated LTE/4G filter
- Fully shielded metal chassis and F-type connectors
- 12 VDC power supply
- Equipped with plastic case and clamp for pole mounting
- 100% Made in Italy.
Applications:
- Amplifies DTT signals coming from a single logarithmic or combined BIII+UHF antenna oriented on a repeater from which it is possible to receive signals in the BIII and UHF bands.
- Suitable for the distribution of signals in small installations
- From remote control via coaxial cable through 12 V power supply with art. LPS200 / LPS202.
Technical data:
- N° 2 inputs (BIII + UHF)
- Bands 174 ÷ 230 / 470 ÷ 790
- No. of outputs 1
- Gain - dB 25 / 25
- Gain adjustment - dB 20 / 20
- Max. output level VHF / UHF - dBµV 112
- Noise figure - dB <= 4
- Supply voltage - VDC 12
- Absorption - mA 50
- Maximum mast diameter - mm 60
- Type of amplification VHF / UHF separate
- Chassis type Metal cover
- Type of container ABS
- Operating temperature - °C -10 ÷ 55
- Dimensions (W x H x D) - mm 67 x 50 x 22
- Weight - g 215
- Complies with EN 50083-2 standards.
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 2IN/1OUT
- Model: Pole
