Fracarro mast amplifier MAP3r3UU 2 5G with 3 inputs III+DAB/UHF/UHF, gain 26/28 dB and dual output. Independent adjustments, integrated 5G filter at 694 MHz, LTE Free shielding and professional ZAMA structure.
-
3 inputs: III+DAB / UHF / UHF
-
Gain: 26 dB (VHF), 28 dB (UHF)
-
2 outputs for signal distribution
-
Integrated 5G/4G LTE filter (694 MHz)
-
Independent gain adjustment (015 dB) for each input
-
Output level up to 116 dBµV (UHF)
-
Low noise figure for clean signal
-
Die-cast ZAMA body and ABS IP66 cover
-
Selectable remote power supply and status LED
€28.26
Items Available: 2
: 1

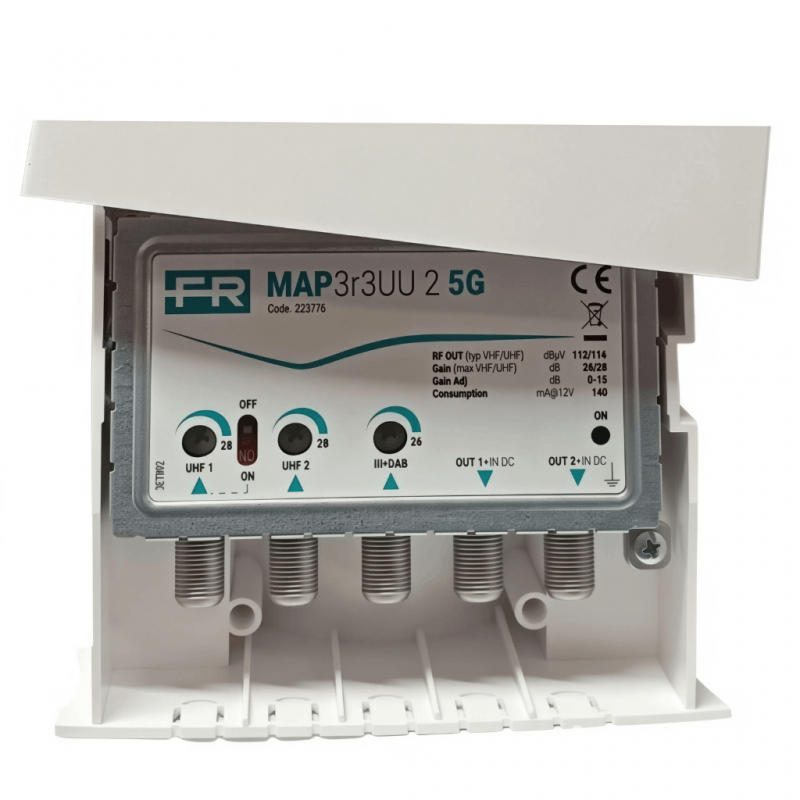

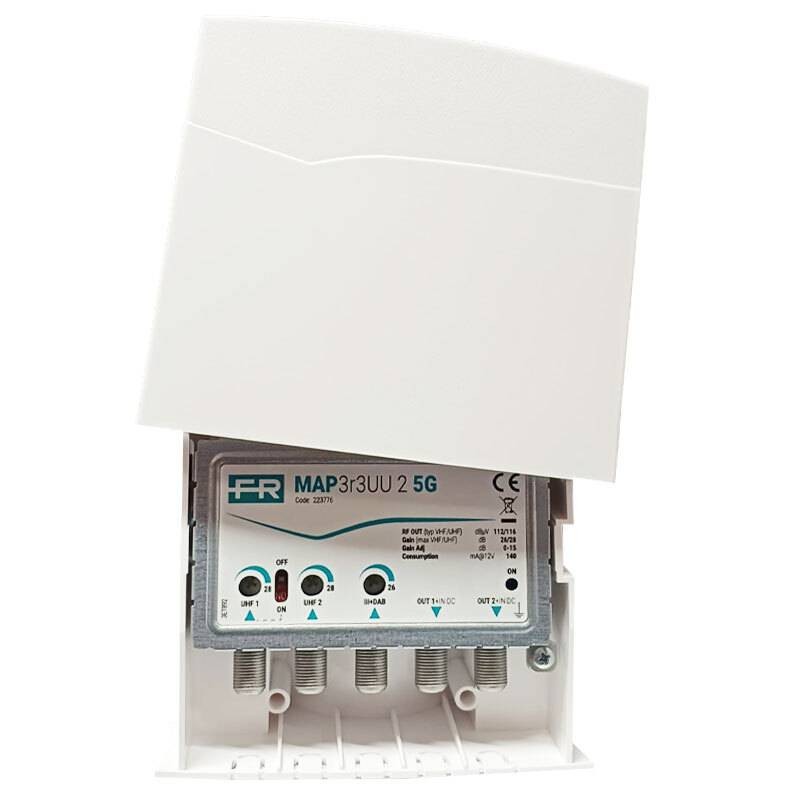

Fracarro MAP3r3UU 2 5G: professional amplification with integrated 5G protection
The Fracarro 223776 mast amplifier is a high-performance device designed for professional-level TV and DAB systems. Thanks to the 3 separate inputs (III+DAB/UHF/UHF) and independent amplifications, it offers maximum configuration flexibility to manage multiple antennas or signals from different directions. With a gain of up to 28 dB and output level up to 116 dBµV, it ensures stable and quality distribution even in complex or communal networks.
Integrated 5G filter for interference-free performance
The device integrates a 5G and 4G LTE filter at 694 MHz, which eliminates interference generated by new generation mobile networks, providing superior protection compared to external filters. This LTE Free technology preserves signal quality across all bands, improving reception and reducing background noise.
Robust construction and professional-grade shielding

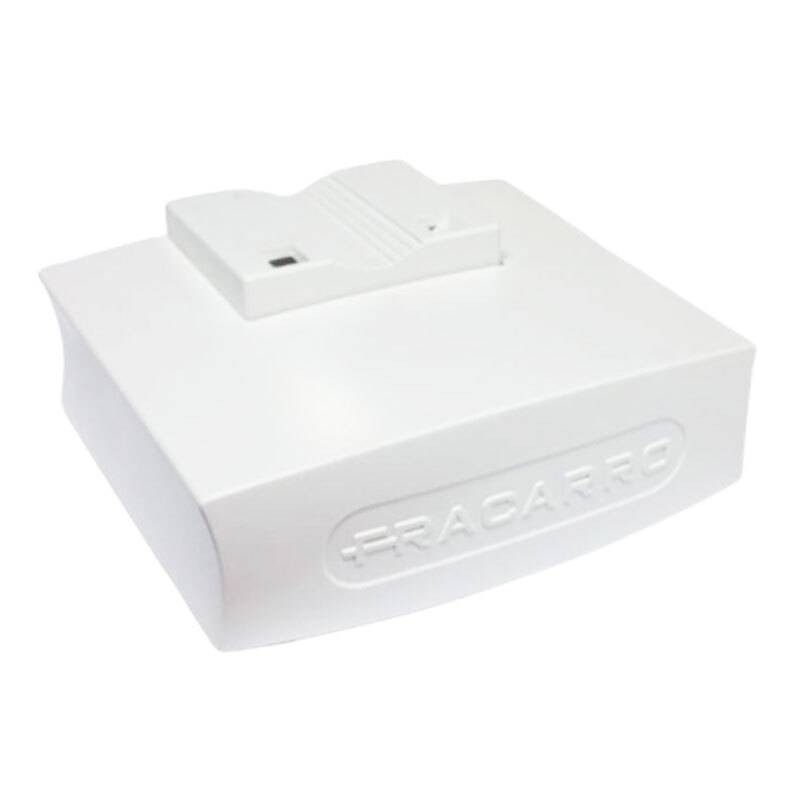

The amplifier body is made of die-cast ZAMA, with metal covers for complete shielding against electromagnetic disturbances and radio interference. The protective ABS bell with sliding opening and tilting system facilitates installation and maintenance operations, while ensuring resistance to weather conditions (IP66).
Intelligent management and selectable remote power supply
Each input has independent gain adjustments (015 dB) for perfect signal balancing. The remote power supply selector allows powering amplifiers or preamplifiers via the UHF or V+U input, depending on the system configuration. The status LED indicates the correct power supply of the device, ensuring immediate control during installation.
Compliance and safety guaranteed
The amplifier is RED Compliant, in accordance with European directives on Electromagnetic Compatibility (EMC), Safety and Radio Spectrum, ensuring reliability and long-lasting performance. The included fastening strap allows stable installation on poles up to 60 mm in diameter, making installation quick and secure.
Technical features
| Parameter | Value |
|---|---|
| Number of inputs | 3 |
| Inputs | III+DAB, UHF, UHF |
| Frequencies | |
| Band III, DAB | 174 – 240 MHz |
| UHF Band | 470 – 694 MHz |
| Gain | |
| III + DAB | 26 dB |
| UHF 1 | 28 dB |
| UHF 2 | 28 dB |
| Gain adjustment | |
| III + DAB | 15 dB |
| UHF 1 | 15 dB |
| UHF 2 | 15 dB |
| Typical noise figure | |
| III + DAB | 5 dB |
| UHF | 7 dB |
| Number of outputs | 2 |
| Output level | |
| III + DAB | 112 dBµV |
| UHF | 116 dBµV |
| Connectors | F female |
| Clipper | No |
| Power supply | |
| Power supply voltage | 12 V |
| Consumption | 140 mA @12V |
| Impedance | 75 Ω |
| Operating temperature | -10 ÷ +55 °C |
| Protection | IP43 |
| Compliance | EN50083-2: 2006-06 |
