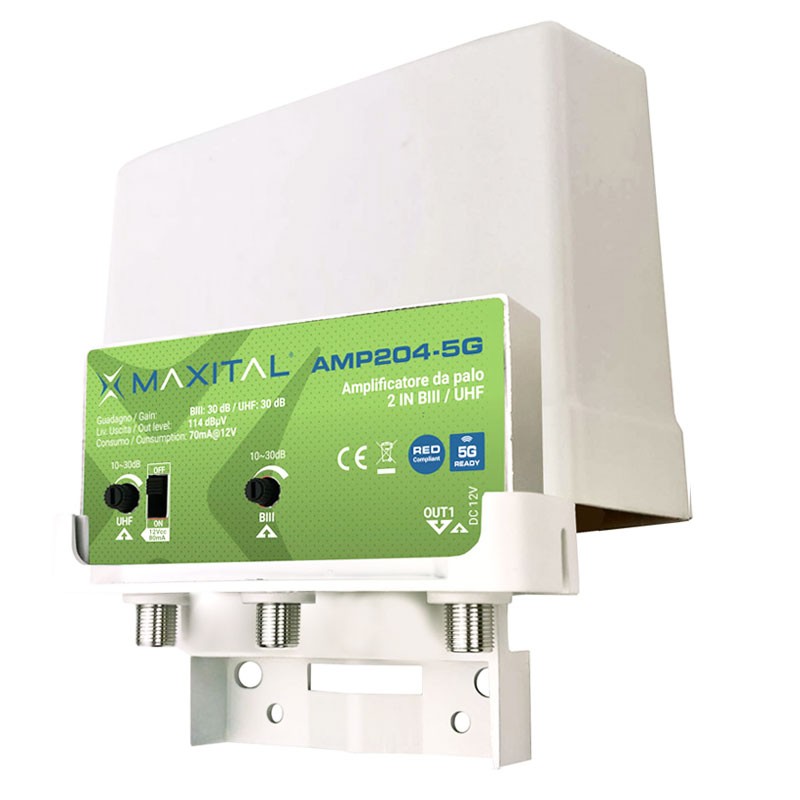

FTE 5G Pole Mount Amplifier 2 Inputs BIII/UHF 26/28dB AMP204-5G
FTE AMP204-5G
8436545303566
FTE Maxital AMP series pole mount amplifier FTE model AMP204-5G, with the following features:
- Inputs 2 ( BIII / UHF)
- Bands 174÷230/ 470÷694
- No. outputs 1
- Gain: dB 26 / 28
- Gain adjustment - dB 20 / 20
- Max digital output level - dBµV 115
- Noise figure - dB <= 4
- Supply voltage 12 VDC
- Power consumption: 90mA
- Maximum pole mount diameter: 60mm
- Type of amplification: separate BIII/ UHF
Equipped with 5G internal filter and rainproof plastic case.
It is used for small/medium installations, power supply via power supply unit (code LPS200) to be purchased separately.
€25.00
Out of stock
Incoming
Strengths:
- High gain
- Separate amplification BIII - UHF
- Integrated 5G filter
- Low noise figure
- 20 dB gain adjustment
- Fully shielded metal chassis and F-type connectors
- 12 VDC power supply
- Equipped with plastic case and clamp for pole mounting
- 100% made in Italy
Other technical data:
- Zama frame type: with metal covers
- Case type: plastic
- Operating temperature: -10/+55°C
- Dimensions ( W x H x D) - mm 83 x 78 x 28
- Weight: 220 grams approx.
- Complies with EN 50083-2 standards
Data sheet
- Type: Amplifiers
- Version: 2IN/1OUT
- Model: Pole
