Fracarro MAP PRO 5G 3-input +DAB, UHF, UHF pole-mount amplifier 223770
FRA 223770
8016978102105

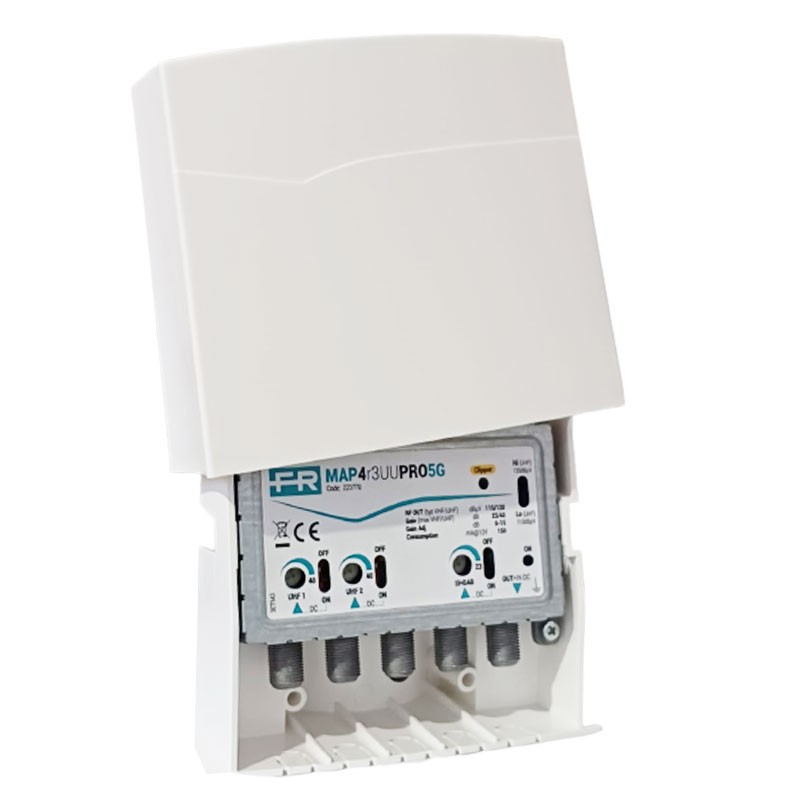

Fracarro MAP PRO 5G high-performance pole-mounted amplifier with the following features:
- Number of inputs: 3
- Type of inputs: 3+DAB, UHF
- Gain: dB 23,40,40
- Output level dBµV: 115/120
- mA consumption @ 12V: 150
- Built-in 5G filter and clipper functionality
€38.57
Items Available: 21
: 14
Advantages:
- "Hi/Low" selector: allows you to adjust the maximum UHF output signal level to two different levels (110 dBµV and 120 dBµV), so you can quickly set the right UHF level according to the size of the coaxial system to be served.
- Built-in 5G filter: to eliminate LTE 4G interference at 790 MHz and 5G interference at 694 MHz; providing connections with more protection from the elements than an external filter
- Clipper functionality: found on all models, automatically limits device gain to ensure maximum RF output level and minimize intermodulation
- Die-cast ZAMA chassis with metal covers to ensure high shielding to LTE noise

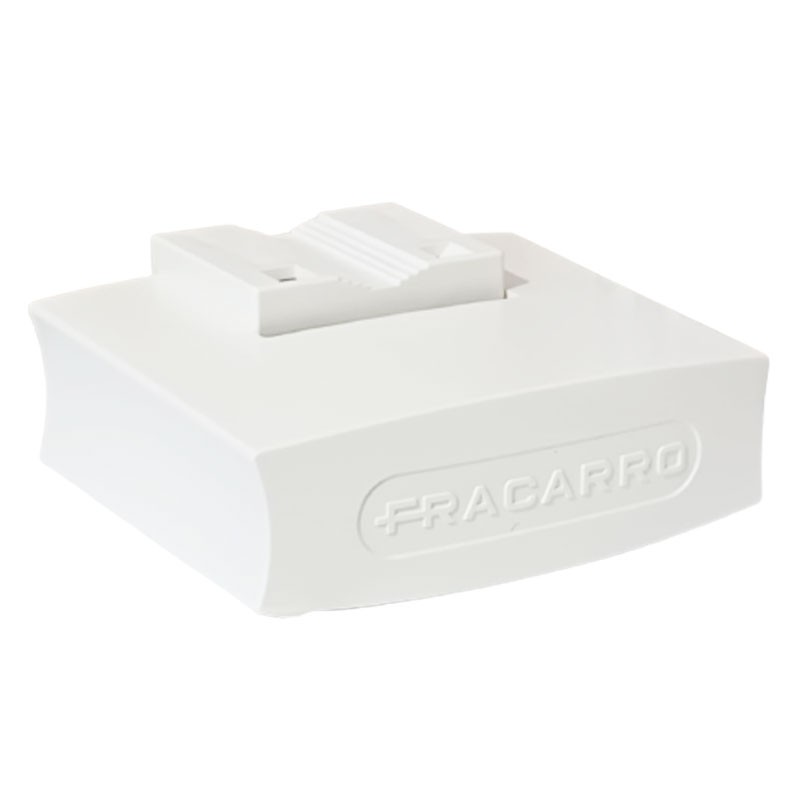

- The new outdoor protective bell made of ABS features a slide opening and tilting system for the amplifier section to make the installer's job easier when connecting and setting up the pole-mounted amplifier
Fantastico questo amplificatore ma del resto fracarro e sempre un prodotto buonissimo come gli altri oggetti con questa marca.
Fa tutto quello che ci si aspetta come da scheda tecnica
Fracarro è un riferimento per il mondo della trasmissione dei segnali
Mi aspettavo un amplificatore più professionale ma pultroppo non ho risolto i miei problemi di assenza di segnale.
Data sheet
- Type: Amplifiers
- Model: Pole
