Amplifier for mast Fracarro 1 input UHF 42dB 223752
FRA 223752
8016978104154

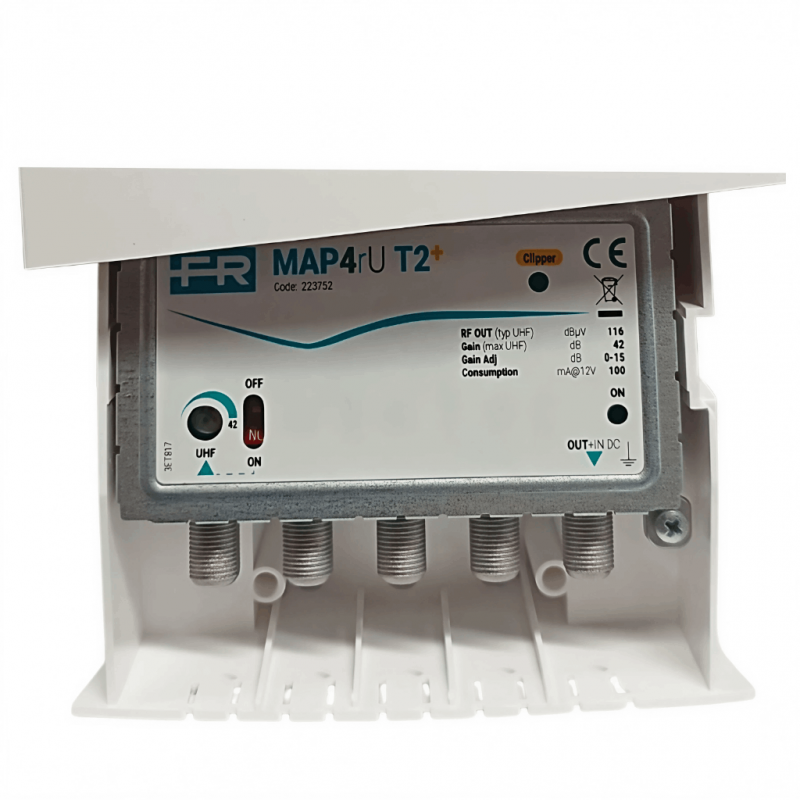

Fracarro MAP4rU T2+ UHF mast amplifier with gain up to 42 dB and output level up to 116 dBµV. Equipped with integrated 5G filter, CLIPPER anti-intermodulation technology and total LTE Free shielding in die-cast ZAMA.
-
1 UHF input with gain up to 42 dB
-
Gain adjustment 015 dB
-
1 Output level 116 dBµV
-
Integrated 5G filter at 694 MHz (LTE Free)
-
CLIPPER technology anti-signal saturation
-
Low noise figure
-
Selectable remote power supply and status LED
-
Die-cast ZAMA body with total shielding
-
Protective ABS IP66 bell with sliding opening
€27.50
Items Available: 155
: 140
Fracarro MAP4rU T2+: power and precision for professional UHF systems
The Fracarro 223752 mast amplifier is designed for professional applications in the UHF band, ensuring high performance and stability even in the presence of difficult signals. Thanks to T2 technology and the integrated 694 MHz filter, it eliminates interference caused by 4G and 5G mobile transmissions, ensuring a clean and disturbance-free signal. The adjustable gain from 0 to 15 dB allows perfect balancing of the input level based on the system characteristics.
CLIPPER technology: constant performance and stable signal
The exclusive CLIPPER technology patented by Fracarro automatically limits the gain of the device in the UHF band, avoiding distortions and maintaining the maximum available RF level (116 dBµV). A dedicated LED signals the activation of the control function, ensuring precise and safe signal management.
Advanced protection and quality construction

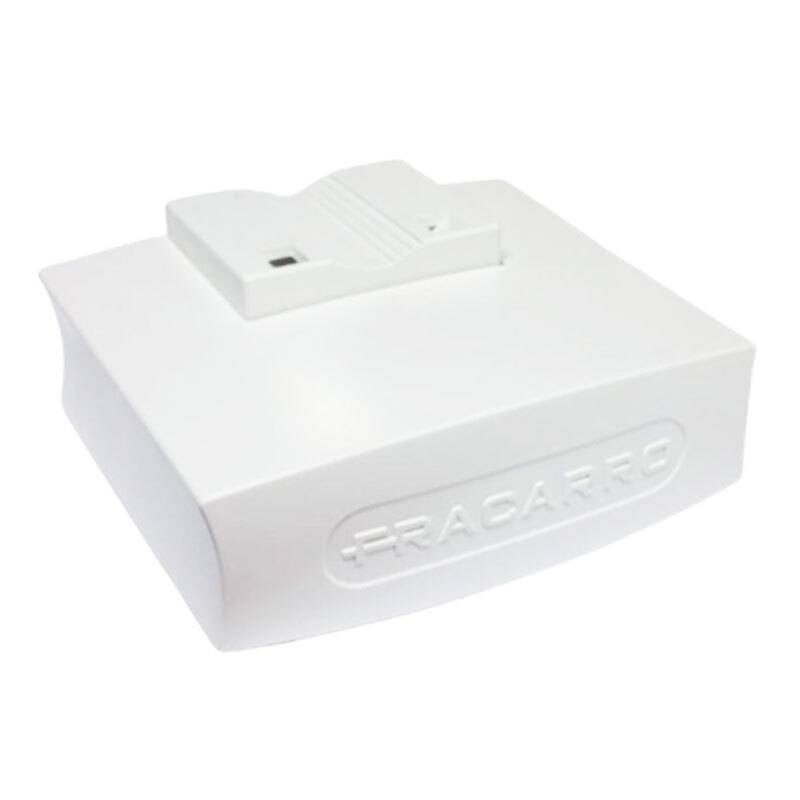

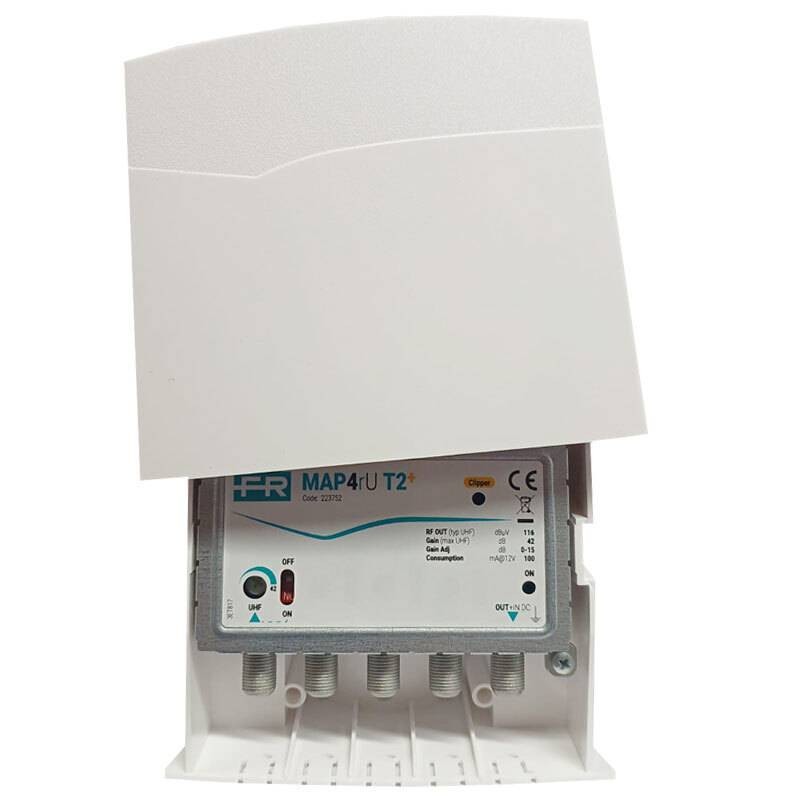

The die-cast ZAMA body with metal covers offers complete shielding against electromagnetic interference (LTE Free), ensuring maximum reliability and durability over time. The protective ABS bell with sliding opening and tilting system allows quick access to the connectors and simplifies installation and maintenance operations.
Flexible remote power supply and guaranteed safety
The amplifier has a selector for remote power supply, which can be activated on the UHF or V+U input depending on the system requirements. A status LED indicates the correct power supply of the device. The product is RED Compliant, in accordance with European directives on Electromagnetic Compatibility, Safety and Radio Spectrum.
Simple and robust installation
The amplifier is supplied with a fastening strap compatible with poles up to 60 mm in diameter, ensuring stability and safety even in outdoor installations. The IP66 bell effectively protects it from rain, humidity and dust, making it suitable for any environmental context.
Technical characteristics
| Parameter | Value |
|---|---|
| Number of inputs | 1 |
| Inputs | UHF |
| Frequencies | |
| UHF Band | 470 – 694 MHz |
| Gain | |
| UHF | 42 dB |
| Gain adjustment | |
| UHF | 15 dB |
| Typical noise figure | |
| UHF | 3 dB |
| Number of outputs | 1 |
| Output level | |
| UHF | 116 dBµV |
| Connectors | F female |
| Clipper | Yes |
| Filter | 5G |
| Power supply | |
| Power supply voltage | 12 V |
| Consumption | 100 mA @12V |
| Impedance | 75 Ω |
| Operating temperature | -10 ÷ +55 °C |
| Protection | IP43 |
| Compliance | EN50083-2: 2006-06 |
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 1IN/1OUT
- Model: Pole
