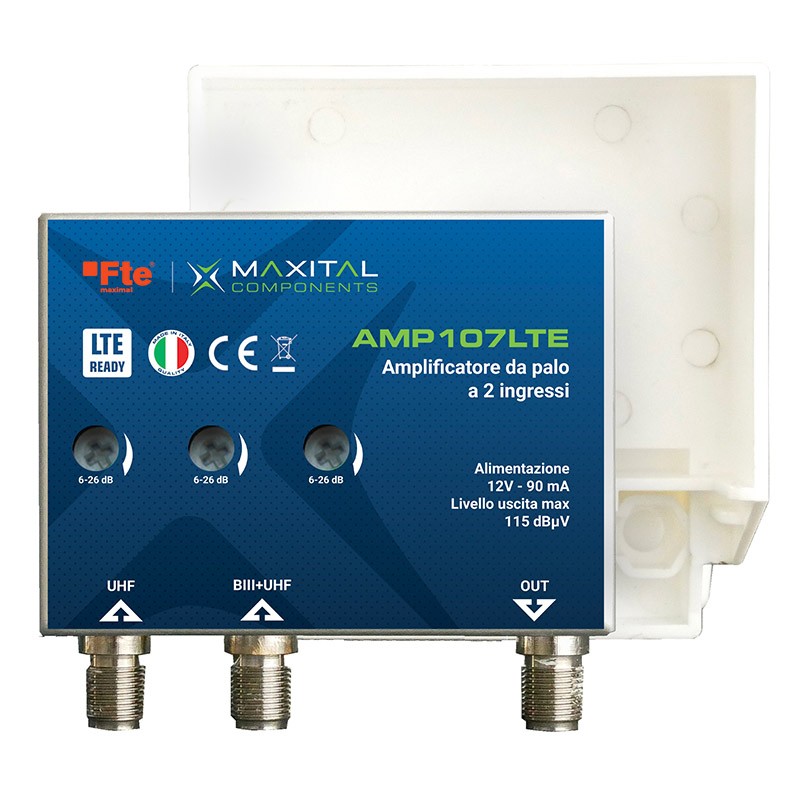

Pole Mount Amplifier FTE 2 Input LOG / UHF AMP107LTE
FTE AMP107LTE
8436545300701
FTE AMP series pole-mount amplifier 2 inputs BIII+ UHF (C5-C60) / UHF (C21-C60), with 26 dB gain and 115 dBµV output level, 12 V power supply, fully shielded and equipped with rainproof plastic case.
€33.54
Items Available: 3
Frequently bought together
Strengths
- High gain
- Separate VHF - UHF amplification
- Integrated LTE filter
- Low noise figure
- Gain adjustment 20 dB
- Fully shielded metal chassis and F-type connectors
- 12 VDC power supply
- Equipped with plastic case and clamp for pole mounting
- 100% made in Italy.
Applications:
- It is used for medium-small installations; power supply through LPS200.
Technical Data:
- Inputs 2 ( BIII + UHF / UHF)
- Bands 174 ÷ 790 / 470 ÷ 790
- N° outputs 1
- Gain - dB 26 / 26 - 26
- Gain adjustment - dB 20 / 20 - 20
- Digital output max level - dBµV 115
- Noise figure - dB <= 4
- Supply voltage - VDC 12
- Absorption - mA 90
- Maximum pole diameter - mm 60
- Type of amplification VHF / UHF separate
- Frame type Zamak with metal covers
- Type of container Plastic
- Operating temperature - ° C -10 to 55
- Dimensions (W x H x D) - mm 83 x 78 x 28
- Weight - g 220
- Complies with EN 50083-2 standards.
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 2IN/1OUT
- Model: Pole
