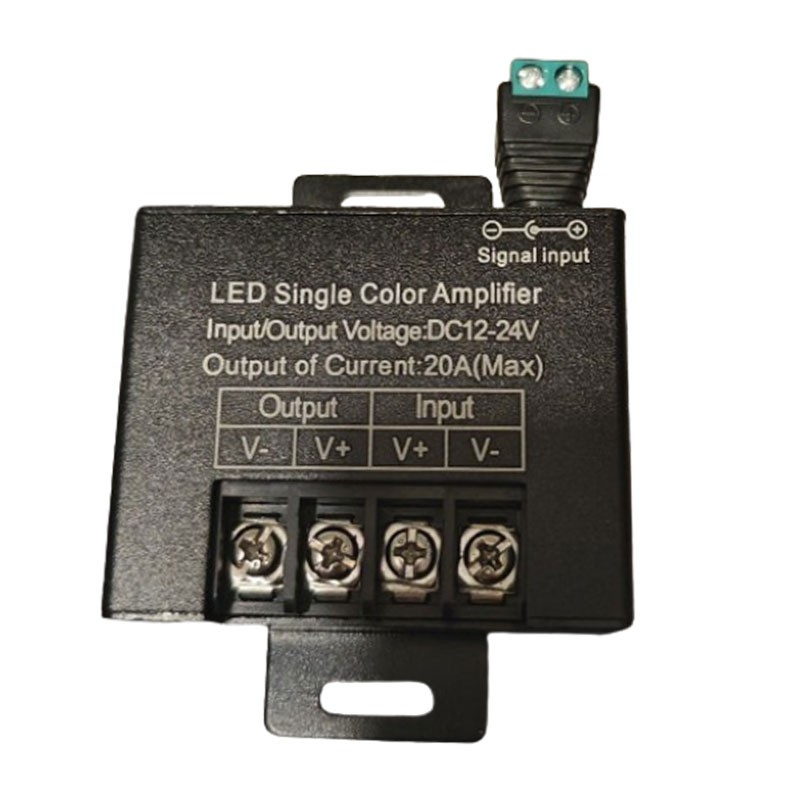

Ledco Dimmer Signal Amplifier12-24V 20A DM300
2AV DM300
Ledco Dimmer Signal Amplifier.
Thanks to the amplifier, it is possible to extend the installation of Led Dimmer light sources by amplifying the signal coming from the main controller, thus allowing to maintain the synchronization of the controlled colors.
Thanks to this amplifier model it is possible to control two 5-meter strips.
It is compatible with the DM100 and DM200 controller.
€29.34
Items Available: 9
: 4
Specifications:
- Intended Use: Interior
- Installation: Wall/ceiling/recessed mounting
- Body/Structure: metal/pvc
- Power supply: Not included, to be ordered separately
- Input voltage 24/12 Vdc
- Operating temperature -20° + 60°
- Insulation class: Class 3
- Weight: 110 grams
- Degree of protection IP20
- Incandescent wire: 250 C°
- Output power: 12V - 240W / 24V - 480W
- Output current: MAX 20A Dimensions: 106 x 65 x 25 mm
- Output: 1 channel
There are no reviews
Data sheet
- Type: Amplifiers
- Voltage: 12/24V
- Degree of protection: IP20
- Installation: Recessed
