Fracarro 3-input VHF DAB UHF programmable car amplifier 223777
FRA 223777
8016978106844

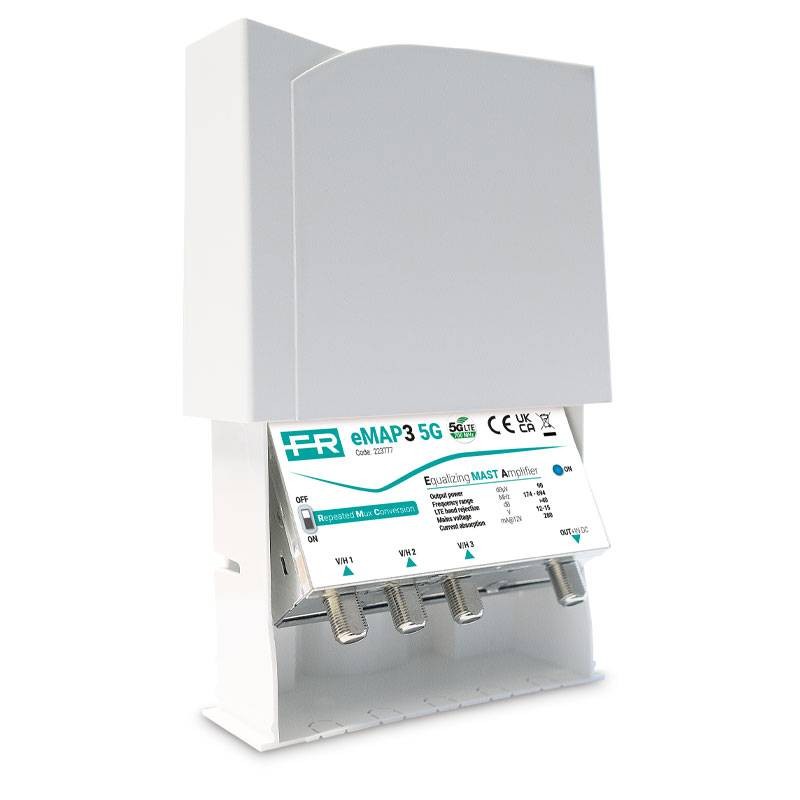

Fracarro eMAP3 5G self-programmable pole mounted amplifier unit for highly selective filtering of TV channels with 3 flexible VHF DAB UHF inputs and 90dB?V output level for each filter with the following features:
- Number of inputs: 3
- Number of outputs: 1
- Connectors: Female
- Supply voltage: 12/15 V
- Power consumption: 4.2W
- Working temperature: -5/+50 degrees
- Perfect equalization of output signals
- Isofrequency filtering or channel conversion
- Automatic gain control on each individual mux
- Automatic 5G and 4G LTE filtering
- External power supply included in the package
€120.05
Items Available: 8
: 1
Frequently bought together
Inputs:
- Inputs: 3 x VHF/UHF
- Filtering: 32/1 Flexible Matrix
- Frequency III, DAB: MHz 174 240
- UHF frequency MHz: 470-694 (5G filtering >40dB)
- Dynamic adjustment dB: >60 (auto AGC)
- VHF input level: dBµV 40 100
- Maximum UHF input level dBµV: 40 100
Outputs:
- Mixed band: MHz 174 - 240 / 470 862
- Maximum UHF output level: dBµV 90 (for each VHF/UHF filter)
- Cluster filter selectivity dB: 35@1MHz
- MER RF dB: III+DAB/UHF: 35
- Reflection loss dB: >10
Self Equalizer: the product scans the signals received in the inputs and automatically amplifies the detected channels, equalizing them in the output. This is done automatically after each short power failure.
Repeated Mux Conversion: in case of isofrequency channels present on multiple inputs, you can choose to keep only the higher power channel, or convert the lower power channel on the free 5G and 4G LTE frequencies (694 - 862 MHz).
The station can filter, convert, amplify and distribute many DVB-T/T2 digital terrestrial multiplexes available in both VHF and UHF bands.
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 3IN/1OUT
- Model: Pole
