Fracarro mast amplifier 1 input III+DAB+UHF 20/25DB 223753
FRA 223753
8016978104161

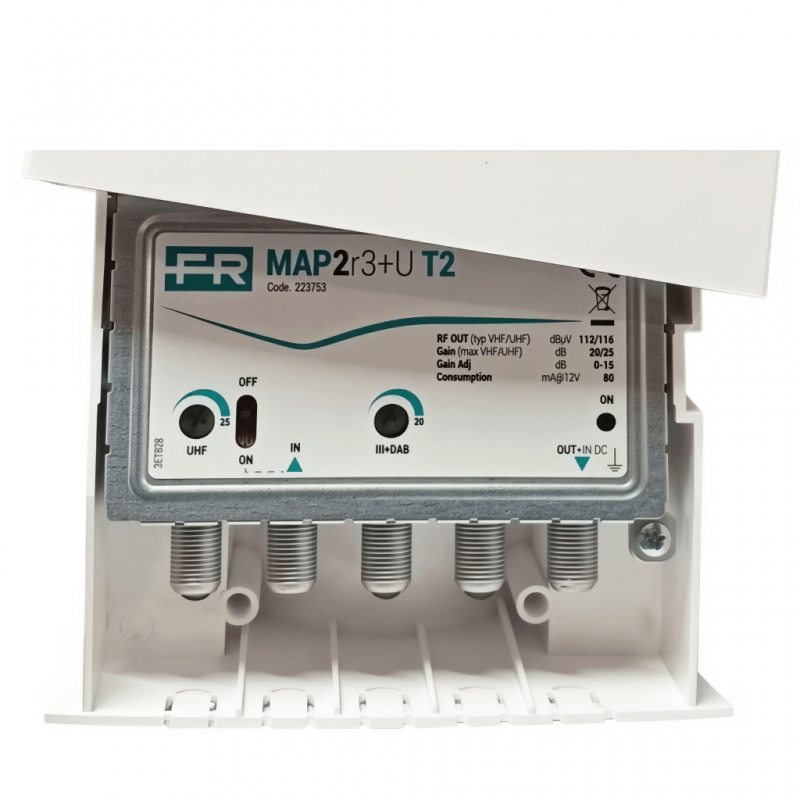

Fracarro MAP2r3+U T2 mast amplifier with 1 input III+DAB+UHF, gain 20/25 dB and output level up to 116 dBµV. Integrated 5G filter, independent adjustments, and LTE Free shielding in ZAMA die-cast.
-
1 input III+DAB+UHF with separate amplifications
-
Adjustable gain 0-15 dB for each band
-
1 Output level up to 116 dBµV (UHF)
-
Integrated 5G filter at 694 MHz (LTE Free)
-
Low noise figure and high shielding
-
UHF/V+U power supply selector
-
ZAMA die-cast body + ABS bell IP66
-
Compliant with RED EMC EU Safety
€26.71
Items Available: 136
Fracarro MAP2r3+U T2: power, protection and precision for TV systems
The Fracarro mast amplifier 223753 is a professional device designed to optimize the reception of DTT and DAB signals, offering high performance and constant stability even in areas with difficult coverage. It features a combined III+DAB+UHF input with separate amplifications for the two bands and independent gain adjustments (015 dB), ensuring precise signal balancing.
Thanks to T2 technology and the integrated 5G filter at 694 MHz, the amplifier eliminates interference from LTE/5G mobile networks, offering superior protection compared to external filters.
Maximum performance and professional reliability
With a gain of 25 dB and an output level up to 116 dBµV, the Fracarro amplifier ensures a powerful and stable signal for communal and residential systems. The low noise figure minimizes signal degradation, ensuring high-quality images and audio even in weak signal conditions.
Robust structure and advanced shielding

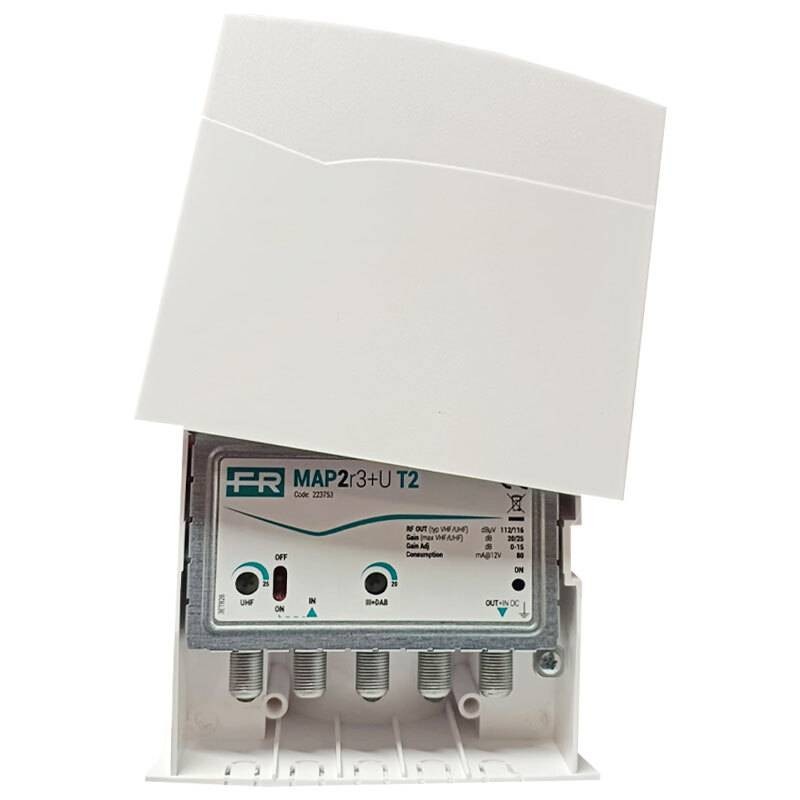

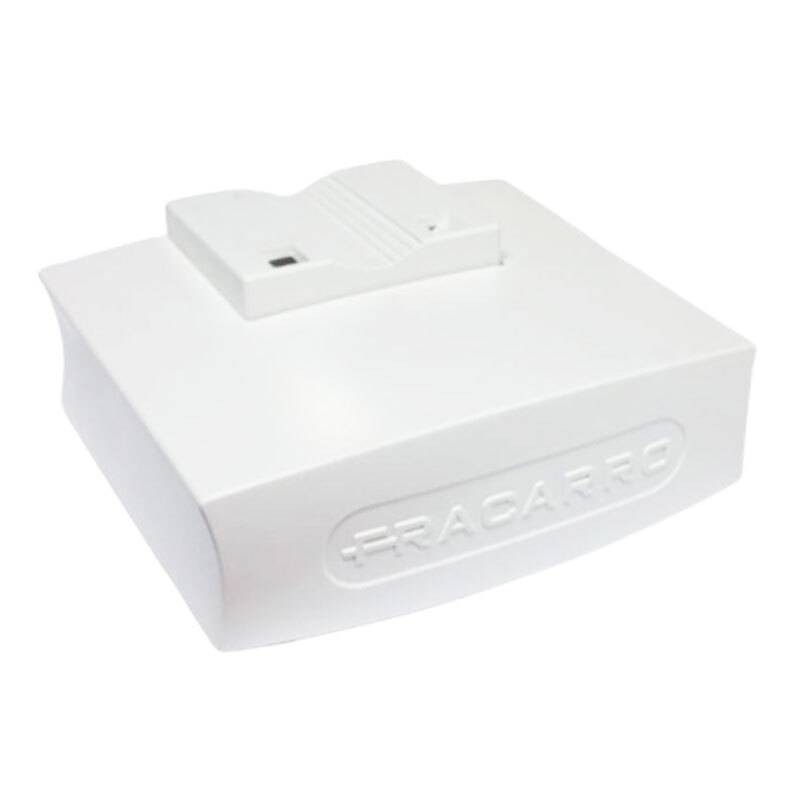

The ZAMA die-cast frame with metal covers provides high protection against electromagnetic disturbances and radio interference, making the device LTE Free. The ABS protective cover is weather-resistant (IP66 rating) and features a sliding opening with a tilting system, simplifying installation and maintenance operations.
Remote power supply and simplified installation
The model is equipped with a selector for remote power supply, which can be activated on the UHF or V+U input depending on the system's needs. A status LED indicates correct power supply, while the included fixing strap allows installation on poles with a diameter up to 60 mm, ensuring stability and ease of use.
Safety and regulatory compliance
The Fracarro amplifier 223753 is RED Compliant, in accordance with the latest European directives on Electromagnetic Compatibility, Safety, and Radio Spectrum. The design and construction meet the highest quality standards of the Fracarro brand, synonymous with reliability and durability over time.
Technical characteristics
| Parameter | Value |
|---|---|
| Number of inputs | 1 |
| Inputs | III + DAB + UHF |
| Frequencies | |
| Band III, DAB | 174 – 240 MHz |
| UHF Band | 470 – 694 MHz |
| Gain | |
| III + DAB | 20 dB |
| UHF | 25 dB |
| Gain adjustment | |
| III + DAB | 15 dB |
| UHF | 15 dB |
| Typical noise figure | |
| III + DAB | 5 dB |
| UHF | 4 dB |
| Number of outputs | 1 |
| Output level | |
| III + DAB | 112 dBµV |
| UHF | 116 dBµV |
| Connectors | F female |
| Clipper | No |
| Filter | 5G |
| Power supply | |
| Power supply voltage | 12 V |
| Consumption | 80 mA @12V |
| Impedance | 75 Ω |
| Operating temperature | -10 ÷ +55 °C |
| Protection | IP43 |
| Compliance | EN50083-2: 2006-06 |
There are no reviews
Data sheet
- Type: Amplifiers
- Version: 1IN/1OUT
- Model: Pole
