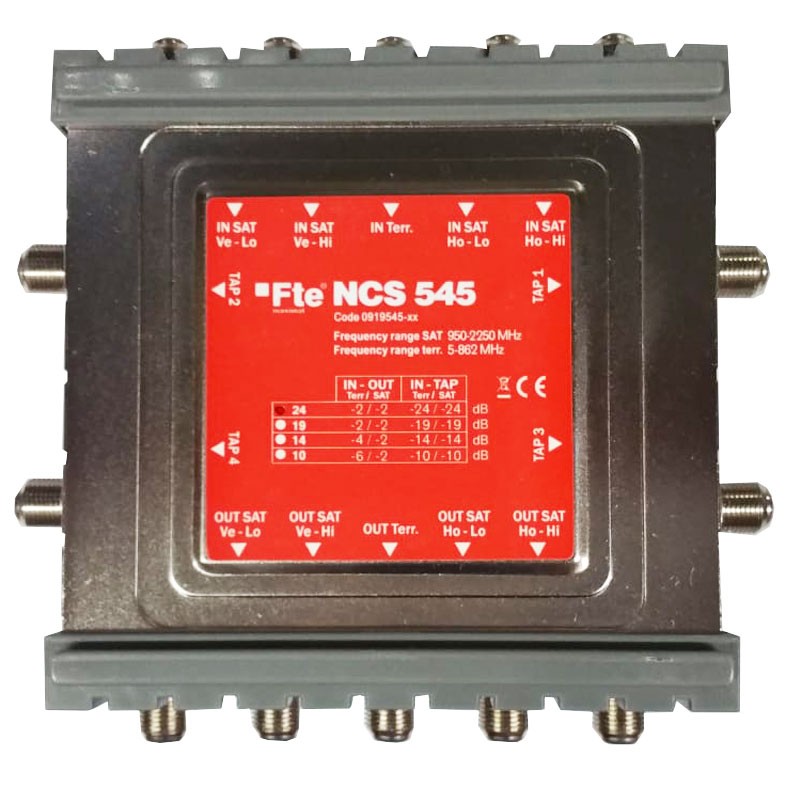

Multiswitch TV/SAT FTE 4 through outputs and attenuation 24 dB NCS545-24
FTE NCS545-24
8436023597067
Multiswitch TV/SAT FTE, professional distribution with 4 through outputs and controlled attenuation, with the following features:
-
SAT Inputs: 4
-
TV Input: 1
-
SAT Through Outputs: 4
-
TV Through Output: 1
-
LNB / Preamplifier Power Supply: 18 V
-
Input/Output Isolation: > 25 dB
-
Connector Type: F
-
Dimensions: 125 x 120 x 40 mm
€64.85
Items Available: 9
: 4
Multiswitch TV/SAT combined distribution in centralized systems
The FTE multiswitch is a professional device designed for the centralized distribution of terrestrial and satellite TV signals in medium and high user systems. Thanks to its 4 SAT inputs and 1 TV input, it allows simultaneous management of signals from multiple sources and distributes them through 4 through outputs and 4 derived outputs, simplifying the creation of cascade systems.
This model is suitable for the transmission of SAT and TV signals, both analog and digital, and supports passive mixing of TV signals, keeping the return line active, a fundamental feature for systems requiring bidirectionality or interactivity.
High performance and stable signal
One of the strengths of this multiswitch is the ability to handle high input level signals up to 115 dBµV, both for TV and SAT, maintaining the same maximum level at the output. This allows for stable and high-quality distribution even in complex systems or with long cable runs.
The derived outputs have a typical attenuation of 24 dB, ideal for balancing the signal along the secondary lines, while the through outputs have contained attenuations (2 dB for SAT, 6 dB for TV), ensuring the maintenance of signal quality in the main branches.
Guaranteed reliability and compatibility
The FTE multiswitch is built to ensure robustness and durability over time, with F connectors for a secure and shielded connection. The decoupling between inputs and outputs greater than 25 dB ensures effective protection against interference or crosstalk between distributed signals, preserving the integrity of the system.
It supports 13/18V and 0-22 KHz switching, and the power supply of LNB or preamplifiers at 18V, offering maximum compatibility with existing satellite systems. The compact dimensions (125 x 120 x 40 mm) facilitate installation even in confined spaces, making it ideal for technical cabinets or distribution panels.
Ideal applications of the FTE 24 dB multiswitch
-
Condominium or residential systems with numerous outlets
-
Centralized TV/SAT systems with multiple decoders or receivers
-
Mixed analog and digital distributions
-
Cascade implementations with signal control needs
-
Contexts where high reliability and decoupling are required
Technical Characteristics of FTE TV and Satellite Multiswitch
| Operating frequency | 5 ÷ 2,200 MHz |
| SAT inputs | 4 |
| TV input | 1 |
| Through SAT outputs | 4 |
| Through TV output | 1 |
| Derived outputs | 4 (5 ÷ 2,200 MHz) |
| Derived TV attenuation | 24 dB |
| Derived SAT attenuation | 24 dB |
| Pass-through TV attenuation | 6 dB |
| Pass-through SAT attenuation | 2 dB |
| Maximum TV input level | 115 dBµV |
| Maximum SAT input level | 115 dBµV |
| Maximum TV output level | 115 dBµV |
| Maximum SAT output level | 115 dBµV |
| LNB / preamplifier power supply | 18 V |
| Switching | 13 / 18 V – 0 / 22 kHz |
| Input / output decoupling | > 25 dB |
| Connector type | F |
| Dimensions (W × H × D) | 125 × 120 × 40 mm |
There are no reviews
Data sheet
- Type: Multiswich
- Version: 4IN/1OUT
- Model: 24db
