Multiswitch Fracarro SWP512TS 4 SAT inputs and 1 Tv 12 extensions 287519
FRA 287519
8016978102341

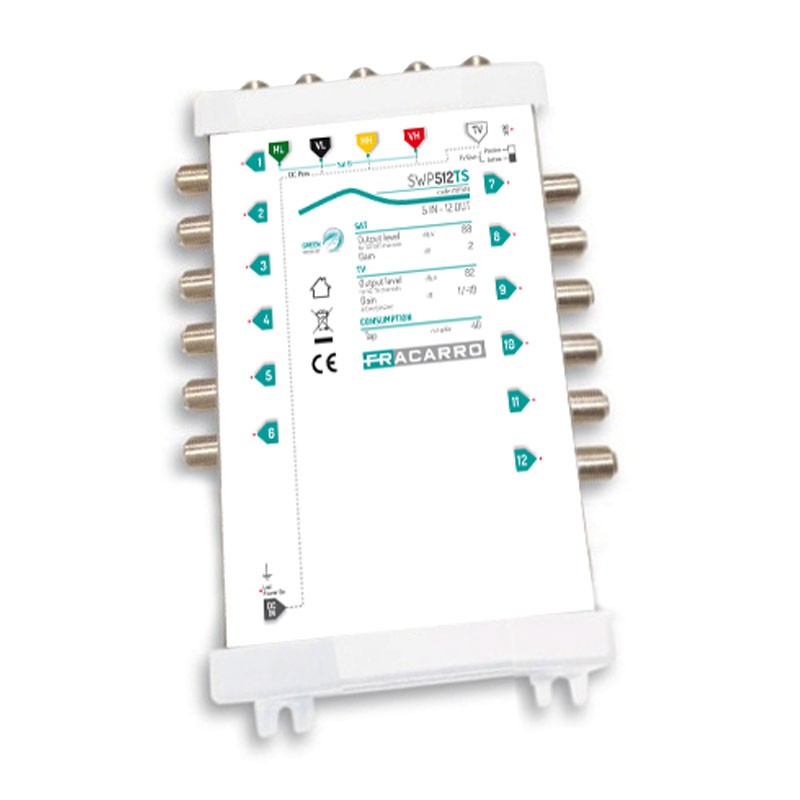

Fracarro SWP512TS compact multiswitch with 4 SAT inputs and 1 Tve 12 extensions.
Compact 5 input multiswitch with dip switch to select active or passive TV gain.
Multiswitch Fracarro SWP512TS 4 SAT inputs and 1 Tv 12 extensions 287519
€107.31
€107.31
Tax included
Tax included
Pay in installments with Klarna
Items Available: 4
SAT:
- Bandwidth MHz 950-2300
- Gain with positive slope dB -3/1
- Maximum output level (-35dBc 2 tones) dBµV 100
- Isolation SAT-SAT dB >30
TV:
- Bandwidth MHz Passive: 5-862 Active: 47-862
- Active Gain dB 0
- Passive gain dB -20
- Maximum output level (-35dBc 2 tones) dBµV Active TV Gain: 92.
Return Channel:
- Bandwidth MHz TV passive: 5-65.
Consumption:
- Derived consumption mA 40
- Absorption mA, V active TV: 160, 13 passive TV fully powered by receiver
- Maximum LNB absorption mA Passive TV: 1500 Active TV: 1340.
General features:
- Dimensions mm 170x130x40
- Power supply dimensions mm 90x70x45
- Operating temperature °C -10÷+55.
There are no reviews
Data sheet
- Type:
- Multiswich
- Version:
- 4IN/12OUT
- Model:
- db
