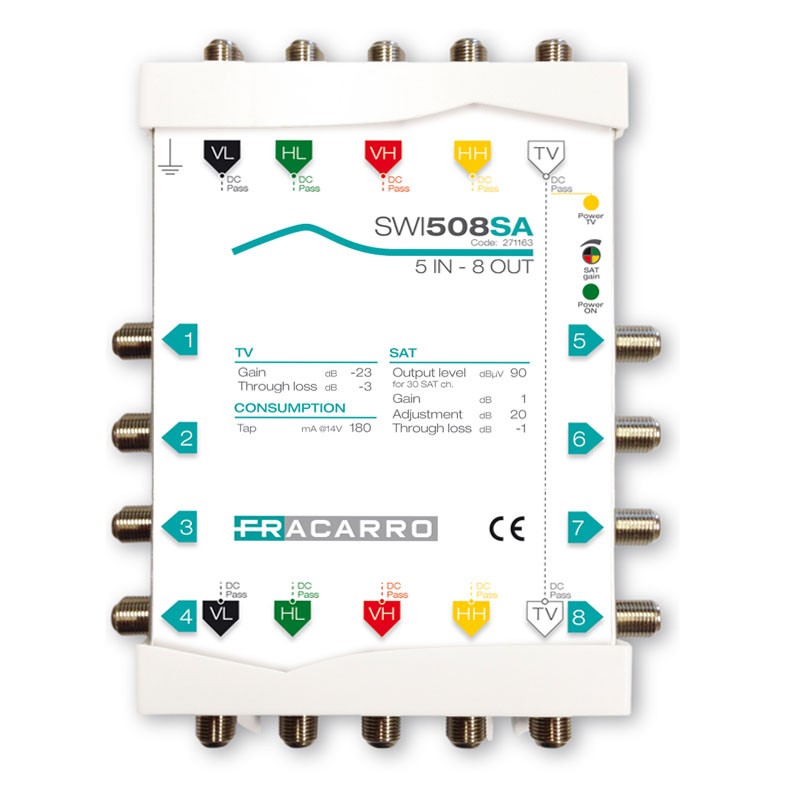

Fracarro SWI508SA cascade multiswitch 5 inputs and 8 outputs 271163

Fracarro
Fracarro
FRA 271163 8016978097784

Multiswitch Fracarro SWI508SA, 5 inputs cascade with passive TV and active satellite gain adjustable.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Fracarro SWI508SA cascade multiswitch 5 inputs and 8 outputs 271163
€186.69
€186.69

€186.69
Tax included
Calculate shipping cost
Items Available: 4
Further availability of the manufacturer
€186.69

Buy it within and receive it from Wednesday, 24 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Fracarro series
  • Inputs : 4 SAT, 1 TV
  • Derivatives: 8
  • Dimensions mm: 160x120x30
  • Operating temperature °C: -10÷+55

SAT:

  • Bandwidth MHz: 950-2300
  • Gain with positive slope: dB -4/1
  • Gain adjustment: dB 20
  • Passage loss: dB -1
  • Isolation SAT-SAT: dB >30

TV :

  • Bandwidth MHz: 88-790
  • Gain: dB -23
  • Passage loss: dB -3

Consumption:

  • Derived mA consumption: 180
  • Maximum current on SAT line mA: 2000
  • Maximum current on TV line mA: 1000

Prodotto conforme alle mie richieste e prestante. Segnale perfetto

Read all reviews

Data sheet

Type:
Multiswich
Version:
5IN/8OUT
