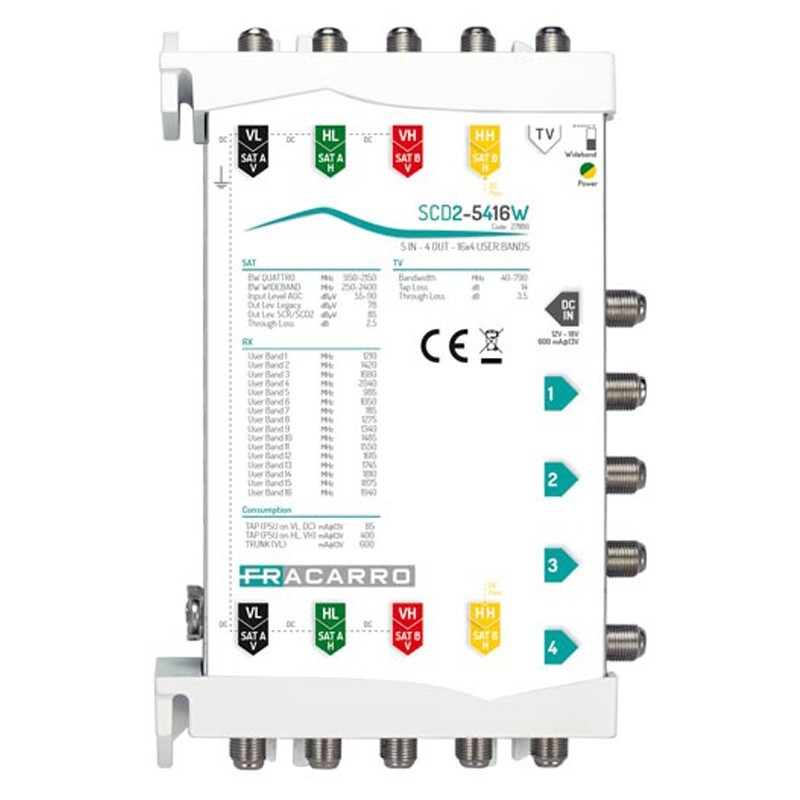

Fracarro SCD2-5416W multiswitch 5 IN 4 OUT 271180
FRA 271180
8016978103584
Fracarro SCD2-5416W multiswitch Inputs: 4 SAT, 1 TV Outputs: 4 to serve up to 4 Legacy users, 16 SCR users or 64 SCD2 (dCSS) users.
€182.93
Items Available: 30
: 2
SAT:
- Bandwidth MHz Four: 950-2150; Wideband 250-2400
- Automatic gain control dBµV 55-90
- Passage loss dB -2.5
- Isolation SAT-SAT dB >25
TV:
- Bandwidth MHz 40-790
- Gain dB -14
- Passage loss dB -3.5
Derivative:
- TV bandwidth MHz 40-790
- SCR frequencies MHz 1210, 1420, 1680, 2040 (complies with EN50494) 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 (complies with EN50607)
Consumption:
- Derived Consumption mA@13V PSU on DC-IN or VL: 85; PSU on HL or VH: 400
- Consumption mA@13V PSU on DC-IN or VL: 600; HL, VH or HH pass
- Supply voltage V 12-18
Other features:
- Dimensions mm 180x109x31
- Operating temperature °C -10÷+55
There are no reviews
Data sheet
- Type: Multiswich
- Version: 5IN/4OUT
- Model: 14db
