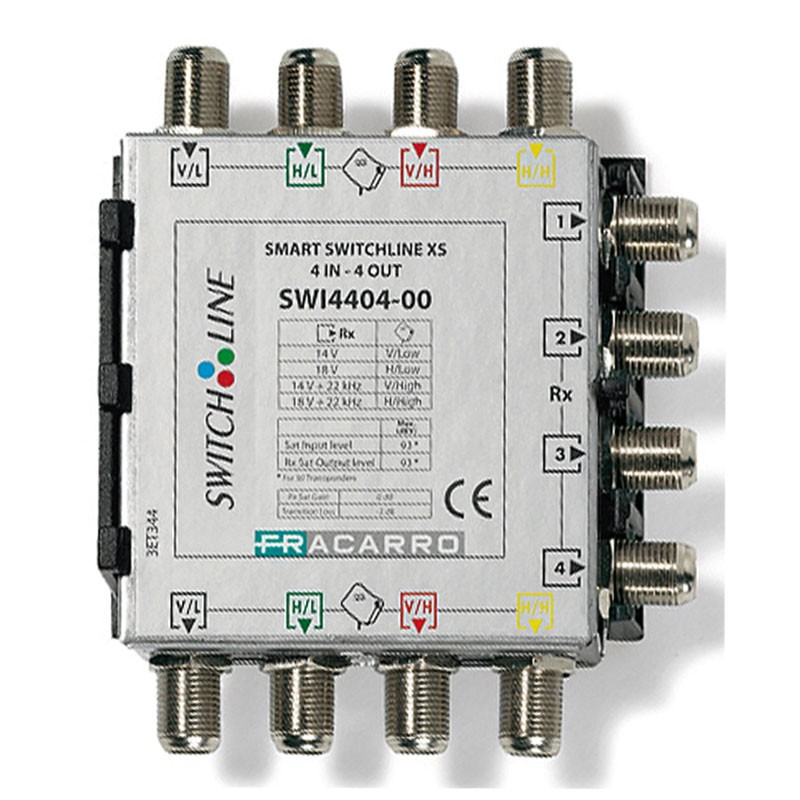

Fracarro SMART SWLINE XS 4 inputs and 4 outputs 0db 271081
FRA 271081
8016978068289
Fracarro SWI4404-00 cascade multiswitch, with 4 inputs and different attenuation levels on the user extensions.
€41.53
Items Available: 7
: 1
Features:
- Fracarro series
- Inputs : 4 SAT
- Derivatives: 4 SAT
- Bandwidth MHz: 950-2150
- Gain dB: 0
- Maximum output level (-35dBc 2 tones): dBµV 105
- Passage loss: dB -2
- Isolation SAT-SAT: dB >28
- Derivative consumption: mA 35
- Dimensions in mm: 90x70x20
- Operating temperature °C: -10/+55
Data sheet
- Type: Multiswich
- Version: 4IN/4OUT
- Model: db
