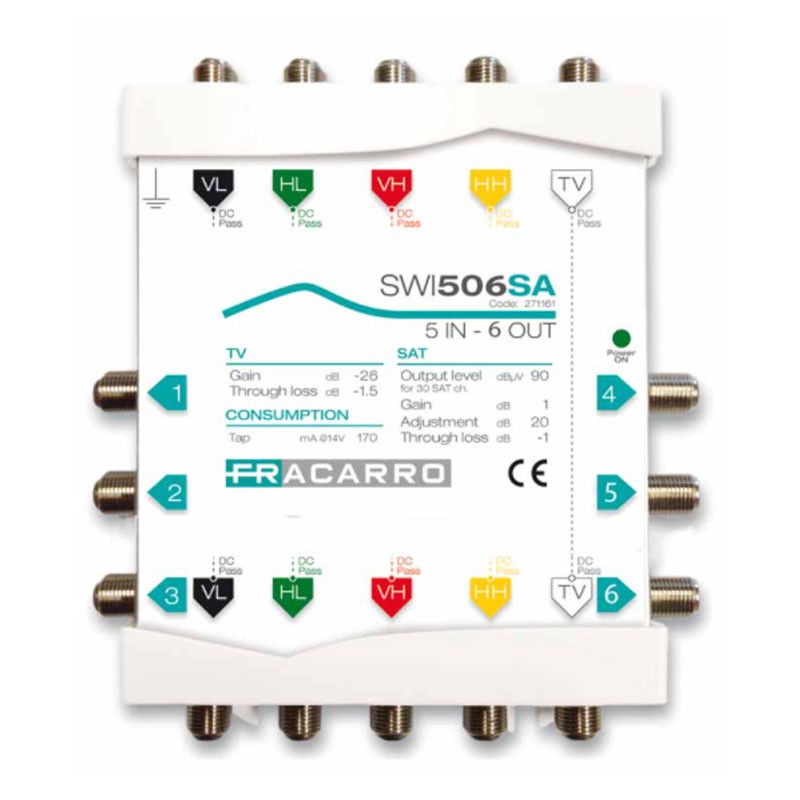

Fracarro multiswitch 5x6 with passive TV and active SAT adjustable 271162
FRA 271162
8016978097876
Fracarro SWI506SA cascade multiswitch, 5 inputs with passive TV and adjustable active satellite gain.
€129.28
Items Available: 1
Features:
- Fracarro Series
- Derivatives: 6
- Dimensions in mm: 140x120x30
- Operating temperature °C :-10 +55
SAT:
- Bandwidth MHz: 950-2300
- Gain with positive slope dB: -4/1
- Gain adjustment dB: 20
- Passage loss dB -1
- Isolation SAT-SAT dB: >30
TV :
- Bandwidth MHz :88-790
- Gain: dB 22
- Passage loss: dB 3
Consumption:
- Derived consumption mA: 170
- Maximum current on SAT line mA: 2000
- Maximum current on TV line mA: 1000
Data sheet
- Type: Multiswich
- Version: 5IN/6OUT
- Model: 20db
