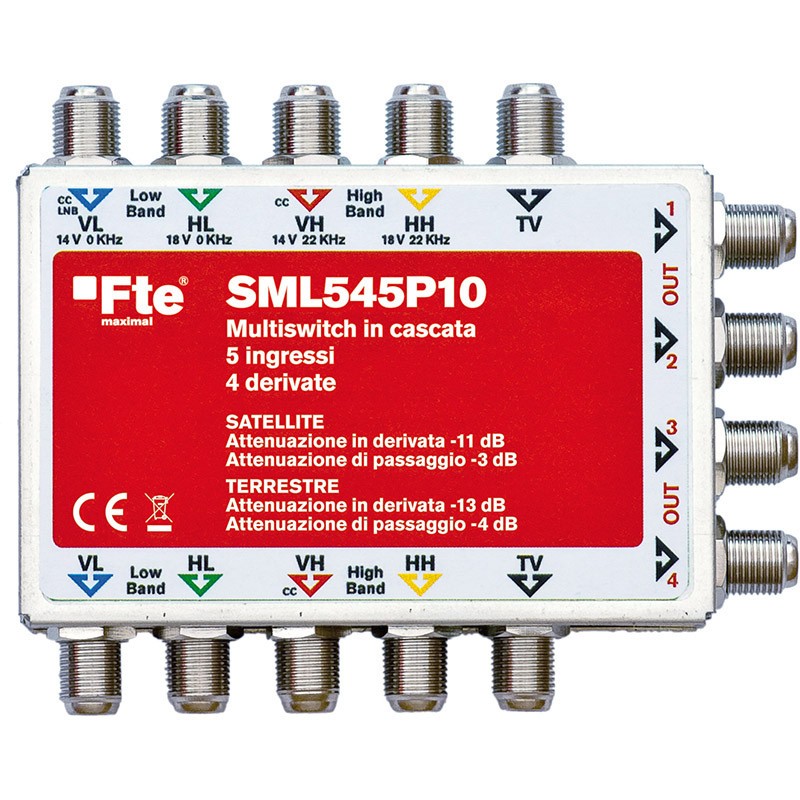

FTE cascade multiswitch with 4 SAT + 1 TV inputs, 4 pass-through outputs and 4 attenuated extensions. Ideal for medium-sized centralized systems with passive TV mixing and low power consumption, with the following features:
-
Number of inputs: 5 (4 SAT + 1 TV)
-
Number of outputs: 5 (SAT + TV)
-
Number of derived outputs: 4 (SAT -10 dB / TV -13 dB)
-
Bandwidth: 40-862 MHz / 950-2150 MHz
-
Power supply: from STB or external power supply
-
Low pass loss: SAT 3 dB / TV 4 dB
-
Compatible with switching: 14/18 V and 0/22 kHz
€95.64
Items Available: 1
Multiswitch FTE compact solution for TV and SAT distribution.
The Multiswitch is designed to distribute digital and terrestrial SAT signals in medium- and small-user installations, with a 5-input - 4-lead configuration. Signals from 4 satellite poles (VL, HL, VH, HH) and a terrestrial TV antenna are passively mixed, providing maximum flexibility.
High efficiency and isolation between outputs
The 4 derived outputs have typical attenuation of 10 dB for SAT and 13 dB for TV, making it perfect for direct connections to users. Feed-through outputs allow cascading with other multiswitches, facilitating system extension. High isolation between inputs (>28 dB) and between outputs (>25 dB) ensures no interference and stable distribution.
Flexible power supply and low power consumption
The device can be powered directly from the decoder (STB) via the VL line or by injector and external power supply (IN1218 + PS15-1100). With a low power consumption of only 45 mA, it is also ideal for installations in limited spaces and with low energy resources.
Robust, compact and standards-compliant
With compact dimensions, the multiswitch is easy to install even in technical panels with limited space. It complies with EN 50083 and EN 50581 standards, ensuring safety, reliability and compatibility with modern TV/SAT technologies.
Technical Specifications Multiswitch SAT/TV FTE
Connections
| Feature | Value |
|---|---|
| Inputs | 4 SAT + 1 TV |
| Derived outputs | 4 (SAT -10 dB / TV -13 dB) |
| Through outputs | 4 SAT + 1 TV |
| Switching type | 14/18 V - 0/22 kHz |
| DC pass through | VL line |
Signal Performance
| Feature | Value |
|---|---|
| TV bandwidth | 40 to 862 MHz |
| SAT bandwidth | 950 ÷ 2150 MHz |
| SAT derivative loss | 10 dB |
| TV derivative loss | 13 dB |
| SAT through loss | 3 dB |
| TV through loss | 4 dB |
| Isolation between inputs | > 28 dB |
| Isolation between outputs | > 25 dB |
Power supply
| Feature | Value |
|---|---|
| Power source | Decoder (STB) or external power supply (IN1218 + PS15-1100) |
| Supply voltage | 10 TO 18 VDC |
| Power consumption | 45 mA |
Physical and Environmental Data
| Feature | Value |
|---|---|
| Operating temperature | -10 ÷ 50 °C |
| Dimensions | 104 x 85 x 28 mm |
| Weight | 221 g |
| Standards | EN 50083 - EN 50581 |
| Quantity per package | 1 single / 6 multiples |
