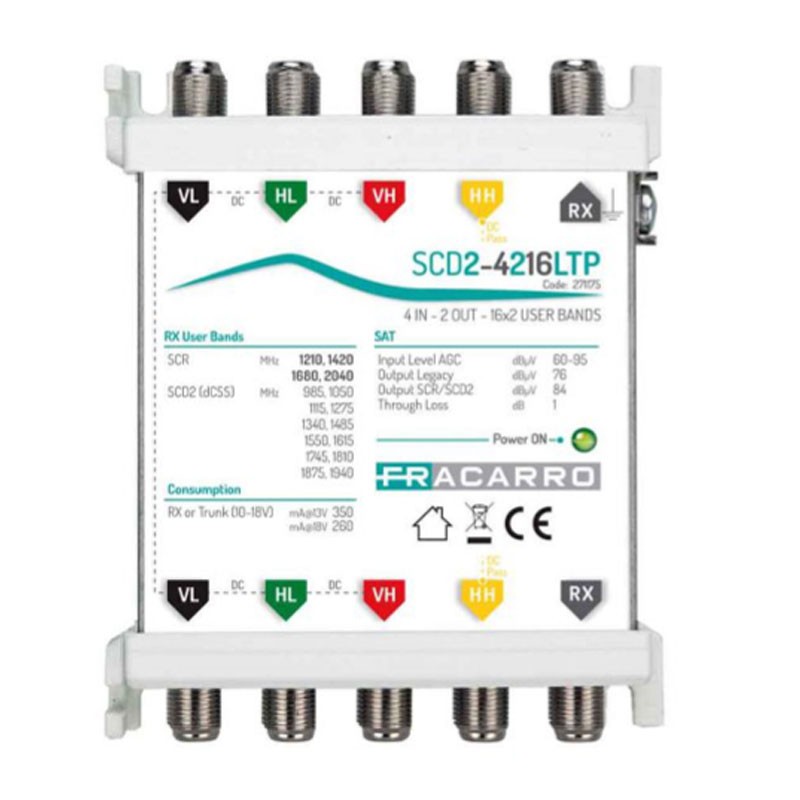

Fracarro SCD2-4216LTP multiswitch 4 inputs and 2 outputs 271175

Fracarro
Fracarro
FRA 271175 8016978097975

Fracarro SCD2-4216LTP multiswitch, with the following features:



  • Voltage: 10-19V
  • Power consumption: mA@13VPSU on DC-IN or VL: 330; HL, VH or HH pass
  • Dimensions: mm 90x105x22
  • Operating temperature: -10÷+55°C
  • Inputs: 4 SAT
  • Derivatives: 2 to serve up to 2 Legacy users, 8 SCR users or 32 SCD2 users (dCSS)
  • MHz bandwidth: 950-2150
  • Automatic gain control: dBµV 60-95
  • Maximum output level (per mux) dBµV: Legacy: 78, SCR/SCD2 (dCSS): 85
  • Pass-through loss:-1
  • SAT-SAT isolation: dB >30
  • SAT bandwidth: Mhz 950-2150
  • SCR and SCD2 frequencies: Mhz 1210, 1420, 1680, 2040 (meets standard EN50494) 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 (meets standard EN50607
  • Derived consumption: mA@13V 350
  • Powered entirely by decoder
Do you have questions about this product or did you not find what you were looking for? Ask us!
Fracarro SCD2-4216LTP multiswitch 4 inputs and 2 outputs 271175
€80.52
€80.52

€80.52
Tax included
Calculate shipping cost
Items Available: 9
Further availability of the manufacturer
€80.52

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

There are no reviews

Data sheet

Type:
Multiswich
Version:
4IN/2OUT
Model:
30db
