Fracarro SMART SWLINE XS 4 inputs and 4 outputs 17dB 271083
FRA 271083
8016978068302

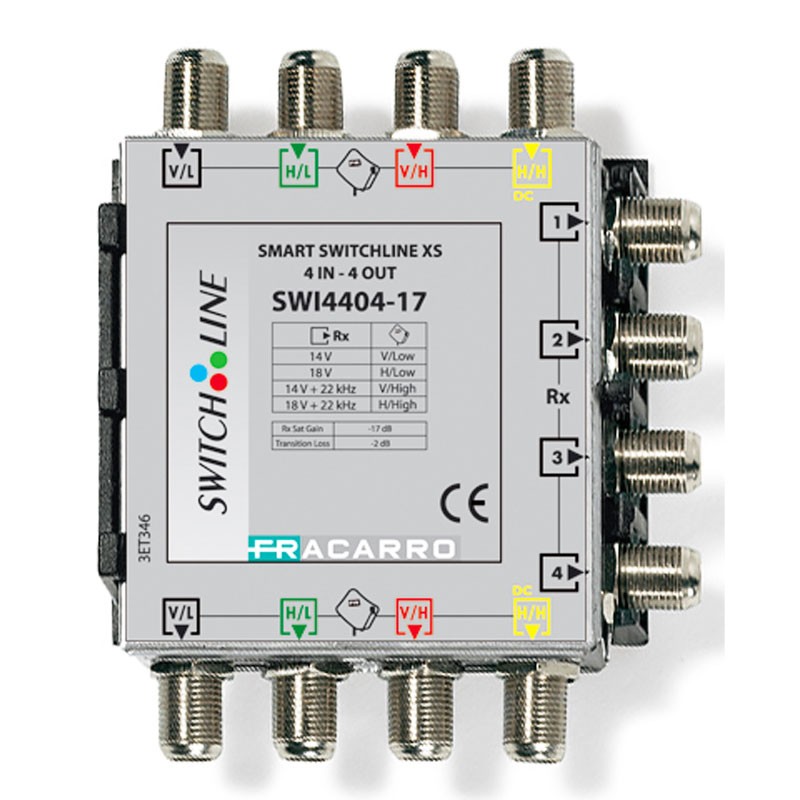

Fracarro SWI4404-17 cascade multiswitch, 4 inputs with different attenuation levels on the user extensions.
€41.53
Items Available: 1
Features:
- Fracarro series
- Inputs : 4 SAT
- Derivatives: 4 SAT
- Bandwidth MHz: 950-2150
- Gain dB: 17
- Maximum output level (-35dBc 2 tones): dBµV 105
- Passage loss: dB -2
- Isolation SAT-SAT: dB >28
- Derivative consumption: mA 15
- Dimensions in mm: 90x70x20
- Operating temperature °C: -10/+55
There are no reviews
Data sheet
- Type: Multiswich
- Version: 4IN/4OUT
- Model: 17db
