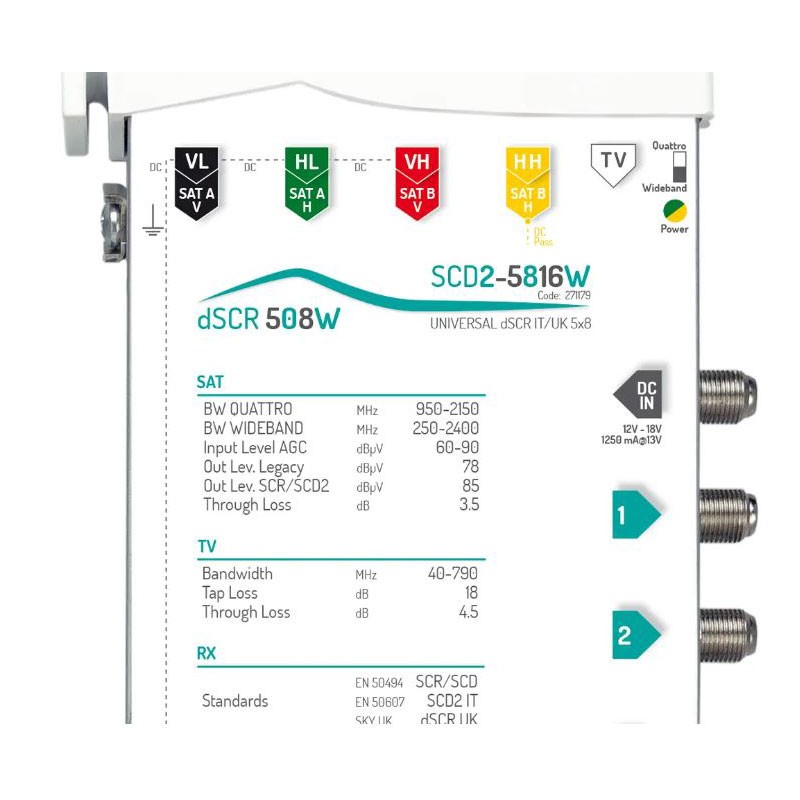

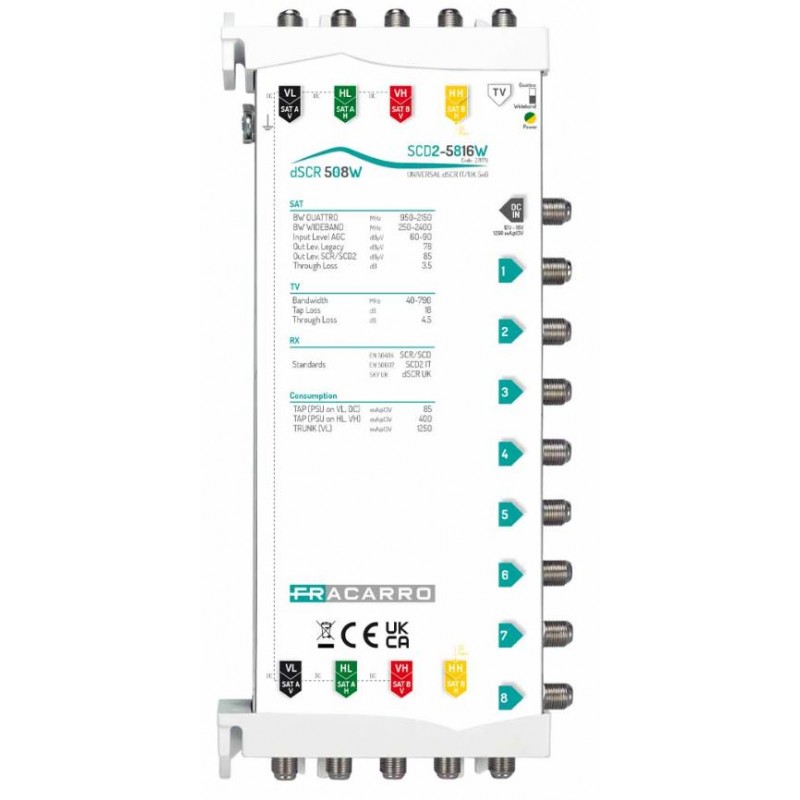

Fracarro Multiswitch SCD2-5816W 5IN WB 8OUT 271179
FRA 271179
8016978103591
Fracarro SCD2-5816W Multiswitch Inputs: 4 SAT, 1 TV, Derivatives: 8 to serve up to 8 Legacy users, 32 SCR users or 128 SCD2 users (dCSS).
€382.10
Items Available: 24
: 9
SAT:
- Bandwidth MHz Four: 950-2150; Wideband 250-2400
- Automatic gain control dBµV 60-90
- Passage loss dB -3.5
- Isolation SAT-SAT dB >25
TV:
- Bandwidth MHz 40-790
- Gain dB -18
- Passage loss dB -4.5
Derivative:
- TV bandwidth MHz 40-790
- SCR frequencies MHz 1210, 1420, 1680, 2040 (complies with EN50494) 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1940 (complies with EN50607)
Consumption:
- Derived Consumption mA@13V PSU on DC-IN or VL: 85; PSU on HL or VH: 400
- Consumption mA@13V PSU on DC-IN or VL: 1250; HL, VH or HH pass
- Supply voltage V 12-18
Other features:
- Dimensions mm 260x109x50
- Operating temperature °C -10÷+55
Consiglio di abbinarlo a un alimentatore di linea tipo Amp2000. o. Psu3001
Prodotto, un po sensibile , ne ho già cambiati 3 ... per ora non sembra molto affidabile , vediamo il terzo...
Segnalato già alla Fracarro
Data sheet
- Type: Multiswich
- Version: 5IN/8OUT
- Model: 18db
