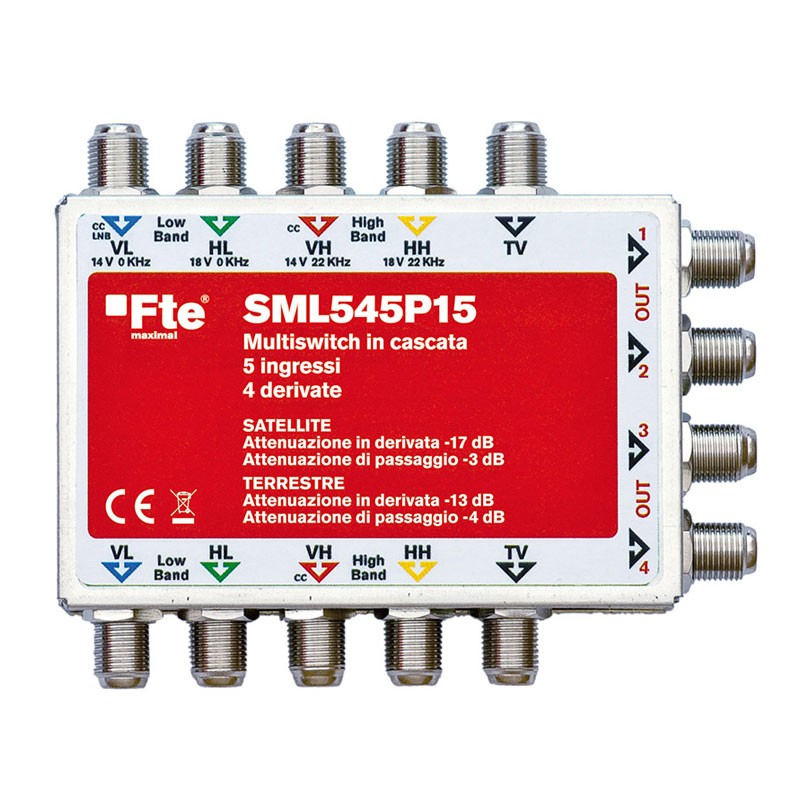

FTE Cascade Multiswitch 5 IN and 4 DERIVATIVES 15 db SML545P15
FTE SML545P15
8436545300473
FTE cascade multiswitch with four SAT inputs and one TV, four Sat pass-through outputs and one TV, four shunt outputs with typical attenuation of 13 dB on TV and 15 dB on SAT.
€95.64
Items Available: 8
: 2
Strengths:
- 5 inputs, 5 outputs and 4 taps
- Passive TV mixing
- SAT attenuation in derivative 15 dB
- Low loss of passage
- Reduced current consumption
- DC pass through on the VL
- Compact size.
Applications
- In small installations it is possible to use the SML series without SAT head amplifier.
Characteristics:
- Number of inputs 5
- Number of branches 4
- Number of outputs 5
- Bandwidth - MHz 40 ÷ 862 / 950 ÷ 2150
- Tap loss - dB SAT: 3. TERR. : 13
- Through loss - dB SAT: 15 . TERR. : 4
- Input isolation - dB > 28
- Output isolation - dB > 25
- Switching type - V, KHz 14/18, 0/22
- LNB power supply from extension Yes, VL line
- Power supply From STB or injector and power supply IN1218 + . PS15-1100 on the VL through line
- Supply voltage - VDC 10 ÷ 18
- Consumption - mA 45
- Operating temperature - °C -10 ÷ 50
- Dimensions (W x H x D) - mm 104 x 85 x 28
- Weight - g 221
- Complies with EN 50083 EN 50581 standards.
There are no reviews
Data sheet
- Type: Multiswich
- Version: 5IN/4OUT
