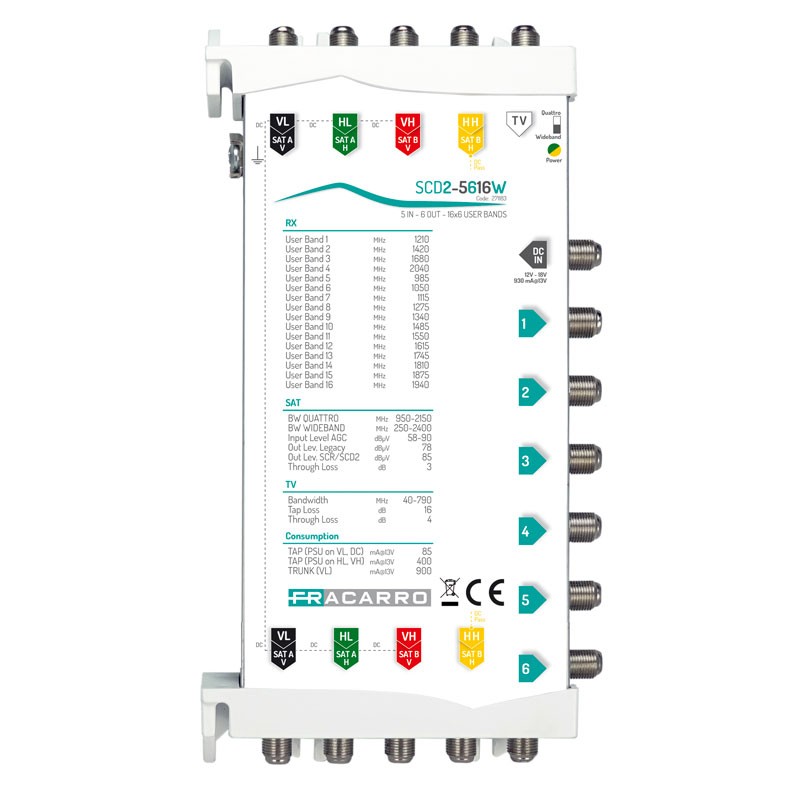

Features:

• 4-satellite and 1 TV input series, 5 pass-through outputs and 2, 4, 6 or 8 user extensions, 4 SCR tuners and 12 SCD2 dCSS tuners simultaneously for each output
• Compatible with both traditional LNB (UX-QT LTE) and Wideband type LNB (UX-WB LTE) to distribute the 4 polarities of a satellite with only two cables
• Passive TV input to mix DTT and Satellite signals in distribution
• Automatic Gain Control (CAG): maintains adequate output signal (85dBµV) even when input signal strength varies
• Autodetection of the operating mode depending on the STB connected to the port; this allows switching from a Legacy STB to an SCR or SCD2 without making any intervention on the system
• The multiswitch automatically starts in Legacy mode and switches to SCR or SCD2 mode as soon as it detects a DiSEqC command from it
• Low pass-through loss
• DC pass-through on all satellite ports for maximum compatibility with existing systems
• FVM Flexible Voltage Management allows the multiswitch to be powered in different modes without having to act on a dip switch
• Universal standard: compatible with both the SCR/SCD and SCD2 frequencies used by SKY and Tivùsat, as well as the dSCR UK standard
• Power supply not included PSU3001 with DC inserter on F connector to power theLNB, the headend amplifier (if any) and the multiswitch when the decoder cannot support the load of the extension
• Inputs: 4 SAT, 1 TV
• Outputs: 4 SAT, 1 TV
• Leads: 6 to serve up to 6 Legacy users, 24 SCR users or 96 SCD2 users (dCSS)
• Working temperature -10/+55 degrees
• Dimensions 220x109x50 mm
• SAT-SAT isolation >25 dB



SAT:

• SAT Bandwidth Four: 950-2150; Wideband 250-2400 MHz
• CAG dynamics 58-90 dBµV
• Max SAT Legacy output level: 78, SCR/SCD2 (dCSS): 85 dBµV
• Through loss -3 dB
• SAT return loss >10 dB



TV:

• TV bandwidth 40-790 MHz
• TV passive gain -16 dB
• TV pass-through loss -4 dB



Drift:

• SAT bandwidth 950-2150 MHz
• TV bandwidth 40-790 MHz
• SCR MHz frequencies Standard EN50494 SCR/SCD, EN50607 SCD2 IT and SKY dSCR UK



Consumption:

• Derived PSU on DC-IN or VL: 85@13V; PSU on HL or VH: 400@13V mA
• Supply voltage 12-18V
• PSU draw on DC-IN or VL: 900@13V; HL, VH or HH pass mA
