Fracarro SMART SWLINE 4 inputs and 6 outputs XS 8dB 271085
FRA 271085
8016978068326

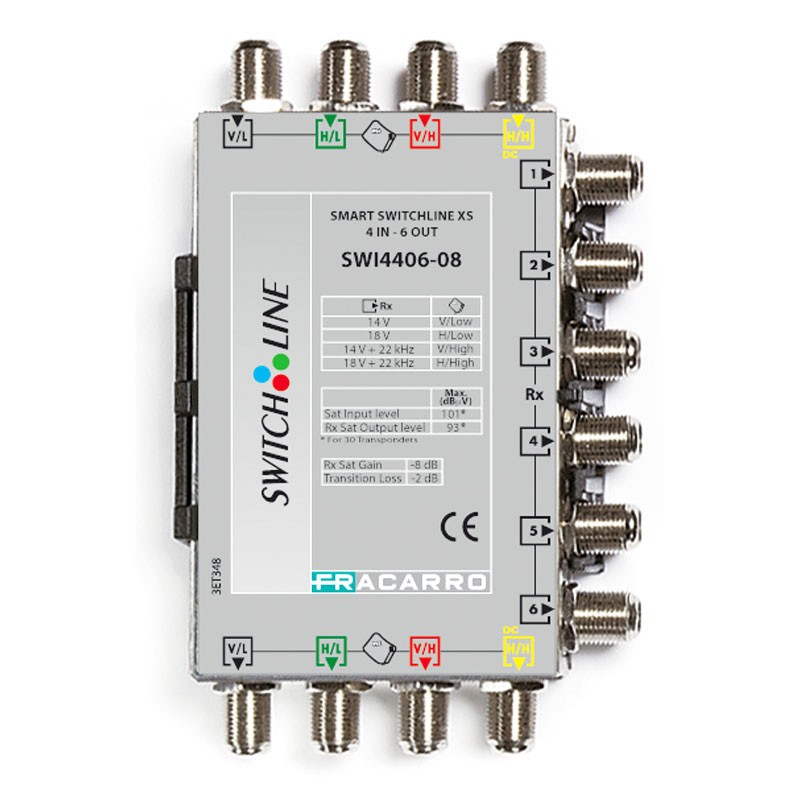

Fracarro SWI4406-08 cascade multiswitch, 4 inputs with different attenuation levels on the user extensions.
€56.85
Out of stock
Incoming
Features:
- Fracarro series
- Inputs : 4 SAT
- Derivatives: 6 SAT
- Bandwidth MHz: 950-2150
- Gain dB: 8
- Maximum output level (-35dBc 2 tones): dBµV 105
- Passage loss: dB -2
- Isolation SAT-SAT: dB >28
- Derivative consumption: mA 35
- Dimensions in mm: 119x70x20
- Operating temperature °C: -10/+55
There are no reviews
Data sheet
- Type: Multiswich
- Version: 4IN/6OUT
- Model: 8db
