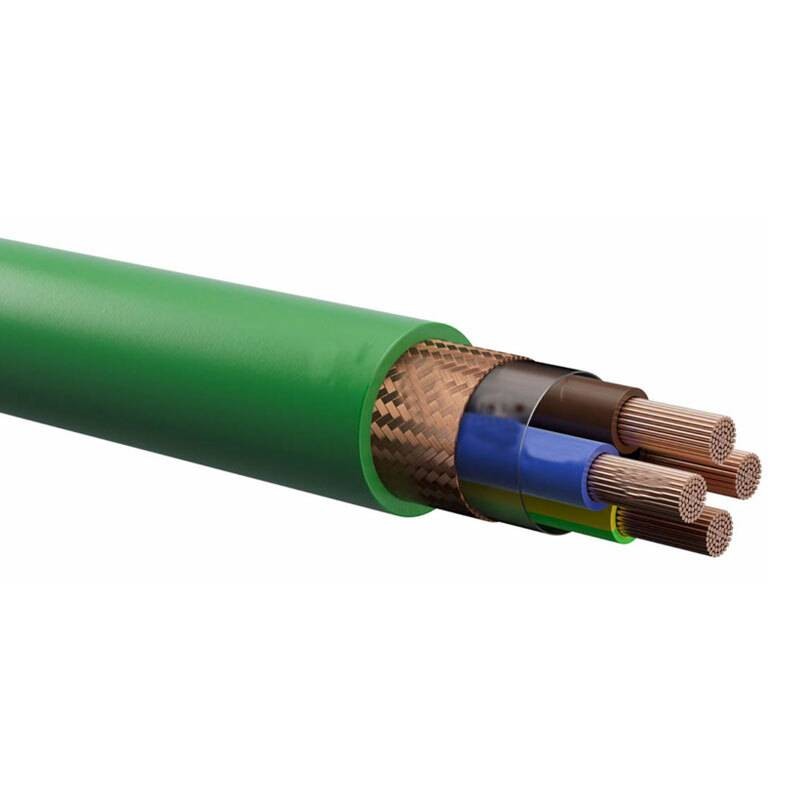

Multicore shielded cable FG16OH2M16 12G 1.5 sq. mm G/V 0.6/1kV

Brand: Cavi

Code: 9X9 FG16OH2M1612G1,5 EAN:

Multicore shielded cable FG16OH2M16 12G 1.5 mmq with green/yellow with the following characteristics:

Section: 12G 1.5 sq. mm
Outer diameter: 16.5 mm
Conductor resistance: 13.30 Ohm/km

Multicore LSZH cable for power and signaling with very low smoke and toxic gas emission.

The selling price is intended per meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.

Multicore shielded cable FG16OH2M16 12G 1.5 sq. mm G/V 0.6/1kV

€5.38

€5.38
Tax included

Calculate shipping cost

Out of stock

Further availability of the manufacturer

Incoming

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Conductor: Flexible red copper, class 5
Insulation: HEPR rubber-based compound, G16 quality
Shielding: Red copper braid on the total
Outer sheath: LZH compound based on thermoplastic material, M16 quality
Outer sheath color: Green
Core operating voltage: 0.6/1kV
Sheath operating voltage: 0.6/1kV
Test voltage: 4000V
Min. insulation resistance at 20°C > 200 M:xKm
Operating temperature: -40/+90 degrees
Maximum short circuit temperature: +250 degrees

Multicore LSZH cable for power and signaling with very low smoke and toxic gas emission. It is especially suitable in places with fire danger and high presence of people such as schools, offices, theaters, hospitals.

It is suitable for installation inside even wet environments and can be installed on masonry and metal structures, on walkways, in pipes, ducts and similar systems. Shielding contributes to protection against electromagnetic interference. The cable, if stored/placed outdoors, must be UV protected. Underground, direct or indirect laying permitted.
