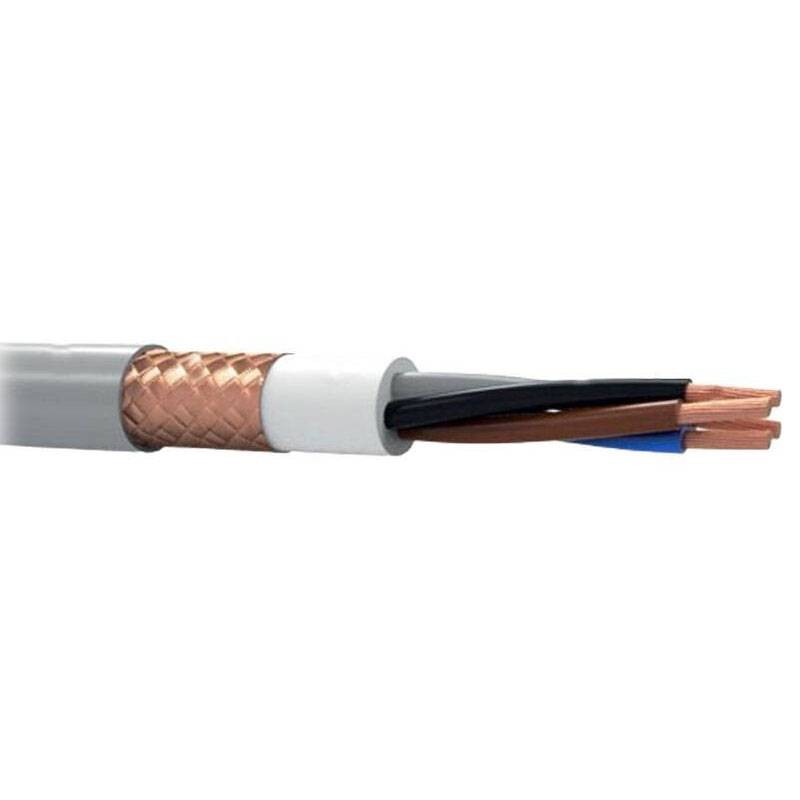

Multi-core shielded cable FG16OH2R16 4 x 1.5 sq. mm 0.6/1kV
9X9 FG16OH2R164X1,5
Multi-core shielded cable FG16OH2R16 4 x 1.5 sq mm with the following characteristics:
- Section: 4 x 1.5 sq. mm
- Outer diameter: 12.2 mm
- Conductor diameter: 1.6 mm
- Insulation thickness: 0.7 mm
- Sheath thickness: 1.8 mm
- Conductor resistance: 13.30 Ohm/km
- Current carrying capacity in air: 19 A
- Current carrying capacity buried: 19 A
Multi-core shielded red copper wire braid cable for energy, insulated with high-modulus ethylpropylene rubber of G16 quality, under PVC sheath, with special fire reaction characteristics and meeting the Construction Products Regulation.
Sold by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Multi-core shielded cable FG16OH2R16 4 x 1.5 sq. mm 0.6/1kV
€1.91
€1.91
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1357
Features:
- Conductor: Flexible annealed red copper cord, class 5
- Insulator: High-modulus ethylpropylene rubber compound of G16 quality
- Filler: Compound of nonhygroscopic material
- Outer sheath: PVC compound of R16 quality
- Sheath color: Gray
- Rated voltage Uo/U: 0.6/1 kV
- Maximum operating temperature: 90°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Minimum laying temperature: 0°C
- Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 8 times the maximum outer diameter
Conditions of use: Protection against electromagnetic interference for energy transport in industrial and/or residential construction. To be used for fixed installation indoors even in wet environments and outdoors. Suitable for installation on masonry and metal structures, ducts, pipes and similar; underground laying also permitted.
There are no reviews
Data sheet
- Colour:
- Grey
- Type:
- FG16OH2R16
- Cross-Section:
- 1.5mmq
- With yellow/green:
- No
- Number of cables:
- 4
