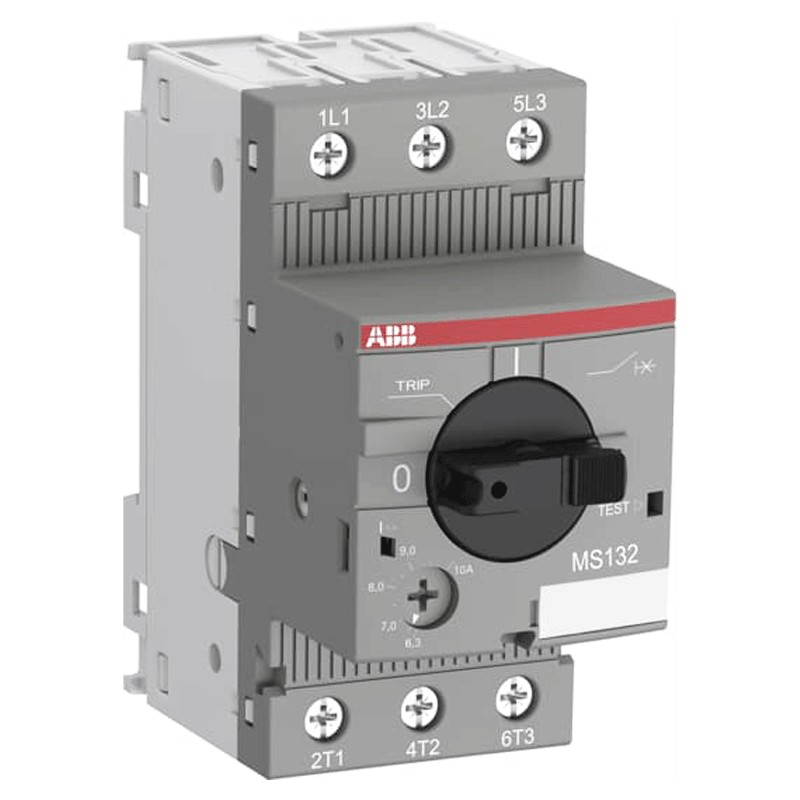

Motor protection switch Abb 0.25-0.40A 100Ka MS132 2.5 modules EP 877 3
ABB EP 877 3
4013614400032
Abb motor protection switch, MS132 series, with the following characteristics
- Rated service short-circuit capacity (230 Vac) 100 kA
- Rated extreme short-circuit capacity (230 Vac) 100 kA
- Rated instantaneous short-circuit current setting 5A
- Setting range 0.25 ... 0.40A
- Rated operating voltage Main circuit 690 Vac - Main circuit 250 Vdc
- Nominal operating current (Ie) 0.4A
- Rated impulse withstand voltage (Uimp) Main circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- 3 poles
- 2.5 modules
Motor protection switch Abb 0.25-0.40A 100Ka MS132 2.5 modules EP 877 3
€60.88
€60.88
Tax included
Tax included
Pay in installments with Klarna
Items Available: 1
The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.
Features:
- Abb Series
- Rated service short-circuit capacity (230 Vac) 100 kA
- Rated extreme short-circuit capacity (230 Vac) 100 kA
- Setting range 0.25 ... 0.40A
- Rated operating current AC-3 (Pe):(400 V) Three-phase 0.09 kW
- Rated operating current AC-3e (Pe):(400V) Three-phase 0.09 kW
- Rated operational voltage Main Circuit 690 Vac - Main Circuit 250 Vdc
- Nominal operating current (Ie) 0.4A
- Rated operating current AC-3 (Ie) 0.4A
- Rated operating current AC-3e (Ie) 0.4A
- Rated operating current DC-5 (Ie) 0.4A
- Rated main circuit frequency 50 Hz/60 Hz
- Rated impulse withstand voltage (Uimp) Main circuit 6 kV
- Rated insulation voltage (Ui) 690 V
- Power loss at rated operating conditions per pole 0.6 W
- 3 poles
- 2.5 modules
- Conventional free air thermal current (Ith) Main Circuit 0.4A
- Degree of protection housing IP20 - Main Circuit Terminals IP10
- Pollution degree 3
- Electrical life 50000 cycles
- Mechanical life 100000 cycles
- Type of Screw Terminals
- Main Circuit Cable Sections
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated
- Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² Flexible with Insulated Ferrule
- Flexible 1/2x 0.75 ... 2.5 mm² Flexible
- Rigid 1/2x 1 ... 4 mm² Rigid
- Main circuit tightening torque 0. ...1.2 Nm
- Stripping length main circuit 9 mm
- Recommended screwdriver Pozidriv 2
- Mounting position Position 1 to 6
DIN rail mounting
- TH35-7.5 (35 x 7.5 mm mounting rail) according to IEC 60715
- TH35-15 (35 x 15 mm Mounting Rail) according to IEC 60715
- Actuator type rotary handle
- Contact position indication ON / OFF / TRIP
- Ambient temperature Operating -25 ... +70 °C - In storage -50 ... +80 °C
- Amperage UL/CSA 0.4 A
- Maximum permissible operating altitude 2000 m
- Shock resistance 11 ms Pulse 25g
- Vibration resistance 5g / 3 ... 150 Hz Width
- Width 45 mm
- Height 90 mm
- Depth 86.75 mm
- Net weight 0.215 kg
There are no reviews
Data sheet
- Type:
- Motor protection
- Modules:
- 2.5
- Poles:
- 3P
- Breaking capacity:
- 100KA
- Amps:
- 0.25-0.40 A
