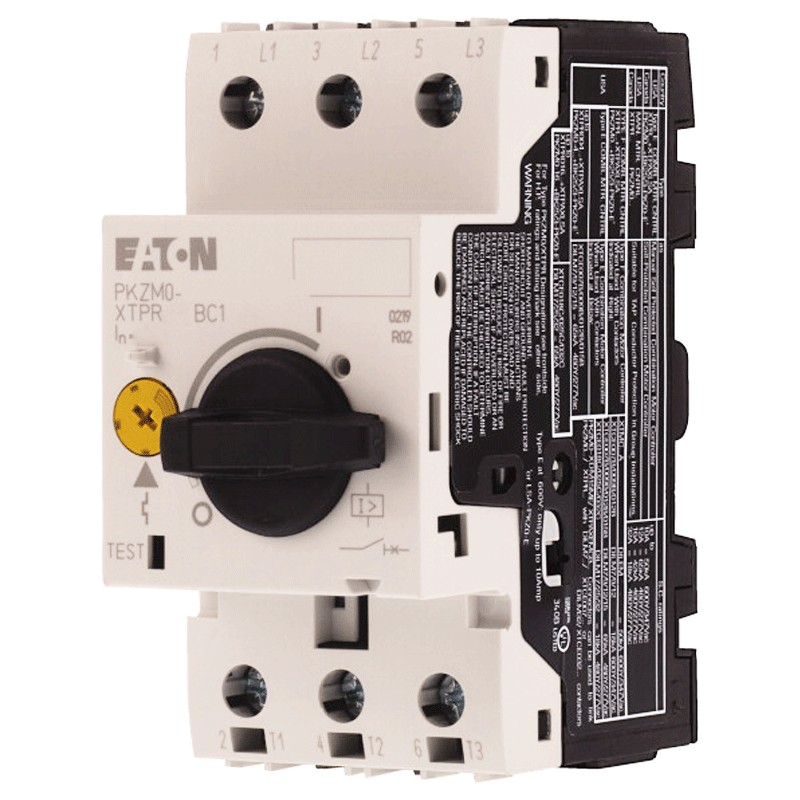

The motor protection switch is installed on the cable that feeds the motor and, when the motor stops due to a mechanical effect or (in three-phase systems) because a phase is missing, it detects an excessive absorption and automatically cuts off the electrical energy, thus safeguarding the integrity of the motor.

Features:

• Eaton series
• 3 poles - size PKZM0
• With adjustable thermal release and instantaneous magnetic release
• Phase failure sensitive
• Screw or snap-in fixing
• With screw terminals
• Dome mounting dimensions 45 mm
• Rated operational voltage Ue 690V
• Degree of protection IP20
• Rated operational current 4A
• Power 1.5 kW
• Overload releases 2.5 - 4A
• Rated frequency 40 - 60 Hz
• Degree of protection Terminations IP00
• Ambient temperature Storage - 40 - 80 °C
• Ambient temperature Open -25 - +55 °C
• Ambient temperature Closed - 25 - 40 °C
• Maximum altitude 2000 mm
• Main wire terminal capacity Screw terminals Solid or stranded 18 - 10 AWG
• Main cable terminal capacity Screw terminals Stripping length 10 mm
• Specified tightening torque for terminal screws Main cable 1.7 Nm
• Specified tightening torque for terminal screws Control circuit cables 1 Nm
• Rated impulse withstand voltage [Uimp] 6000 VAC
• Overvoltage category/ pollution degree III/3
• Height 93 mm
• Width 45 mm Depth 76 mm
• Depth 76 mm
