Cembre yellow female terminals 6.35x0.8mm 100 pieces GF-F608P
CEM GF-F608P
8016692002095

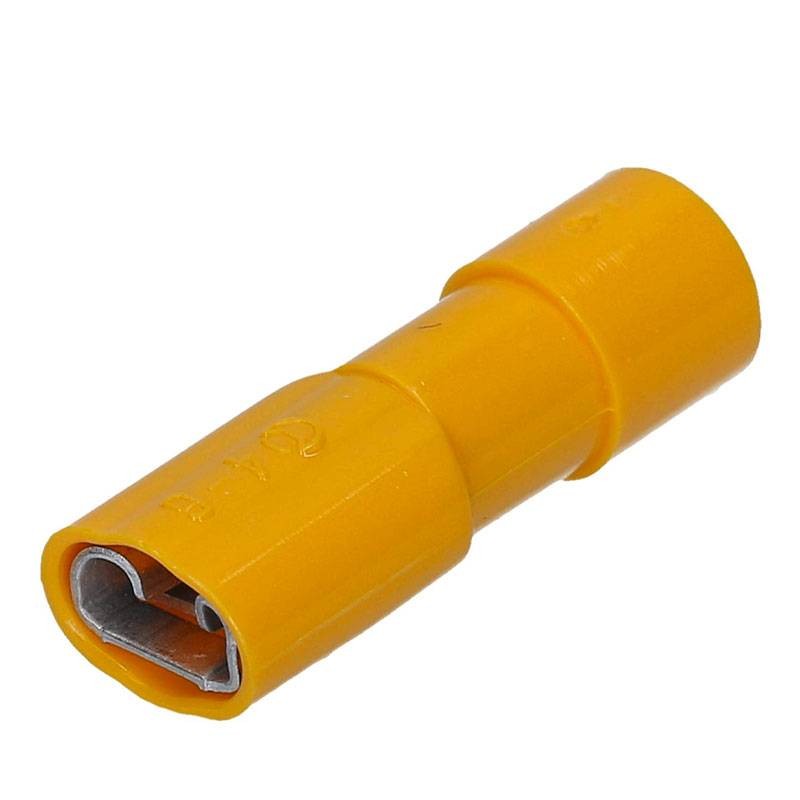

Cembre yellow female flat plug with the following characteristics:
- Dielectric strength is >30 KV/mm
- Volumetric resistivity: >1016/cm
- Material (Body): Electrolytically tinned brass
- Material (partially reinforced): ETP Electrolytically tinned copper
- Material (insulated): polycarbonate
- Minimum operating temperature range 4 °F
- Maximum operating temperature range 239 °F
- Maximum operating temperature range (surge) 266 °F

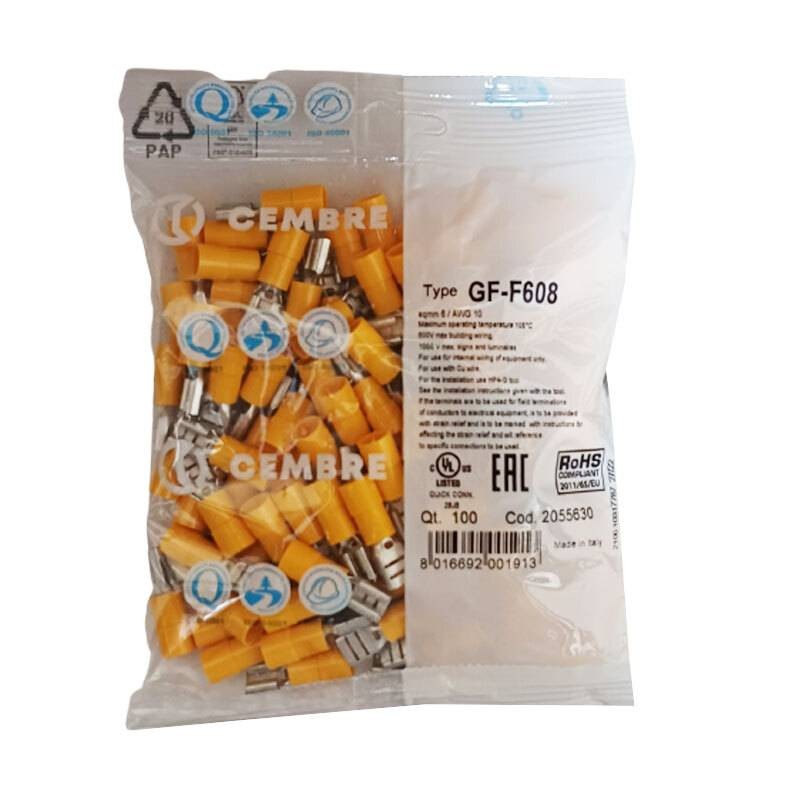

Package of 100 pieces.
€0.21
Items Available: 5600
: 500
Type "KF-"Cember terminals are designed to offer enhanced mechanical and electrical integrity in heavy-duty applications. This is achieved through a copper sheath located between the brass cylinder and the terminal's polyamide insulation.
The funnel shape of this sheath is designed to provide "easy entry" of braided conductors by smoothing the internal path. Then, during crimping, the conductor insulation is integrated into the topping by deforming the copper sheathing around it to maintain the level of "grip" required in applications subject to continuous mechanical vibration (e.g., mobile equipment, vehicles, moving parts).
Data sheet
- Diameter: 6,35X0,8mm
- Type: Terminal lugs
- Cross-Section: 6mmq
