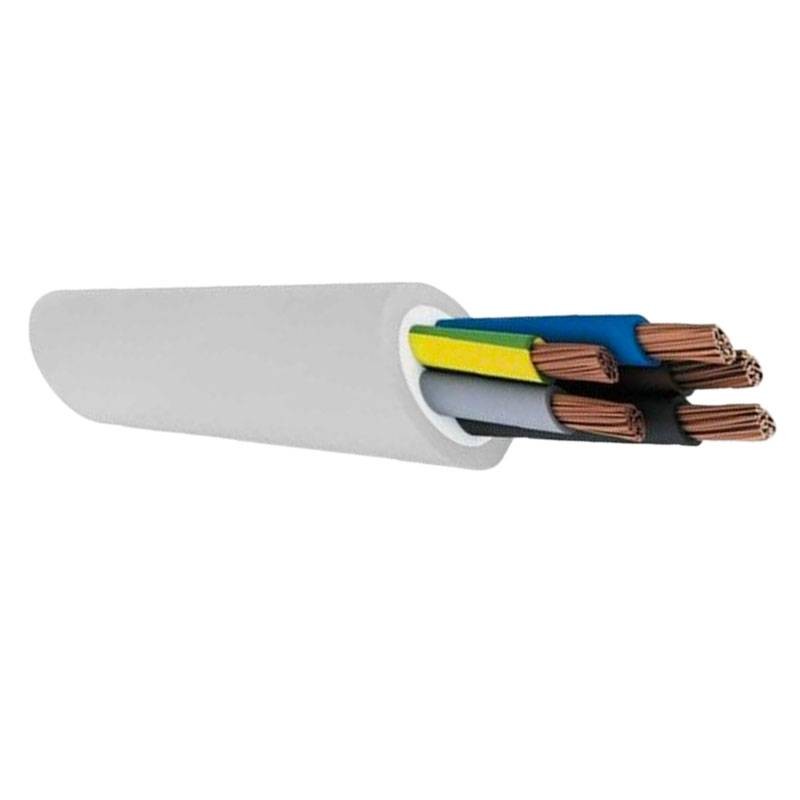

FG16OR16 Double Insulated Flameproof Cable 5G 6mmq Yellow Green FG16R5G6M

Cavi
9X9 FG16R5G6M

FG16OR16 flame-retardant double insulated cable, designed to ensure safety and high performance, ideal for industrial and civil electrical installations. Thanks to its flame-retardant sheathing and UV resistance, it is perfect for indoor and outdoor installations, even in humid and fire-risk environments, with the following characteristics:

  • Section: 5G 6 sq. mm

  • Conductor diameter: 3 mm

  • Insulation thickness: 0.7 mm

  • Sheath thickness: 1.8 mm

  • Outer diameter: 18.9 mm

  • Electrical resistance: 3.30 ohm/km

  • Current carrying capacity: 44A in tube in air - 54A in air

  • Rated voltage: 0.6/1 kV

  • Suitable for: Fixed laying in air, conduit, pipe and underground installation

The selling price is per meter.

Sold by 100-metre hank only.

The producers of our cables are:

  • Baldassari cavi
  • Icel
  • La Triveneta
  • Prysmian
The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Depending on the length and/or diameter of the cable, transport may require the use of reels. This option involves an additional cost, which will be communicated upon completion of the order according to specific requirements.
Do you have questions about this product or did you not find what you were looking for? Ask us!
FG16OR16 Double Insulated Flameproof Cable 5G 6mmq Yellow Green FG16R5G6M
€5.67
€5.67

The minimum purchase order quantity for the product is 100.

€5.67
Tax included
Calculate shipping cost
Items Available: 300
Further availability of the manufacturer
€5.67

The minimum purchase order quantity for the product is 100.

Buy it within and receive it from Monday, 19 January
Two-year warranty
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

FG16OR16 cable: reliable, versatile and high-performance

CPR-certified reliability and safety

Thanks to its composition, the cable limits the spread of flames and reduces the emission of toxic fumes, making it ideal for installations in fire-hazardous environments.

Suitable for indoor and outdoor installations

Thanks to its AD7 protection rating, it can be installed in wet environments, inside civil or industrial buildings and structures, offering versatility and high performance even in harsh conditions.

Excellent electrical performance

With a maximum electrical resistance of 3.30 ohm/km and a current carrying capacity of up to 44A in air tube, the cable ensures efficiency and reliability in all types of installations.

Technical Specifications FG16OR16 Flameproof Cable

Feature Value
Conductor Red copper, flexible formation, class 5
Insulation Rubber, G16 quality
Sheathing PVC, R16 quality
Color Gray
Rated voltage Uo/U 600/1000 V a.c. - 1500 V d.c.
Maximum voltage Um 1200 V a.c. - 1800 V d.c. also to earth
Industrial test voltage 4000 V
Maximum operating temperature 90°C
Minimum operating temperature -15°C
Maximum short-circuit temperature 250°C
Minimum laying temperature 0°C
Recommended minimum bending radius 4 times the diameter of the cable
Maximum recommended tensile stress 50 N/mm² of copper cross section
Section 5G 4 mmq
Conductor diameter 3 mm
Insulation thickness 0.7 mm
Sheath thickness 1.8 mm
Outer diameter 18.9 mm
Electrical resistance 3.30 ohm/km
Current flow rate 54A in air, 44A in tube in air
Rated voltage 0.6/1 kV

There are no reviews

Data sheet

Colour:
Grey
Cross-Section:
6mmq
With yellow/green:
Yes
Number of cables:
5
