Bticino Green Up Home Wallbox 22kW 32A Mode 2 and 3 three-phase 057037
LEG 057037
3414972586474
The Bticino Green Up Home 22kW 32A Wallbox is a three-phase charging station designed for electric vehicles, with a power of 22 kW (32A). Suitable for both domestic installations and small commercial installations, it supports charging in Mode 2 and Mode 3. This station is equipped with Wi-Fi for remote management via the HOME + CONTROL app.
-
Charging mode: Mode 2 and Mode 3
-
Sockets: 1 x Type 2s, 1 x Type 2P+T Green Up Access
-
Robustness grade: IK10 (impact resistant)
-
Operating temperature: -30°C to +50°C
-
Wi-Fi: Included for remote management via app + Bluetooth
-

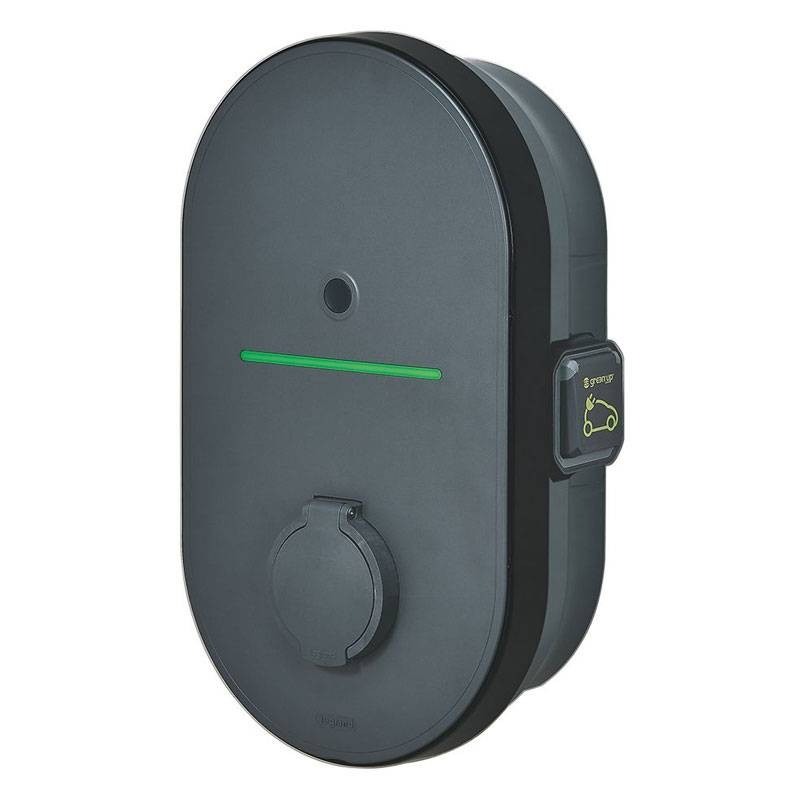

LED bar for charging status monitoring (green, blue, red)
-

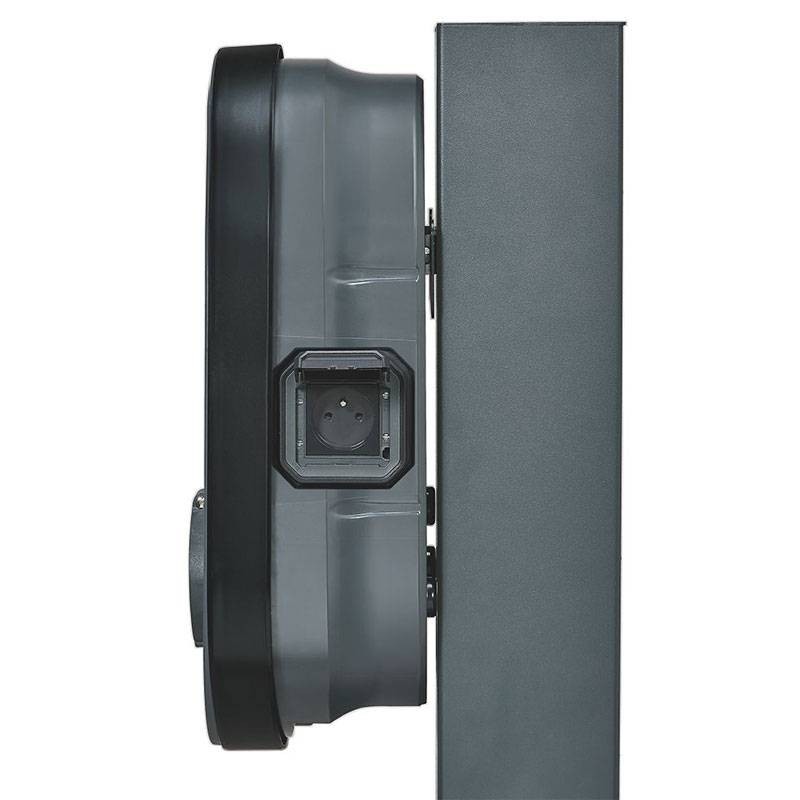

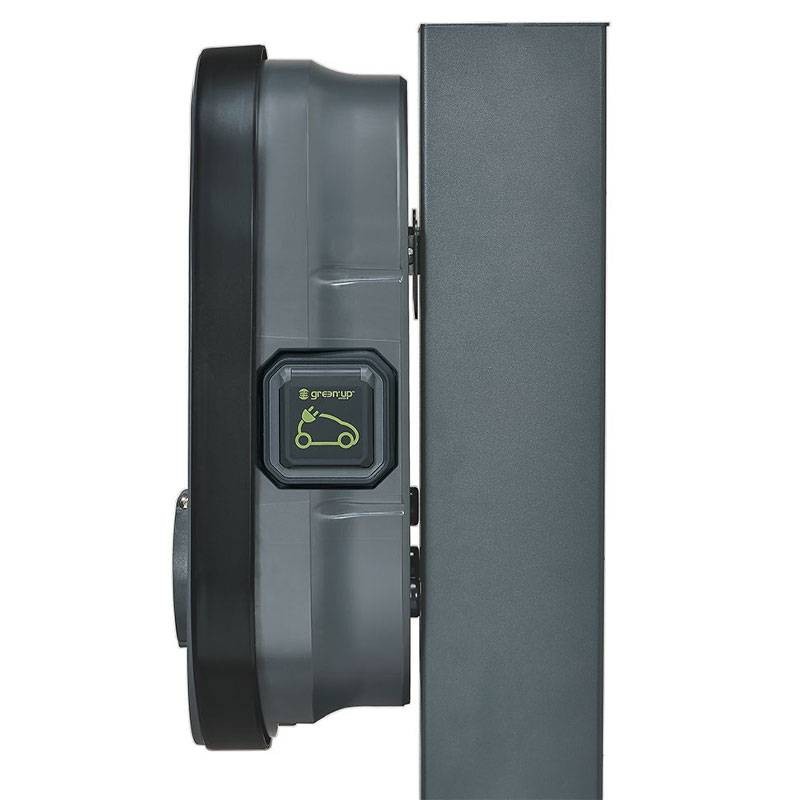

Easy installation on wall or pedestal (accessory 057057)
-
Protection grade: IP44 (suitable for indoor and outdoor environments)
€979.97
Out of stock
Incoming
Frequently bought together
Wallbox Bticino Green Up Home: Fast and Safe Charging
The Green Up Home 22kW Wallbox is designed to charge electric vehicles quickly and efficiently thanks to its 22 kW (32A) power. With Mode 3, which ensures a secure and reliable connection, this station is ideal for home use or small commercial installations. It is compatible with vehicles using the Type 2s plug, very common in modern electric vehicles.
Remote Charging Management via HOME + CONTROL App
The Green Up Home Wallbox is compatible with the HOME + CONTROL app, available for Android and iOS devices. With this app, you can:
-
Remotely control charging (start and stop charging)
-
Schedule charging for specific times or days
-
Monitor real-time and historical consumption
-
Receive notifications on charging status changes
The app also allows automatic firmware updates via Wi-Fi or Ethernet, to ensure you have the latest improvements and features
Advanced Safety and Integrated Protection
The Green Up Home 22kW Wallbox is equipped with RDC-DD differential protection at 6 mA, providing additional protection against electric shocks during charging. The station must be equipped with a type A or F differential at 30 mA upstream for optimal protection. Additionally, overcurrent protection is ensured by circuit breakers with various capacities (16A, 20A, 25A, 32A) with a C curve, depending on the station configuration.
LED Bar for Visual Monitoring of Charging Status
The station is equipped with an LED bar that clearly indicates the charging status:
-
Green: the station is ready for charging
-
Blue: the vehicle is charging
-
Red: an error has occurred
The light intensity of the bar can be customized via the HOME + CONTROL app, for optimal visibility.
Versatile Installation Suitable for Any Environment
The Green Up Home 22kW Wallbox can be easily installed on a wall or on a pedestal (accessory 057057). Its IP44 resistance makes it perfect for installation in both indoor and outdoor environments such as garages, gardens, or parking lots. The polycarbonate casing makes it resistant to weather and impacts.
| General Data | |
|---|---|
| Brand | Legrand |
| Reference Standard | IEC 61851-IEC 62191-IEC 62196 |
| Voltage | 400V |
| Nominal Frequency | 50-60Hz |
| Power (W) | 22kW |
| Protection Degree | IP55 |

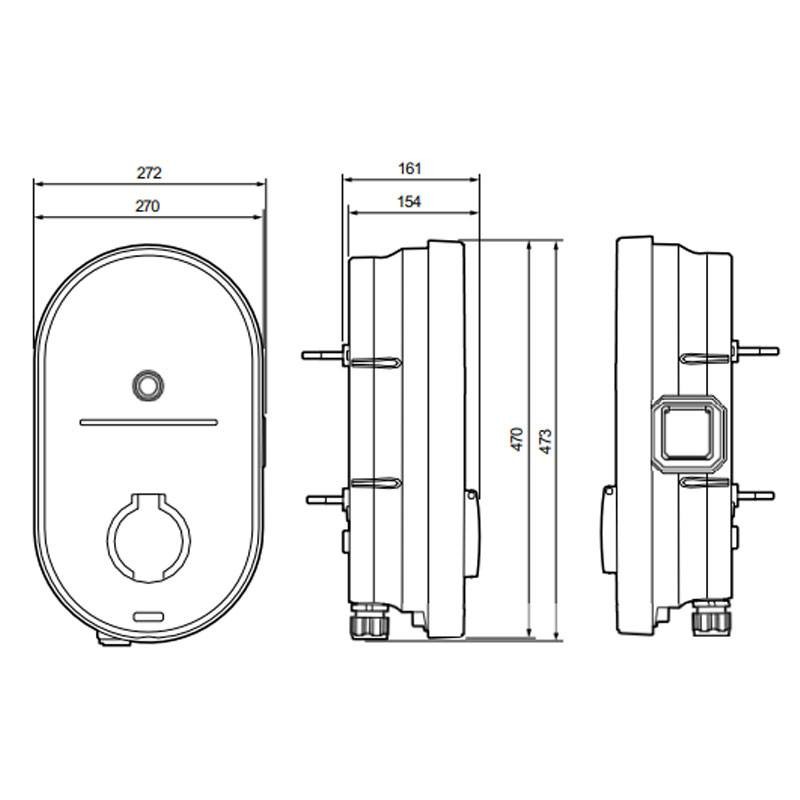

| Dimensions | 270x473x161mm |
| Height | 473mm |
| Width | 270mm |
| Depth | 161mm |
| System Type | AC |
| Insertion | Type 2s Sockets / 2P + T Access |
| Robustness Degree | IK10 |
| Operating Temperature | (-30°)-(+50°)C |
| Connection Type connected / traditional | Connected |
| Wi-Fi | Yes |
| Weight (g) | 4400g |
| Operating Voltage (UE) determined at 20°C | 400 V~ |
| Impulse Voltage (Uimp) | 4 kV |
| Insulation Voltage (Ui) | 500 V |
| Frequency (fn) | 50 Hz/60 Hz |
| Assigned Voltage | 400 V |
| Single Voltage Tolerance (V) | 195 V - 265 V |
| Conditional Short Circuit | 4.5 kA / 6 kA / 10 kA depending on the upstream protection device |
| Allowable Thermal Stress in C/C | 16,000 A |
| Idle Consumption | < 3.5 W |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 22 KW
- Model: Without cable
- Connection: Three-phase
