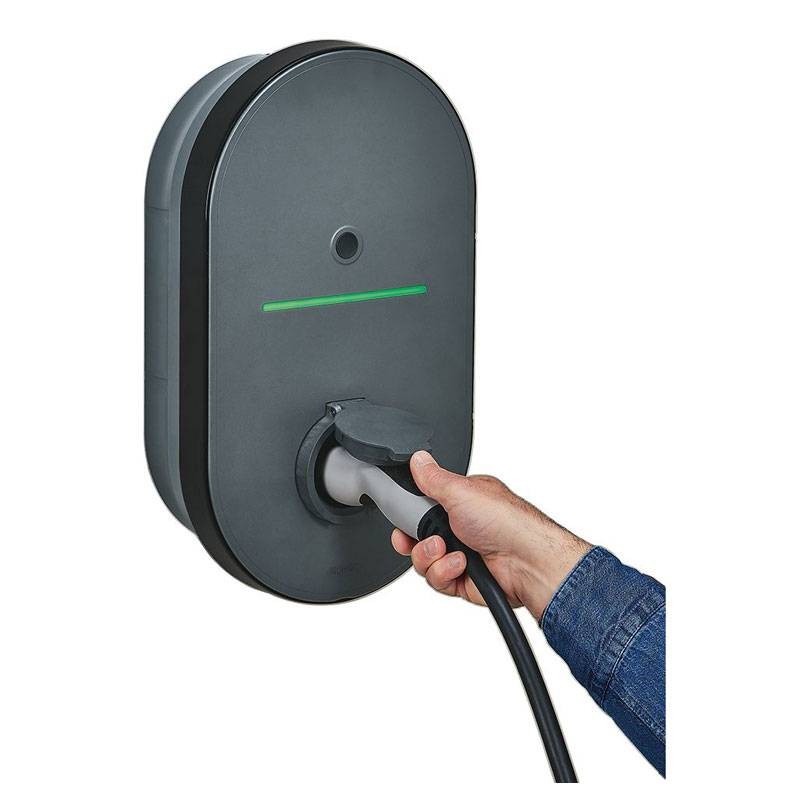

Bticino Green Up Home Wallbox 22kW 32A Mode 3 three-phase 057022
LEG 057022
3414972586290
The Bticino Green Up Home 22kW 32A Wallbox is the ideal three-phase charging station for your home or small commercial installation. With Mode 3 charging, it is designed for electric vehicles, featuring simple installation and management via the HOME + CONTROL app for a convenient and safe charging experience. Charging cable not included.
-
Charging power: 22 kW (32A)
-
Charging mode: Mode 3
-
Sockets: 1 x Type 2s
-
Communication: Wi-Fi (2.4 GHz, up to 100 m in open field), Bluetooth BLE (range 10 m)
-
Enclosure: Polycarbonate, IP44 resistance (suitable for outdoor use)
-
Management app: HOME + CONTROL (available for Android/iOS)
-
Residual current protection: Integrated RDC-DD 6 mA
-
Overcurrent protection: Circuit breaker 16A, 20A, 25A, 32A with curve C (not included)
-
Installation: Wall-mounted or on pedestal (accessory 057057)
€900.12
Items Available: 6
Frequently bought together
Fast and powerful charging with Wallbox Green Up Home
The Wallbox Green Up Home 22kW offers fast and powerful charging with a capacity of 22 kW (32A), perfect for ensuring quick charging times for your electric vehicle. Being a three-phase station, it is ideal for homes or small businesses that require higher charging power. The station is compatible with the Type 2s socket, very common in the latest generation electric vehicles.
Control charging remotely via the HOME + CONTROL app
The Wallbox Green Up Home 22kW allows you to manage charging intelligently and remotely via the HOME + CONTROL app, which offers several practical functions:
-
Remote control of charging (Start and Stop)
-
Scheduling charging for specific times or days
-
Real-time and historical monitoring of electrical consumption
-
Status notifications, to always be updated on the charging
Thanks to Bluetooth or Wi-Fi connectivity, firmware can be manually updated via smartphone, while automatic updates are possible via Wi-Fi or Ethernet connection.
Advanced protection and safety
The Wallbox Green Up Home is equipped with an integrated 6 mA RDC-DD differential detector, which offers additional protection during vehicle charging. Furthermore, the use of an upstream 30 mA Type A or F differential is mandatory, for complete protection against electrical risks. Overcurrent protection is ensured by automatic switches with different capacities (16A, 20A, 25A, 32A), to suit every installation need.

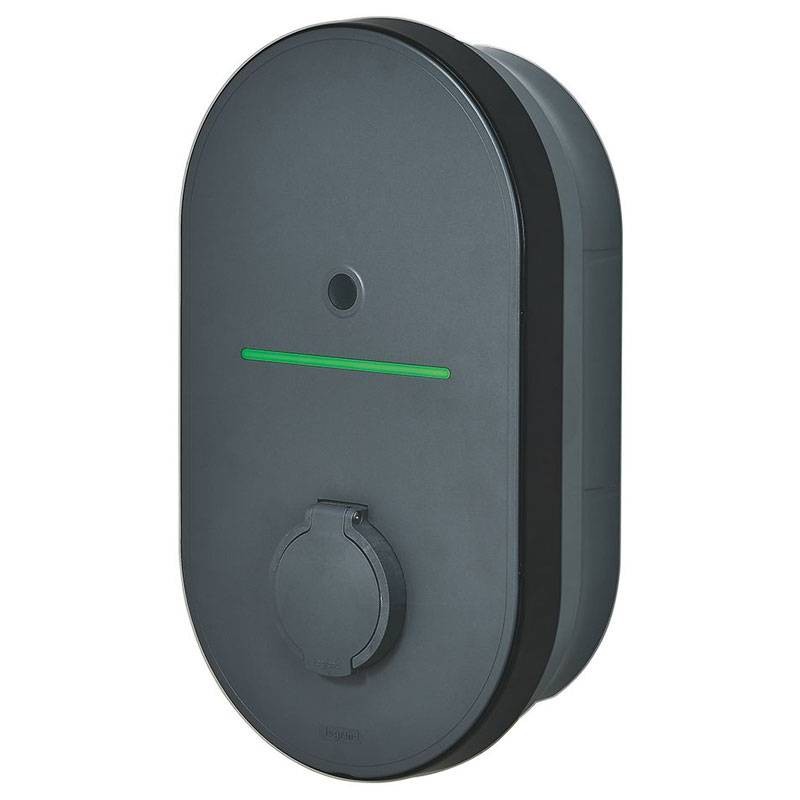

LED bar for real-time visual monitoring
The station is equipped with a three-color LED bar indicating the charging status:
-
Green: ready for charging
-
Blue: charging
-
Red: error
The brightness of the LED bar can be customized via the HOME + CONTROL app, to optimize visibility according to lighting conditions.
Simple and versatile installation

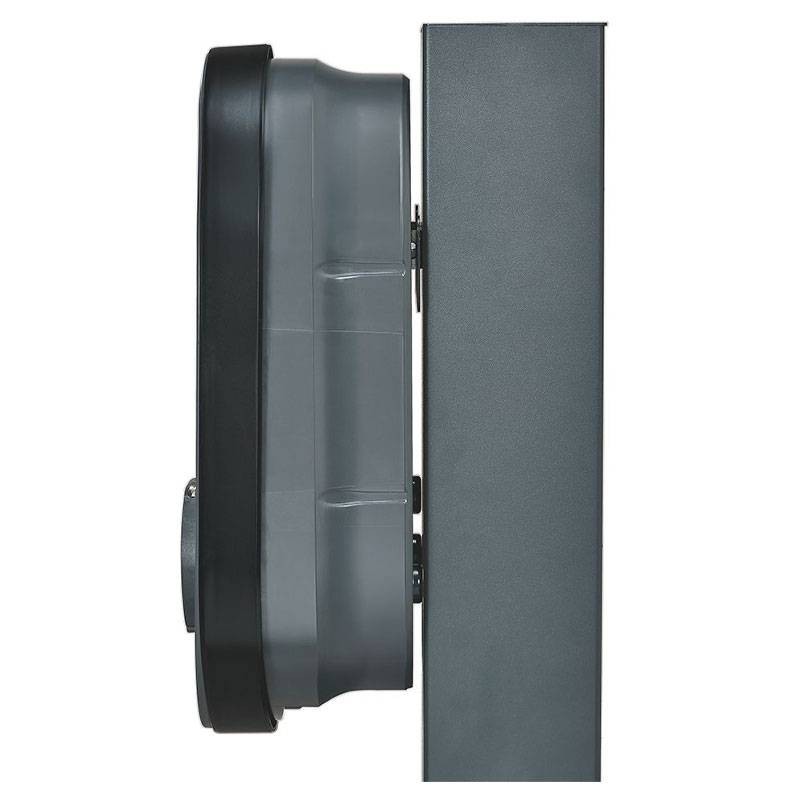

The Wallbox Green Up Home 22kW can be easily installed on the wall or floor (with accessory pedestal 057057), perfectly adapting to various environments. The station is designed with a polycarbonate enclosure, making it weather-resistant, allowing installation in both indoor and outdoor environments, with an IP44 protection rating.
| General data | |
|---|---|
| Brand | Legrand |
| Reference standard | IEC 61851-IEC 62191-IEC 62196 |
| Voltage | 400V |
| Nominal frequency | 50-60Hz |
| Power (W) | 22kW |
| Protection degree | IP55 |

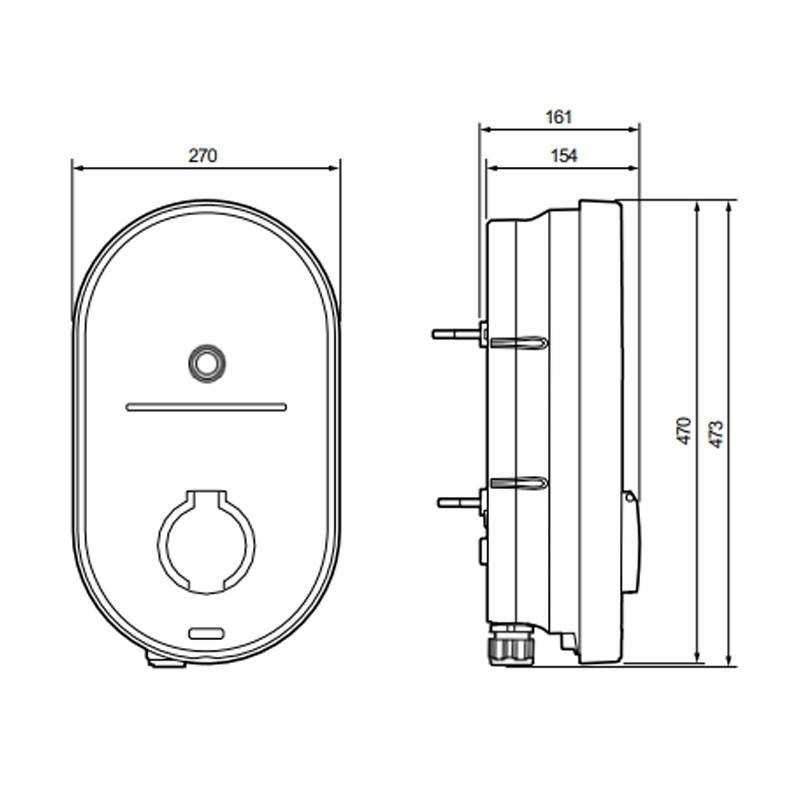

| Dimensions | 270x473x161mm |
| Height | 473mm |
| Width | 270mm |
| Depth | 161mm |
| System type | AC |
| Insertion | Type 2s socket |
| Robustness degree | IK10 |
| Operating temperature | (-30°)-(+50°)C |
| Connection type connected / traditional | Connected |
| Wi-Fi | Yes |
| Weight (g) | 3900g |
| Operating voltage (UE) determined at 20°C | 400 V~ |
| Impulse voltage (Uimp) | 4 kV |
| Insulation voltage (Ui) | 500 V |
| Frequency (fn) | 50 Hz/60 Hz |
| Rated voltage | 400 V |
| Single voltage tolerance (V) | 195 V - 265 V |
| Conditional short-circuit | 4.5 kA / 6 kA / 10 kA depending on the upstream protection device |
| Admissible thermal stress in C/C | 16,000 A² |
| No-load consumption | < 3.5 W |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 22 KW
- Model: Without cable
- Connection: Three-phase
