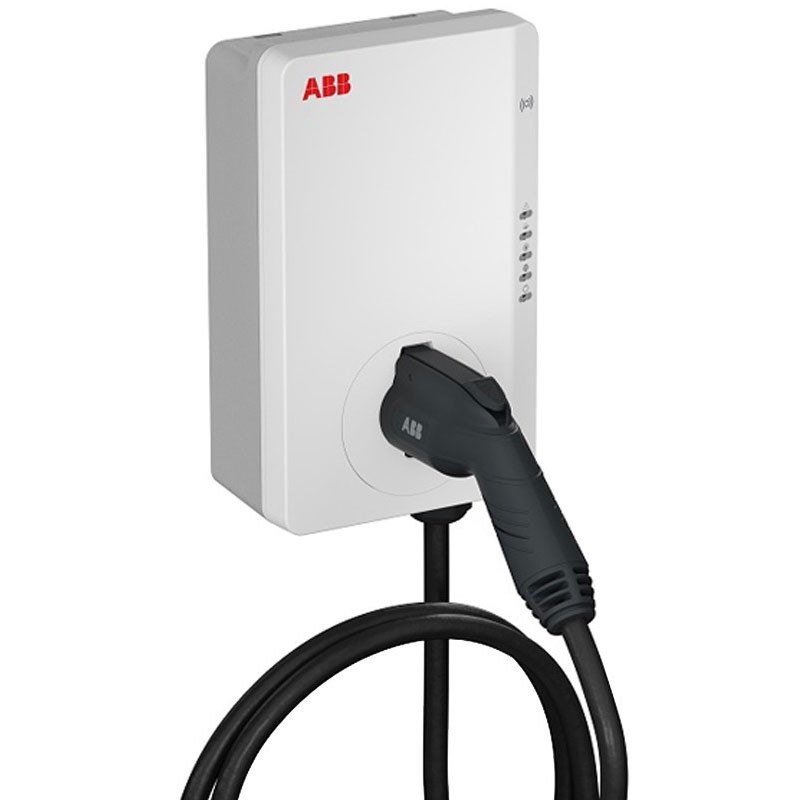

Abb Terra AC Wallbox 22KW EV charging station with T2 RFID 4G three-phase cable
ABB 6AGC082157
8719874450959
The ABB Terra AC EV Charging station 22 kW three-phase with integrated Type 2 cable (5 m length), RFID reader, 4G/3G module and precision meter, is an advanced charging column for residential, business and commercial applications.
Designed for safe and smart charging of electric vehicles, it supports OCPP 1.6 protocol and can be remotely monitored and managed via ChargerSync App and web portal.
- Power rating: 22 kW (three-phase AC)
- Output voltage: 320-480 V (three-phase)
- Maximum current: up to 32 A
- Integrated AC cable: Type 2, length 5 meters
- IntegratedRFID reader
- Advanced connectivity: Wi-Fi - Ethernet - Bluetooth - Modbus - 4G/3G
- OCPP 1.6 protocol for connection with management and payment platforms
- Configuration and management via: ChargerSync App - ChargerSync Web Portal
€913.12
Items Available: 5
: 2
Frequently bought together
ABB Terra AC Three-phase Charging Station: Smart & Energy Efficient
Equipped with a high-precision meter, the charging station is prepared for dynamic load management via communication with external energy meters (e.g., ABB EQ Meter), allowing loads to be balanced according to energy availability and reducing operating costs.
Integrated safety and security
Provides maximum protection through advanced systems:
- PE conductor continuity monitoring
- Overcurrent protection
- Overvoltage and undervoltage protection
- Ground fault protection (including DC current)
- Atmospheric and network overvoltage protection
Abb Charging Station access management and authentication
- Access via RFID card
- Remote authentication via ChargerSync App
- Customization of user access for public or private use
Abb charging station technical specifications
| Feature | Description |
|---|---|
| Cable length | 5 meters |
| Power output | Nominal 22 kW |
| Output Voltage (Uout) | AC three-phase 320 ... 480 V |
| Maximum output current (Iout) | AC three-phase 32 A |
| Connection power | Nominal 22 kW |
| Input voltage (Uin) | AC three-phase 380 ... 420 V |
| Input current | 32 A three-phase |
| Frequency (f) | 50...60 Hz |
| Number of phases | 3 |
| Connection configuration | TT, TN |
| Number RCDs electric vehicle equipment | Residual current monitor |
| Number circuit breakers | Integrated circuit breaker |
| Noise suppression | Included |
| Overvoltage category | III |
| Overload protection | Overcurrent protection to 40 A |
| Cross-sectional area | 6 ... 6 mm² |
| Ambient temperature | In operation: -30 ... +50 °C In storage: -50 ... +80 °C |
| Maximum operating altitude | 2000 meters |
| Communication interface | Wi-Fi, Ethernet, Bluetooth, Modbus, 4G |
| Communication protocol | Version 1.6 |
| Load management method | OCPP - Based |
| Authentication method | RFID, Application |
| Sale | Free |
| Type of energy meter | AC |
| Enclosure Type | Indoor, outdoor |
| Mounting type | Wall mounting |
| Enclosure material | Plastic |
| Degree of protection | According to IEC 60529 IP54 |
| Impact resistance rating | IK08 |
| Technical Information | - DC residual current detection - Contactor soldering detection - Networkable via LAN and Wi-Fi - Long-term evolution (LTE) - Integrated static load management - Suitable for dynamic load management - With display - Operation and configuration via app - Export of charging logs |
| Product width | 195 mm |
| Product depth | 320 mm |
| Product height | 110 mm |
| Product net weight | 5.3 kg |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 22 KW
- Model: With cable
- Connection: Three-phase
