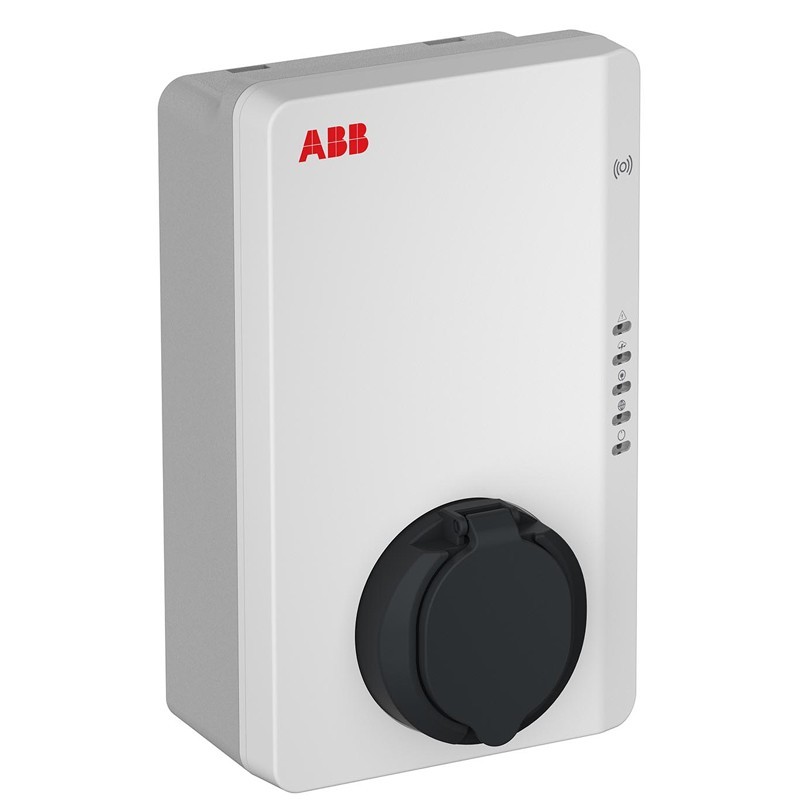

Abb Terra AC Wallbox 22KW EV Charging Station with Three Phase RFID T2 Receptacle
ABB 6AGC082589
8719874451291
The ABB Terra AC Charging station 22 kW three-phase with Type 2 outlet and integrated RFID reader is a powerful and reliable smart charging solution designed for residential, commercial and business environments. Compliant with Charging Mode 3 - Level 2, it offers maximum compatibility with three-phase building electrical systems, ensuring high performance even with high-power electric vehicles.
With advanced connectivity(Wi-Fi, Ethernet, Bluetooth, Modbus) and high-precision metering, this Wallbox enables dynamic energy management and intelligent charging control.
- Power rating: 22 kW
- Power supply: three-phase
- Type 2 socket (T2)
- Charging modes: mode 3, level 2
- Integrated RFID reader: secure access with cards
- Highly accurate internal meter
- Compatibility with intelligent energy management systems (EMS/BMS)
- Wall installation (Wallbox)
- Intelligent load management
€749.97
Items Available: 28
: 4
Frequently bought together
ABB Terra AC Charging station: Power Management and Maximum Protection
Dynamic power management
The integrated precision meter enables flexible adjustment of power output according to availability and system needs. The smart load function ensures that charging takes place as efficiently as possible, reducing consumption peaks and optimizing costs.
Maximum safety and security
In addition to certification to international standards, the ABB Wallbox is equipped with advanced safety systems to protect the vehicle and electrical system:
- PE continuity monitoring
- Overcurrent protection
- Overvoltage and undervoltage protection
- Ground fault detection (AC/DC)
- Integrated surge protection
Technical specifications of the Charging station Abb
| Feature | Description |
|---|---|
| Power output | Nominal 22 kW |
| Output Voltage (Uout) | AC three-phase 320 ... 480 V |
| Maximum output current (Iout) | AC three-phase 32 A |
| Connection power | Nominal 22 kW |
| Input voltage (Uin) | AC three-phase 380 ... 420 V |
| Input current | 32 A three-phase |
| Frequency (f) | 50...60 Hz |
| Number of phases | 3 |
| Connection configuration | TT, TN |
| Number RCDs electric vehicle equipment | Residual current monitor |
| Number circuit breakers | Integrated circuit breaker |
| Noise suppression | Included |
| Overvoltage category | III |
| Overload protection | Overcurrent protection to 40 A |
| Cross-sectional area | 6 ... 6 mm² |
| Ambient temperature | In operation: -30 ... +50 °C In storage: -50 ... +80 °C |
| Maximum operating altitude | 2000 meters |
| Communication interface | WiFi, Ethernet, Bluetooth, Modbus |
| Communication protocol | Version 1.6 |
| Load management method | OCPP - Based |
| Authentication method | RFID, Application |
| Sale | Free |
| Type of energy meter | AC |
| Enclosure Type | Indoor, outdoor |
| Mounting type | Wall mounting |
| Enclosure material | Plastic |
| Degree of protection | According to IEC 60529 IP54 |
| Impact resistance rating | IK08 |
| Technical Information | - DC residual current detection - Contactor soldering detection - Networkable via LAN and Wi-Fi - Long-term evolution (LTE) - Integrated static load management - Suitable for dynamic load management - With display - Operation and configuration via app - Export of charging logs |
| Product width | 195 mm |
| Product depth | 320 mm |
| Product height | 110 mm |
| Product net weight | 2.7 kg |
venditore serio e affidabile, consigliatissimo!!"
ottimo rapporto qualità prezzo da valutare per acquisti futuri
Scarsa assistenza ABB e manuali poco esaurienti e non conformi a quanto publicizzato
Data sheet
- Type: Electric Vehicles Charging
- Power: 22 KW
- Model: Without cable
- Connection: Three-phase
