Bticino GREEN UP ACCESS recharge kit for GUPACC vehicle recharge
BTI GUPACC
8005543535677
Bticino recharging kit for residential use, allows the creation of an infrastructure for recharging electric and hybrid vehicles in mode 2 (or mode 1) using recharging cables.
Included in the package 1 thermomagnetic circuit breaker 16 A, curve C, 30 mA, type F (art. GN8813F16).
€218.84
Items Available: 5
: 3
Frequently bought together
Power supply directly from the switchboard: 1 dedicated line 3x2,5 mm2, protected with a magnetothermal switch (one line per socket).

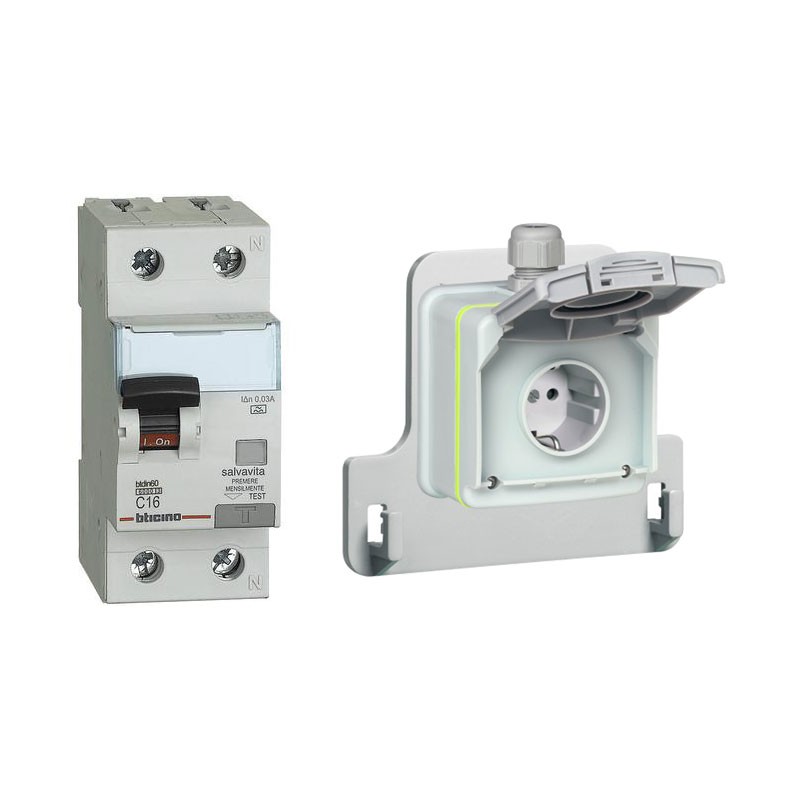

The kit contains:
- 1 Greenup Access plastic socket, with closing flap, IP 66 - IK 08 - 25 kW / h - 230 V - 8h, 6 mm2 with screw terminals, according to IEC 60884-1, NF C 61-314,VDE 620-1 (German standard)
- 1 base for hanging the vehicle charging cable
- 1 thermomagnetic circuit breaker 16A, curve C, 30 mA, type F (art. GN8813F16).
The use of an overvoltage protection device is recommended (art. F10AP2). Recommended installation height: between 0.80 and 1.20 m from the floor.
Characteristics:
- Reference standard IEC 61851-1
- Voltage 230Vac
- Current In 16A
- Differential current Idn 30mA
- Power (W) 25kW
- Degree of protection IP66
- Height 117mm
- Width 180mm
- Depth 76mm
- Maximum cable section 3x25mmq
- IT Series Green'up.
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
