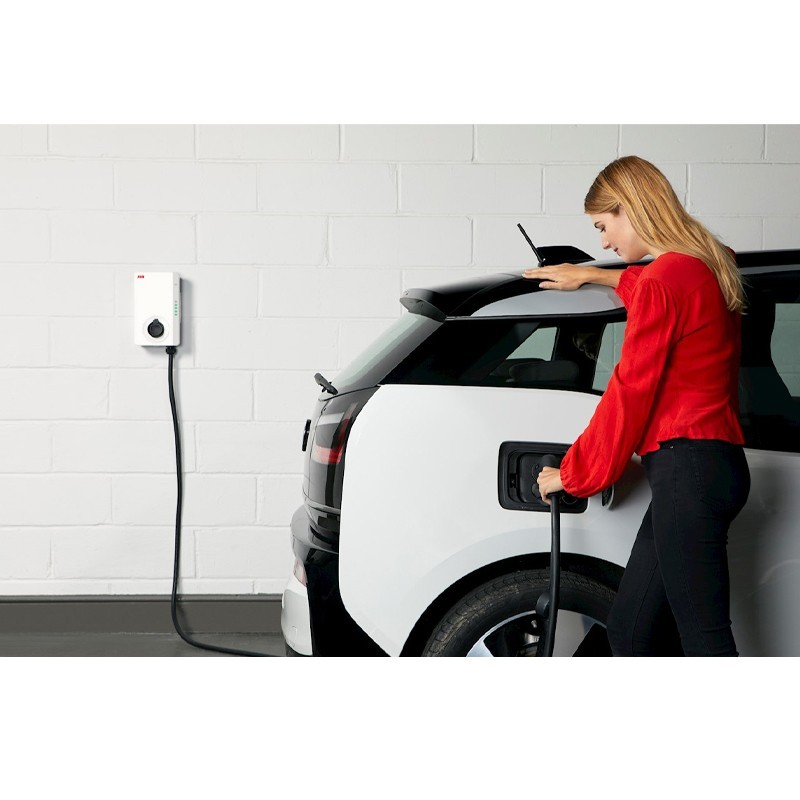

Abb Terra AC Wallbox 7.4KW EV charging station with cable and T2 RFID connector
ABB 6AGC082155
8719874450935
The ABB Terra AC Charging station 7.4 kW, complete with 5-meter cable with Type 2 connector and integrated RFID reader, is a smart and secure charging station designed for residential or business use. Compliant with Charging Mode 3, Level 2, it offers high performance in terms of efficiency, connectivity and advanced energy management.
With compatibility with home and building electrical systems and integration with Bluetooth, Wi-Fi, Ethernet and Modbus, it is a versatile solution for every electric mobility need.
- Power rating: 7.4 kW single-phase
- Maximum current: 32 A
- Integrated 5-meter cable with T2 connector (Type 2)
- Charging modes: Mode 3 - Level 2
- Integrated RFID reader for charging authorization
- High-precision meter for consumption monitoring and management
- Modbus protocol for integration into energy management systems (EMS/BMS)
- Available connections: Wi-Fi - Ethernet - Bluetooth - Modbus RTU/TCP
€648.69
Items Available: 28
: 4
Frequently bought together
Abb Terra AC Charging station: Maximum protection and smart charging
Maximum protection built in
The ABB wallbox is designed with advanced electrical protection systems to ensure safe charging:
- Protective conductor (PE) continuity monitoring
- Overcurrent protection
- Overvoltage and undervoltage protection
- Ground fault protection (including DC faults)
- Integrated overvoltage protection
Intelligent load management
With precision metering and Modbus connectivity, the ABB Wallbox can be integrated with advanced energy management systems, adjusting charging power according to availability and energy rates for maximum savings and efficiency.
Technical Specifications of the Abb Charging station
| Feature | Description |
|---|---|
| Power Output | Nominal 7 kW |
| Output Voltage (Uout) | Single-phase AC 184 ... 276 V |
| Maximum output current (Iout) | Single-phase AC 32 A |
| Connection power | Nominal 7 kW |
| Input Voltage (Uin) | Single-phase AC 184 ... 276 V |
| Input current | Single-phase 32 A |
| Frequency (f) | 50 to 60 Hz |
| Number of phases | 1 |
| Connection configuration | TT, TN |
| Number RCDs electric vehicle equipment | Residual current monitor |
| Number circuit breakers | Integrated circuit breaker |
| Noise suppression | Included |
| Overvoltage category | III |
| Overload protection | Overcurrent protection to 40 A |
| Cross-sectional area | 6 ... 6 mm² |
| Ambient temperature | In operation: -30 ... +50 °C In storage: -50 ... +80 °C |
| Maximum operating altitude | 2000 meters |
| Communication interface | WiFi, Ethernet, Bluetooth, Modbus |
| Communication protocol | Version 1.6 |
| Load management method | OCPP - Based |
| Authentication method | RFID, Application |
| Type of energy meter | AC |
| Enclosure Type | Indoor, outdoor |
| Mounting type | Wall mounting |
| Enclosure material | Plastic |
| Degree of protection | According to IEC 60529 IP54 |
| Impact resistance rating | IK08 |
| Technical Information | - DC residual current detection - Contactor soldering detection - Networkable via LAN and Wi-Fi - Long-term evolution (LTE) - Integrated static load management - Suitable for dynamic load management - With display - Operation and configuration via app - Export of charging logs |
| Product width | 195 mm |
| Product depth | 320 mm |
| Product height | 110 mm |
| Product net weight | 4.1 kg |
Buon prodotto avrei aggiunto in supporto per il cavo per una questione estetica
Good, easy to install and run. No issues with it. reliable
Soddisfatto e consiglio a tutti di acquistare da loro
wallbox ABB al momento nessun problema facile da montare
Data sheet
- Type: Electric Vehicles Charging
- Power: 7/7,4 KW
- Model: With cable
- Connection: Single-phase
