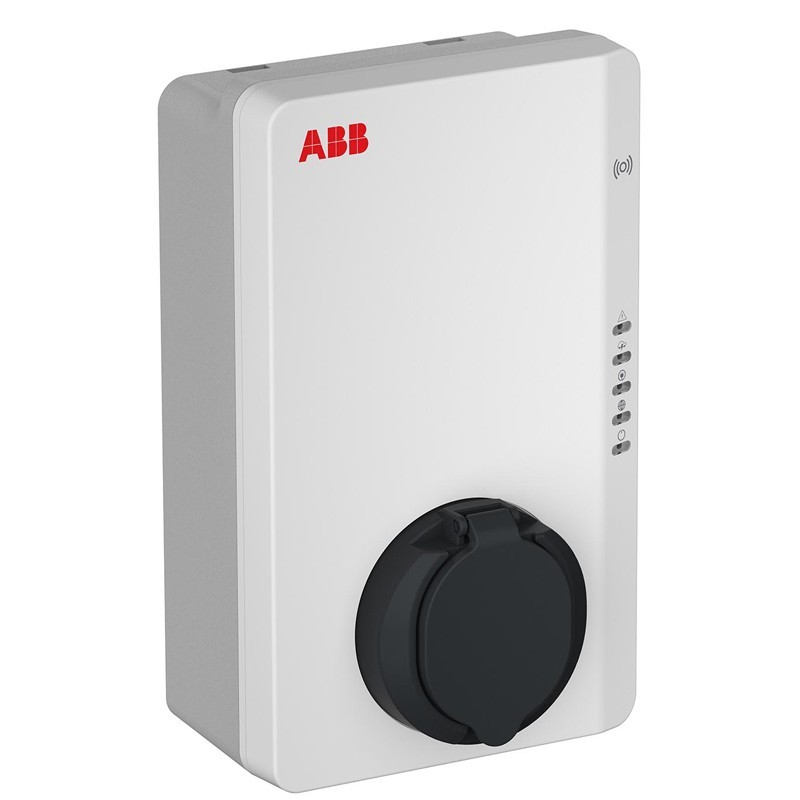

Terra AC Wallbox Abb EV charging station 7.4KW 1 socket T2 RFID 4G
ABB 6AGC105906
8719874452861
The ABB Terra AC Charging station 7.4 kW single-phase, Type 2 socket with shutter, integrated RFID reader and 4G connectivity, is designed to offer smart, secure and flexible charging in residential and business settings.
Compatible with dynamic load management systems, this wallbox complies with Charging Mode 3 - Level 2 and can be managed in full autonomy via the ChargerSync app.
- Power rating: 7.4 kW (single-phase)
- Type 2 socket (T2) with protective shutter
- Integrated RFID reader
- Integrated high-precision meter for energy management
- Charging modes: Mode 3 - Level 2
- Connectivity: Ethernet - Wi-Fi - Bluetooth - 4G/3G
- Compatibility with ABB EQ Meter external energy meter for dynamic load management
- OCPP 1.6 protocol for integration with management, billing or public grid systems
€619.97
Items Available: 7
: 4
Frequently bought together
ABB Terra AC Charging station Protection and Remote Control
Integrated safety protections
- PE conductor continuity monitoring
- Overcurrent protection
- Overvoltage and undervoltage protection
- AC/DC ground fault protection
- Atmospheric surge protection
Smart functionality and remote control
Comprehensive management via:
- ChargerSync App (iOS/Android)
- ChargerSync Web Portal
Features:
- Simplified initial setup
- User authentication via RFID or App
- Consumption visualization
- Charging status and history
Technical specifications of the Abb Charging station
| Feature | Description |
|---|---|
| Power output | Nominal 7 kW |
| Output Voltage (Uout) | Single-phase AC 184 ... 276 V |
| Maximum Output Current (Iout) | AC single-phase 32 A |
| Connection power | Nominal 7 kW |
| Input Voltage (Uin) | Single-phase AC 184 ... 276 V |
| Input current | Single-phase 32 A |
| Frequency (f) | 50 to 60 Hz |
| Number of phases | 1 |
| Number RCDs electric vehicle equipment | Residual current monitor |
| Number miniature circuit breakers (MCBs) | Integrated circuit breaker |
| Surge suppression | Included |
| Surge voltage category | III |
| Overload protection | Overcurrent protection to 40 A |
| Cross-sectional area | 6 ... 6 mm² |
| Maximum allowable operating altitude | 2000 meters |
| Communication | Wi-Fi, Ethernet, Bluetooth, Modbus, 4G |
| Communication protocol | Version 1.6 |
| Load management method | OCPP - Based |
| Authentication method | RFID, Application |
| Sale | Free |
| Type of energy meter | Alternating current |
| Mounting Type | Wall mounting |
| Housing material | Plastic |
| Degree of protection | According to IEC 60529 IP54 |
| Impact resistance rating | IK08 |
| Technical Information | - DC residual current detection - Contactor soldering detection - Networkable via LAN and Wi-Fi - Long-term evolution (LTE) - Integrated static load management - Suitable for dynamic load management - With display - Operation and configuration via app - Export of charging logs |
| Net product width | 195 mm |
| Product net depth/length | 320 mm |
| Net product height | 110 mm |
| Product net weight | 2.7 kg |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 7/7,4 KW
- Model: Without cable
- Connection: Single-phase
