Bticino Green Up Home Wallbox 7.4 kW 32A Mode 2 and 3 057035

Bticino
Bticino
LEG 057035 3414972586443

The Bticino Green Up Home Wallbox 7.4 kW 32A is the ideal single-phase charging station for domestic use, offering safe, fast, and smart charging for your electric vehicle. Perfect for indoor and outdoor environments, it can be easily installed on a wall or on a metal stand (accessory pedestal 057057). Thanks to its compatibility with Charging Modes 2 and 3, it is a versatile and efficient choice for every type of need.

  • Charging power: 7.4 kW (32A)

  • Charging modes: Mode 2 and Mode 3

  • Sockets: 1 x Type 2s, 1 x Type 2P+T Green Up Access

  • Communication: Wi-Fi (2.4 GHz, up to 100 m in open field), Bluetooth BLE (range 10 m)

  • Enclosure: Polycarbonate, IP44 resistance (suitable for outdoor use)

  • Management app: HOME + CONTROL (available for Android/iOS)

  • Residual current protection: Integrated RDC-DD 6 mA

  • Overcurrent protection: Circuit breaker 16A, 20A, 25A, 32A with curve C

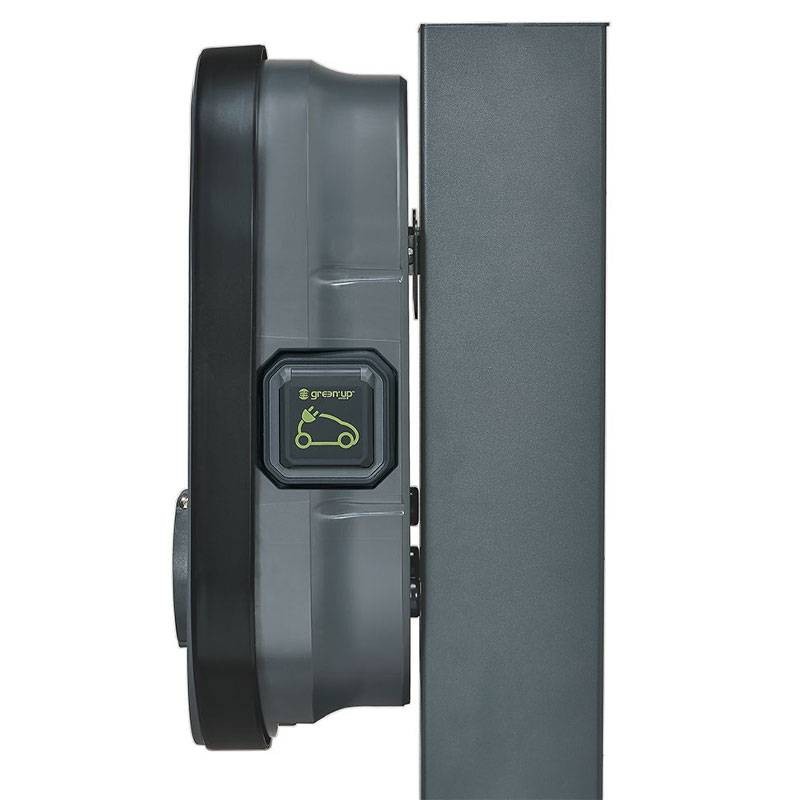

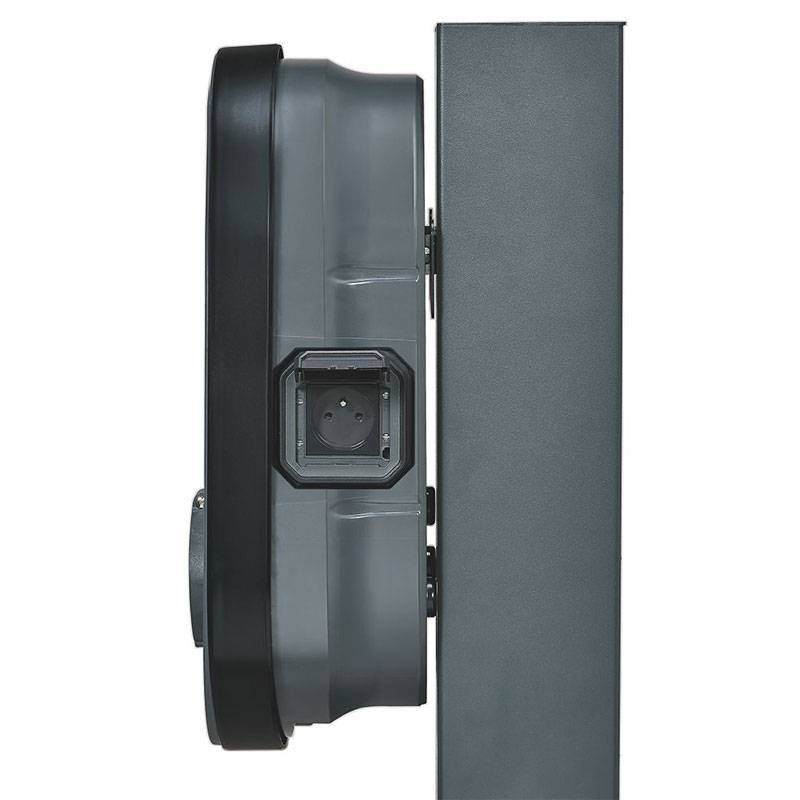

  • Installation: On wall or on pedestal (accessory 057057)

  • wifi
  • bluetooth
Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Green Up Home Wallbox 7.4 kW 32A Mode 2 and 3 057035
€756.39
€756.39

€756.39
Tax included
Calculate shipping cost
Items Available: 2
Further availability of the manufacturer
€756.39

Buy it within and receive it from Thursday, 26 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Wallbox Green Up Home Mode 2 and 3 for your fast charging

The Wallbox Green Up Home 7.4 kW 32A is a modern and versatile charging station, designed to offer safe and fast charging for your electric vehicle. Thanks to the Mode 2 and Mode 3 options, it is compatible with a wide range of vehicles and allows optimal charging management. It can be easily installed on a wall or on a pedestal, both indoors and outdoors. Its compact and durable design, combined with the ability to manage it remotely via an app, makes it an excellent choice for residential users or small commercial installations.

  • Charging power: 7.4 kW (32A) in Mode 2 and Mode 3

  • Sockets: 1 x Type 2s and 1 x Type 2P+T Green Up Access

  • Local communication via Bluetooth and remote via Wi-Fi or Ethernet

  • Control via HOME + CONTROL App (Android/iOS)

  • LED bar for charging status (green, blue, red)

  • Suitable for wall or floor installation (with accessory pedestal 057057)

Advanced management via HOME + CONTROL App

With the HOME + CONTROL app, available for Android and iOS devices, you can easily manage your charging station. The main functions include:

  • Remote control: start and stop charging whenever you want

  • Charging scheduling: set the start time for charging

  • Consumption report: monitor real-time and historical electricity consumption

  • Status notifications: receive updates on any changes in the charging status

Safe and protected charging

The Wallbox Green Up Home is equipped with an integrated RDC-DD differential protection at 6 mA, offering advanced protection during the charging process. It is necessary to install a type A or F differential at 30 mA upstream, to ensure maximum safety. Additionally, overcurrent protection is ensured by automatic switches (16A, 20A, 25A, or 32A with curve C), which protect the charging station from damage caused by overloads.

LED bar for real-time monitoring

The station is equipped with an LED bar that clearly indicates the charging status. The LED bar colors are:

  • Green: the station is ready for charging

  • Blue: the vehicle is charging

  • Red: an error has occurred

The LED bar brightness can be adjusted via the HOME + CONTROL app, for optimal visibility in any condition.

Flexible installation suitable for any environment

The Wallbox Green Up Home can be easily installed both on a wall and on a pedestal (accessory 057057), offering a versatile solution for any space requirement. Thanks to its polycarbonate enclosure, it is weather-resistant and can be used both indoors and outdoors (with IP44 protection).

General data
Brand Legrand
Reference Standard IEC 61851-IEC 62191-IEC 62196
Voltage 230Vac
Nominal frequency 50-60Hz
Power (W) 7.4kW
Protection degree IP55

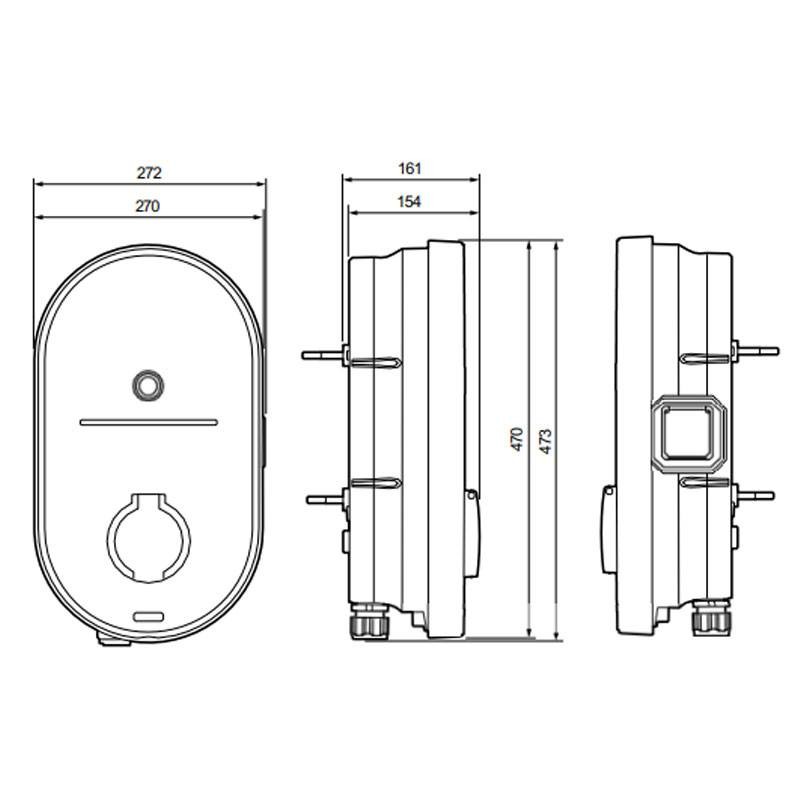

Dimensions 270x473x161mm
Height 473mm
Width 270mm
Depth 161mm
System type AC
Insertion Type 2s / 2P + T Access sockets
Robustness degree IK10
Operating temperature (-30°)-(+50°)C
Connection type connected / traditional Connected
Wi-Fi Yes
Weight (g) 4000g

There are no reviews

Data sheet

Type:
Electric Vehicles Charging
Power:
7/7,4 KW
Model:
Without cable
Connection:
Single-phase
