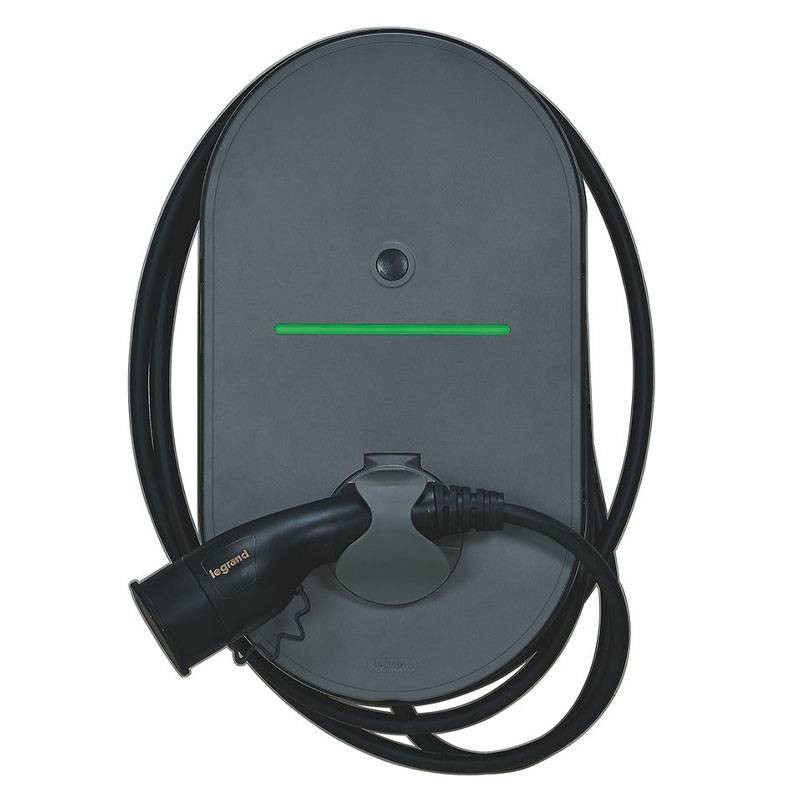

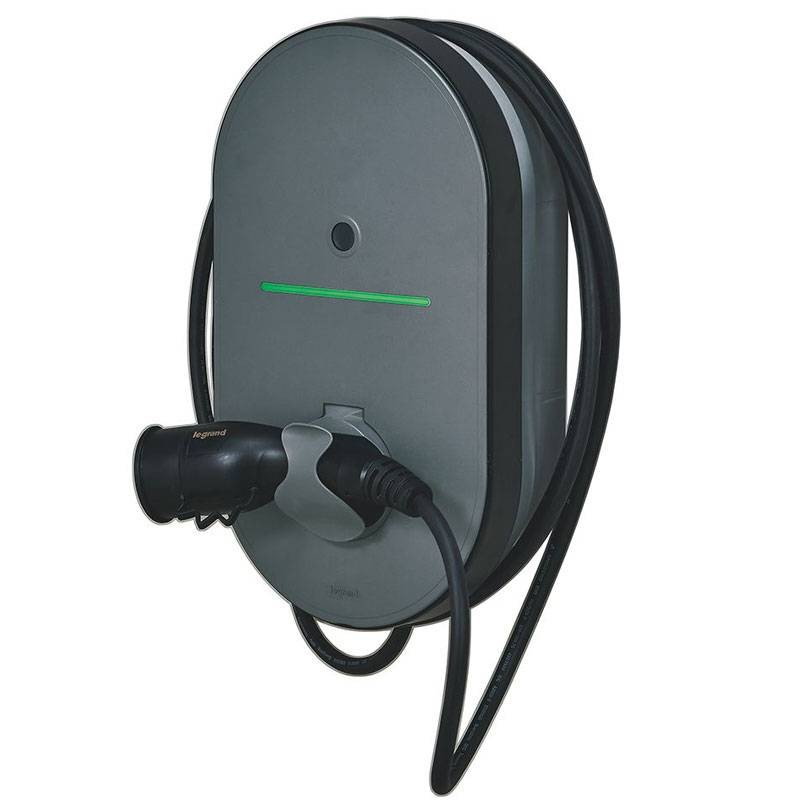

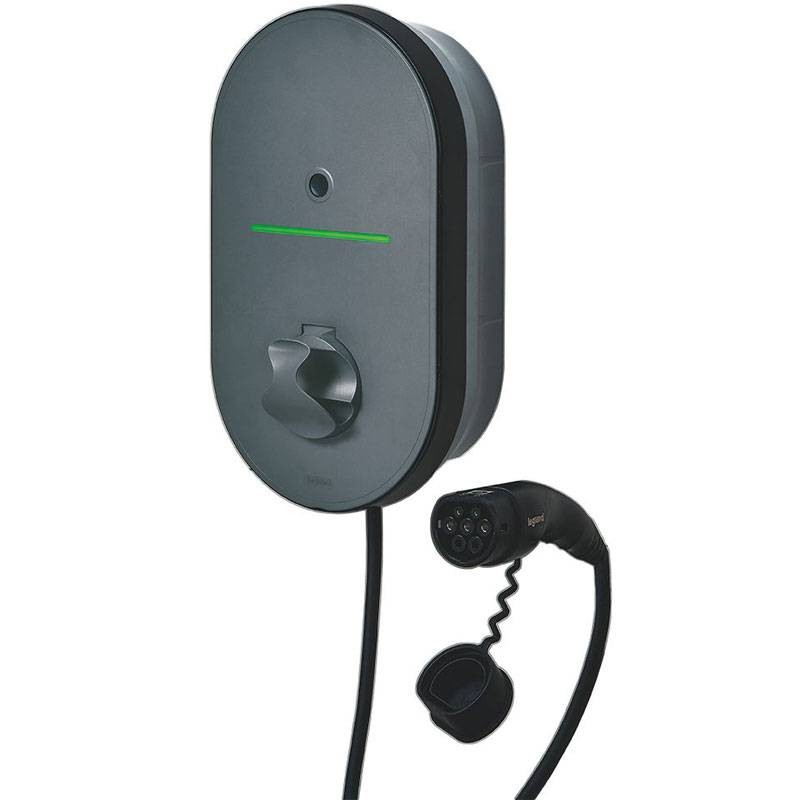

Bticino Green Up Home Wallbox 22kW 32A Mode 3 three-phase with cable 057042
LEG 057042
3414972586535
The Bticino Green Up Home Wallbox 22kW 32A Mode 3 is a three-phase charging station ideal for electric vehicles, designed for domestic installation or small commercial setups. With a power of 22 kW and a 5-metre charging cable with Type 2 plug included, it is the perfect solution for fast and safe charging, easy to configure via the HOME + CONTROL app.
-
Charging power: 22 kW (32A) in Mode 3
-
Charging cable included: 5 metres with Type 2 plug
-
Sockets: 1 x Type 2s and 1 x Type 2P+T Green Up Access
-
Protection rating: IP55 (dust and water spray resistant)
-
Communication via Wi-Fi or Bluetooth for local and remote management
-
Wall or pedestal installation (accessory 057057)
-
Robustness rating: IK10 (impact resistant)
€1,030.78
Items Available: 5
: 2
Frequently bought together
Powerful and Fast Charging with Wallbox Green Up Home with Included Cable
The Wallbox Green Up Home 22kW is equipped with a powerful 22 kW (32A) capacity, designed to quickly charge electric vehicles in Mode 3. The inclusion of the 5-meter cable with Type 2 plug allows you to easily connect to your vehicle without the need to purchase a separate cable. Thanks to its three-phase charging capability, it is ideal for home installation or small commercial setups requiring high power.
Manage Charging with the HOME + CONTROL App
The charging station is equipped with Wi-Fi for remote control via the HOME + CONTROL app, available for Android and iOS devices. The main functions offered by the app include:
-
Remote control: start and stop charging whenever you want
-
Charging scheduling: set the start time of charging
-
Consumption monitoring: view real-time and historical consumption
-
Status notifications: receive updates on the charging status
Additionally, the app allows for automatic firmware updates via Wi-Fi or Ethernet to keep the station updated with the latest features.
Advanced Safety and Protection
The Wallbox Green Up Home 22kW is designed with a 6 mA RDC-DD differential protection, ensuring greater safety during charging. It is also necessary to use a 30 mA type A or F differential upstream to protect the system from any anomalies. Overcurrent protection is ensured thanks to automatic switches with variable capacities (16A, 20A, 25A, or 32A with curve C), which adapt to the specific configuration of the station.
LED Bar for Charging Status Monitoring
The charging station is equipped with a three-color LED bar, visible on the front panel, indicating the operating status of the charging:
-
Green: the station is ready for charging
-
Blue: the vehicle is charging
-
Red: an error has occurred
The brightness of the LED bar can be adjusted via the HOME + CONTROL app to optimize visibility in any situation.
Simple and Durable Installation
The Wallbox Green Up Home 22kW can be easily installed on a wall or on a pedestal (accessory 057057). Thanks to its polycarbonate enclosure and IP55 protection rating, it is suitable for installation in both indoor and outdoor environments, such as garages, gardens, or parking lots. It is designed to withstand dust, water, and impacts, offering long-lasting durability and safety.
| General Data | |
|---|---|
| Brand | Legrand |
| Reference Standard | IEC 61851-IEC 62191-IEC 62196 |
| Voltage | 400V |
| Nominal Frequency | 50-60Hz |
| Power (W) | 22kW |
| Protection Rating | IP55 |

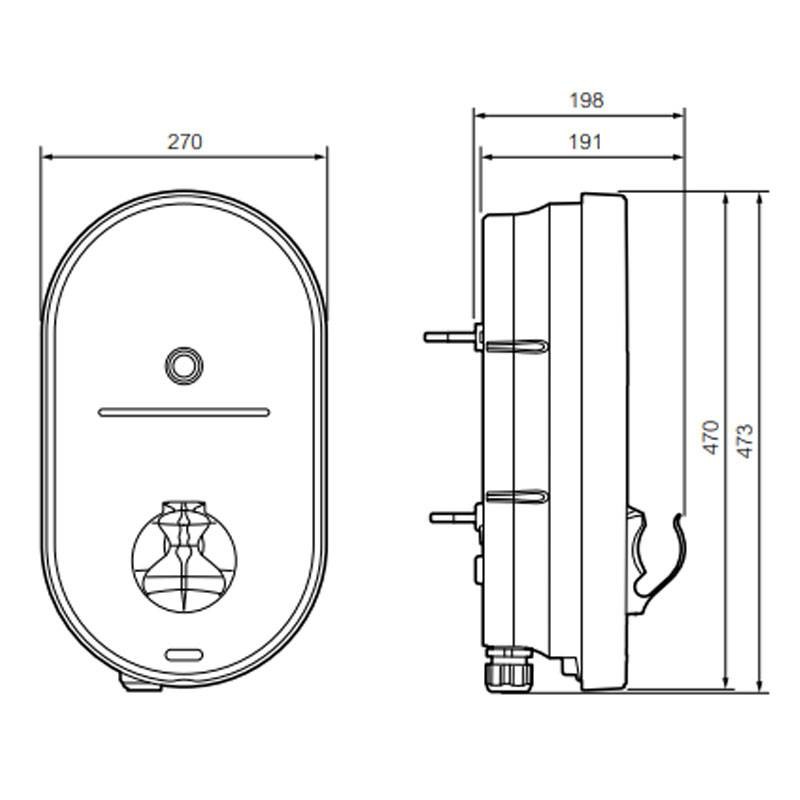

| Height | 473mm |
| Width | 270mm |
| Depth | 198mm |
| System Type | AC |
| Insertion | Type 2 Plug |
| Robustness Rating | IK10 |
| Operating Temperature | (-30°)-(+50°)C |
| Connection Type connected / traditional | Connected |
| Wi-Fi | Yes |
| Operating Voltage (UE) determined at 20°C | 400 V~ |
| Impulse Voltage (Uimp) | 4 kV |
| Insulation Voltage (Ui) | 500 V |
| Frequency (fn) | 50 Hz/60 Hz |
| Rated Voltage | 400 V |
| Single Voltage Tolerance (V) | 195 V - 265 V |
| Conditional Short Circuit | 4.5 kA / 6 kA / 10 kA depending on the upstream protection device |
| Admissible Thermal Stress in C/C | 16,000 A |
| No-load Consumption | < 3.5 W |
There are no reviews
Data sheet
- Type: Electric Vehicles Charging
- Power: 22 KW
- Model: With cable
- Connection: Three-phase
