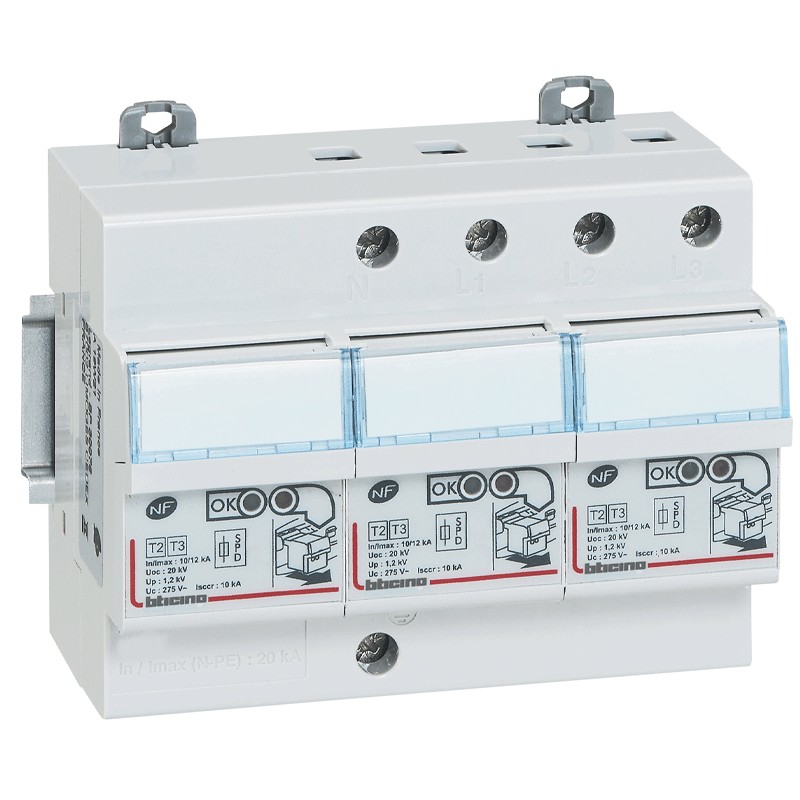

Bticino self-protected surge arrester 10kA 3P+N F10HP4
BTI F10HP4
8005543667231
Bticino self-protected surge arrester (SPD):
- Current In 5kA
- Maximum discharge current 10kA
- Modules 6
- Poles 3P+N
Accessory Replacement cartridge for self-protected SPD code F10HPS.
€273.15
Out of stock
Incoming
Features:
- Number of poles 4
- Power supply network 230/400V
- Grounding system TT, TNS
- Protection modes L-N, L/N-PE
- Maximum continuous operating voltage (Uc) L-N, L-PE: 275V~ N-PE: 255V
- Frequency 50/60 Hz
- Type 2 (T2) - Type 3 (T3)Rated current (In) 5kA
- Maximum discharge current (Imax) 10 kProtection level (Up) L/N-PE = 1.2 kV L-N = 1kV
- Combined wave test (Uoc) 20 kV
- Temporary overvoltages (HV power supply faults) 1,200 V (holding mode)
- Associated Disconnect Switch Integrated
- Short-circuit current withstand (Icc) 10 kA
- Subsequent current quenching capacity Ifi (N-PE) 100A
- Residual current (Ipe) zeroNumber of ports 1
- Pollution level IP20
- Number of modules 6
- Operating temperature From -10°C to +40°C
- Storage temperature From -20°C to +70°C
- Dimensions Height 86mm - Width 106.8mm - Depth 68mm
There are no reviews
Data sheet
- Modules: 6
- Poles: 3P+N
- Maximum current: 10KA
- Model: AC
- Circuit Protections: Surge protectors
